Dymax Single Pole UV Light-Curing System Lightguide
Dymax Single Pole UV Light-Curing System Lightguide
SKU:ULT-c94a58
Achieve precise and rapid UV curing with the Dymax Single Pole Lightguide. Compatible with Dymax systems, this durable accessory ensures controlled curing of UV adhesives.
Regular price
$109.99
Regular price
Sale price
$109.99
Unit price
per
Initiate Order
Dymax Single Pole UV Light-Curing System Lightguide
$109.99
Quantity: 1
Claim Your Seller Account
Dymax Single Pole UV Light-Curing System Lightguide
$109.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

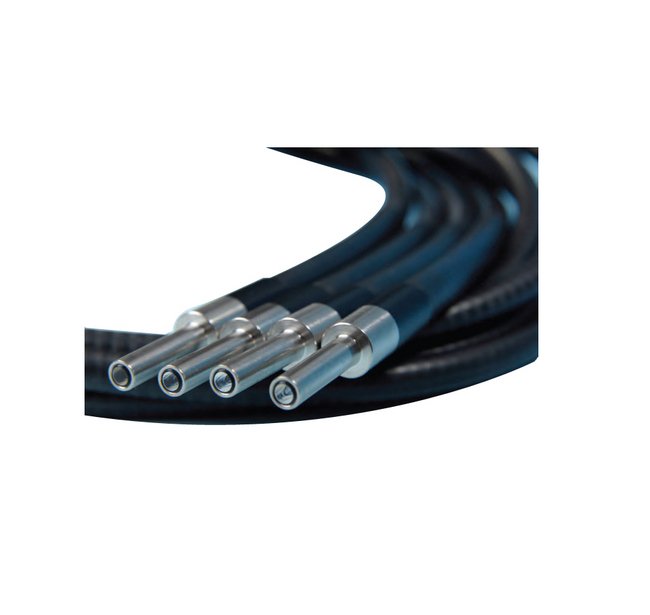

The Dymax Single Pole UV Light-Curing System Lightguide is a versatile accessory designed for precise and rapid UV curing applications in spot-curing systems. This liquid-filled light guide features a non-toxic and transparent core, ensuring controlled curing of UV adhesives, coatings, and sealants. With high-quality quartz glass ends and metal spiral tubing encased in a protective plastic sleeve, this lightguide guarantees durability and efficient light transmission. Compatible with various Dymax systems, this 8mm x 1m light guide delivers a typical initial intensity of 13.0 W/cm², meeting rigorous industry standards for reliable performance and exceptional curing results.
Product Specifications
Accessories 0

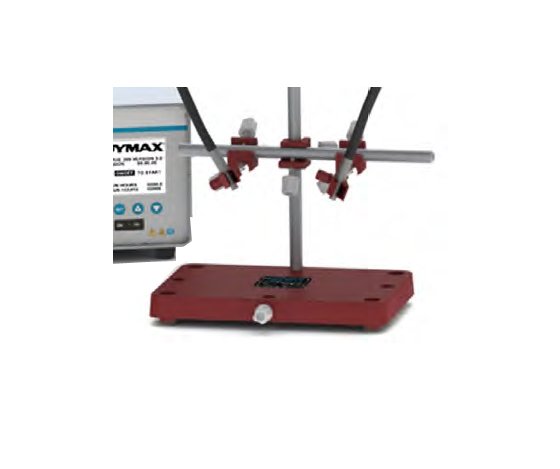

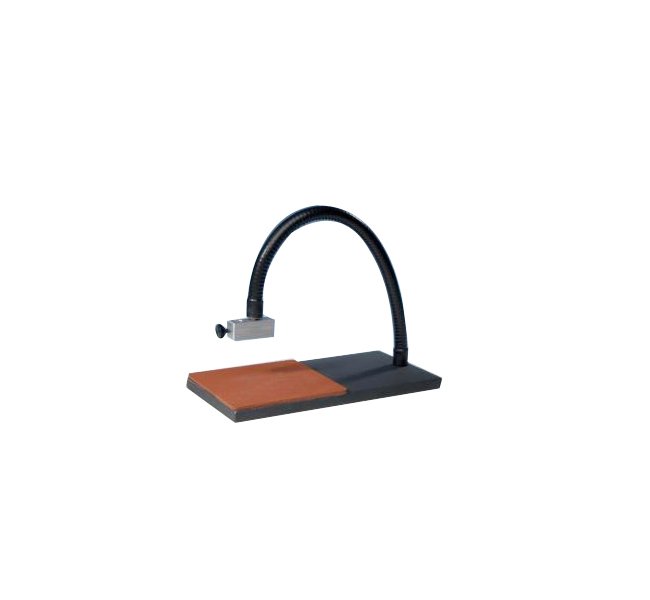

Lightguide Mounting StandsItem # - 39700Item Name - Single Lightguide Mounting StandDescription - Utilizes a 24" flexible arm for mounting 3, 5, and 8-mm lightguides. This stand offers a 5" x 5" (127 mm x 127 mm) working area and allows repeatable, hands-free spot curing.Item # - 41325Item Name - Acrylic Lightguide Mounting StandDescription - Multiple lightguides can be securely mounted on this stand for repeatable, hand-free spot curing.Item # - 41595Item Name - Lightguide Stand Expansion KitDescription - Allows the Dymax® acrylic lightguide mounting stand to hold up to four lightguide poles.Lightguide TerminatorsDescription - Lightguide terminators can be attached to the end of a lightguide to help users get UV light to those difficult-to-reach locations.Item # - 39029 - 3 mm/60ºItem # - 39030 - 3 mm/90ºItem # - 38042 - 5 mm/60ºItem # - 38049 - 5 mm/90ºItem # - 39334 - 8 mm/60ºItem # - 39333 - 8 mm/90ºLightguide SimulatorsDescription - A lightguide simulator can be used to accurately measure the direct light intensity from the system's energy source.Item # - 38408Item Name - Lightguide Simulator, 7 mm DiameterItem # - 36987Item Name - Lightguide Simulator, 5 mm Diameter
Additional Information 0

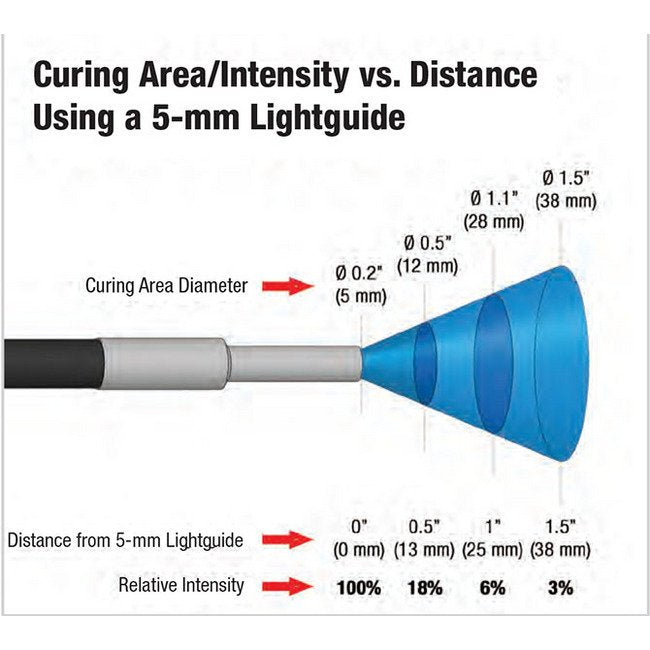

When choosing a lightguide for your system, the following factors should be considered:Length - Lightguides are commonly one meter long although other lengths are available.Diameter - Single-pole lightguides are available with 3 mm, 5 mm, or 8 mm inside diameters. Although the 5 mm lightguide will register a higher intensity, the 8 mm lightguide provides more curing power (intensity x area) because a larger lightguide opening captures more of the light emitted from the bulb. Each pole of a multi-pole lightguide has an inside diameter of 3 mm.Multiple Poles - Light emitting from a spot lamp can be channeled through a single lightguide (single pole) or split between multiple lightguides (multiple poles). Each pole of a multi-pole lightguide emits equal intensity typically ±10% for liquid-filled lightguides and all share a common shutter. Both liquid-filled and quartz-fiber multi-pole lightguides are available from Dymax®.Connection - There are basically two types of connectors used in the spot lamp industry, "Wolf" and "D" connectors. Dymax® provides lightguides with both connector types, although "D" connectors are an industry standard and compatible with current Dymax® lamp designs (older Dymax® designs utilized Wolf" connectors).Curing Area/Intensity vs. Distance - The UV and visible light emitted from a lightguide diverges. As a result, intensity decreases and curing area increases with distance from the end of the light guide. The chart to the right describes this relationship clearly for the 5 mm liquid lightguide.
Specifications Compatible Dymax Systems
BlueWave® 200 | BlueWave® 75 | BlueWave® DX-1000 | BlueWave® DX-1000 VisiCure® | BlueWave® Light Emitting Diode (LED) Prime Ultraviolet A (UVA) | BlueWave® Light Emitting Diode (LED) VisiCure®
Specifications Lightguide Size
8 mm x 1 M
Specifications Note For Intensity
As measured with a Dymax® ACCU-CAL⢠50 Radiometer (320 to 395 nm) and Lightguide simulator. Excessive on/off cycles and improper cooling may affect bulb degradation and therefore no warranty is expressed or implied.
Specifications Note For Pole And Longitudinal Size
All noted are liquid filled, quartz fiber are also available.
Specifications Number Of Poles
Single
Specifications Initial Intensity
13.0 W/cm²
Specifications Initial Intensity At 2000 Hours
6.5 W/cm²
