Dymax Three-Pole Liquid Lightguide for UV/LED Curing Systems
Dymax Three-Pole Liquid Lightguide for UV/LED Curing Systems
SKU:ULT-214934
Enhance UV adhesive curing with Dymax® Three Pole Light Guide. Rapid and precise spot-curing for adhesives, coatings, and sealants.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dymax Three-Pole Liquid Lightguide for UV/LED Curing Systems
$189.99
Quantity: 1
Claim Your Seller Account
Dymax Three-Pole Liquid Lightguide for UV/LED Curing Systems
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

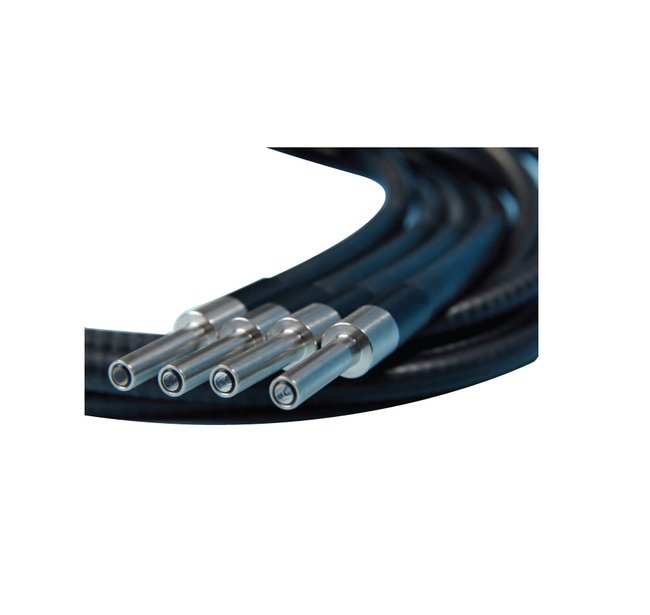

The Dymax® Three Pole Light-Curing System Lightguide is a cutting-edge accessory designed for rapid and precise UV curing of adhesives, coatings, and sealants. Featuring a liquid-filled core within durable plastic tubing, this light guide is non-toxic, non-flammable, and transparent from 270 to 720 nm. With high-quality quartz glass ends and metal spiral tubing, this 3mm x 1m lightguide ensures controlled curing intensity, making it compatible with various Dymax® systems like BlueWave® 200, BlueWave® DX-1000, and LED Prime UVA, among others. Improve your spot-curing efficiency with this versatile light-curing system accessory.
Product Specifications
Accessories 0

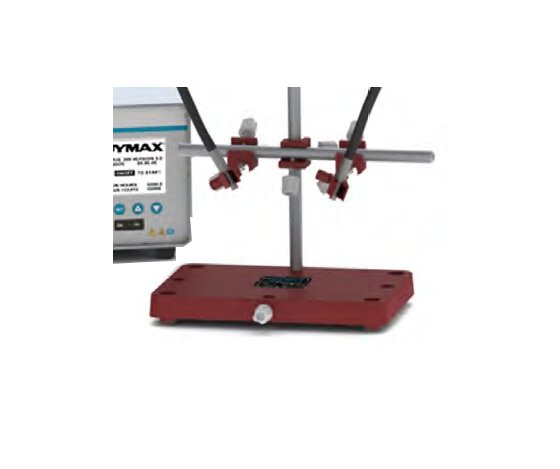

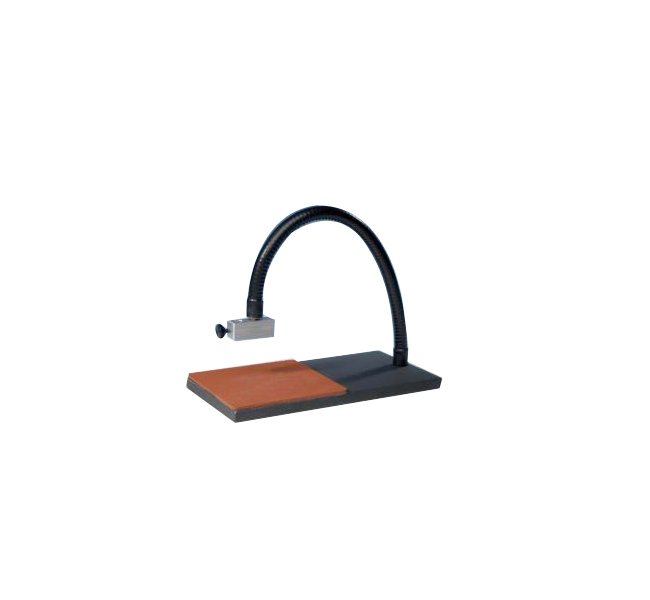

Lightguide Mounting StandsItem # - 39700Item Name - Single Lightguide Mounting StandDescription - Utilizes a 24" flexible arm for mounting 3, 5, and 8-mm lightguides. This stand offers a 5" x 5" (127 mm x 127 mm) working area and allows repeatable, hands-free spot curing.Item # - 41325Item Name - Acrylic Lightguide Mounting StandDescription - Multiple lightguides can be securely mounted on this stand for repeatable, hand-free spot curing.Item # - 41595Item Name - Lightguide Stand Expansion KitDescription - Allows the Dymax® acrylic lightguide mounting stand to hold up to four lightguide poles.Lightguide TerminatorsDescription - Lightguide terminators can be attached to the end of a lightguide to help users get UV light to those difficult-to-reach locations.Item # - 39029 - 3 mm/60ºItem # - 39030 - 3 mm/90ºItem # - 38042 - 5 mm/60ºItem # - 38049 - 5 mm/90ºItem # - 39334 - 8 mm/60ºItem # - 39333 - 8 mm/90ºLightguide SimulatorsDescription - A lightguide simulator can be used to accurately measure the direct light intensity from the system's energy source.Item # - 38408Item Name - Lightguide Simulator, 7 mm DiameterItem # - 36987Item Name - Lightguide Simulator, 5 mm Diameter
Additional Information 0
When choosing a lightguide for your system, the following factors should be considered:Length - Lightguides are commonly one meter long although other lengths are available.Diameter - Single-pole lightguides are available with 3 mm, 5 mm, or 8 mm inside diameters. Although the 5 mm lightguide will register a higher intensity, the 8 mm lightguide provides more curing power (intensity x area) because a larger lightguide opening captures more of the light emitted from the bulb. Each pole of a multi-pole lightguide has an inside diameter of 3 mm.Multiple Poles - Light emitting from a spot lamp can be channeled through a single lightguide (single pole) or split between multiple lightguides (multiple poles). Each pole of a multi-pole lightguide emits equal intensity typically ±10% for liquid-filled lightguides and all share a common shutter. Both liquid-filled and quartz-fiber multi-pole lightguides are available from Dymax®.Connection - There are basically two types of connectors used in the spot lamp industry, "Wolf" and "D" connectors. Dymax® provides lightguides with both connector types, although "D" connectors are an industry standard and compatible with current Dymax® lamp designs (older Dymax® designs utilized Wolf" connectors).Curing Area/Intensity vs. Distance - The UV and visible light emitted from a lightguide diverges. As a result, intensity decreases and curing area increases with distance from the end of the light guide. The chart to the right describes this relationship clearly for the 5 mm liquid lightguide.
Specifications Compatible Dymax Systems
BlueWave® 200 | BlueWave® 75 | BlueWave® DX-1000 | BlueWave® DX-1000 VisiCure® | BlueWave® Light Emitting Diode (LED) Prime Ultraviolet A (UVA) | BlueWave® Light Emitting Diode (LED) VisiCure®
Specifications Lightguide Size
3 mm x 1 M
Specifications Note For Intensity
As measured with a Dymax® ACCU-CAL⢠50 Radiometer (320 to 395 nm) and Lightguide simulator. Excessive on/off cycles and improper cooling may affect bulb degradation and therefore no warranty is expressed or implied.
Specifications Note For Pole And Longitudinal Size
All noted are liquid filled, quartz fiber are also available.
Specifications Number Of Poles
Three
Specifications Initial Intensity
9.0 W/cm²
Specifications Initial Intensity At 2000 Hours
4.5 W/cm²
