Dymax Two Pole Light-Curing System Lightguide
Dymax Two Pole Light-Curing System Lightguide
SKU:ULT-55f8c1
Enhance UV curing with precision using the Dymax® Two Pole Light-Curing System Lightguide. Rapid, controlled curing for adhesives, coatings, and sealants.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Dymax Two Pole Light-Curing System Lightguide
$129.99
Quantity: 1
Claim Your Seller Account
Dymax Two Pole Light-Curing System Lightguide
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

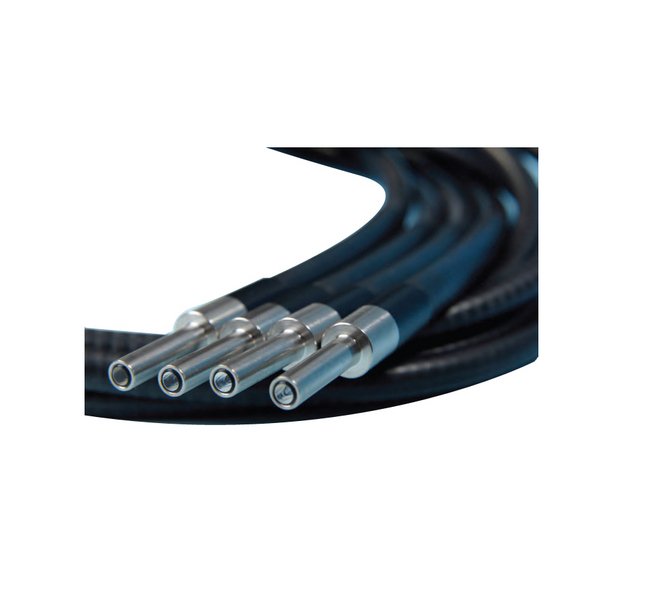

The Dymax® Two Pole Light-Curing System Lightguide is a crucial accessory for spot-curing systems, offering rapid and precise UV light curing of adhesives, coatings, and sealants. This flexible light guide features a non-toxic, non-flammable liquid core within plastic tubing, ensuring transparency from 270 to 720 nm. With high-quality quartz glass sealed ends and metal spiral tubing, surrounded by protective plastic sleeve, this lightguide guarantees controlled curing intensity, making it ideal for various applications.
Product Specifications
Accessories 0

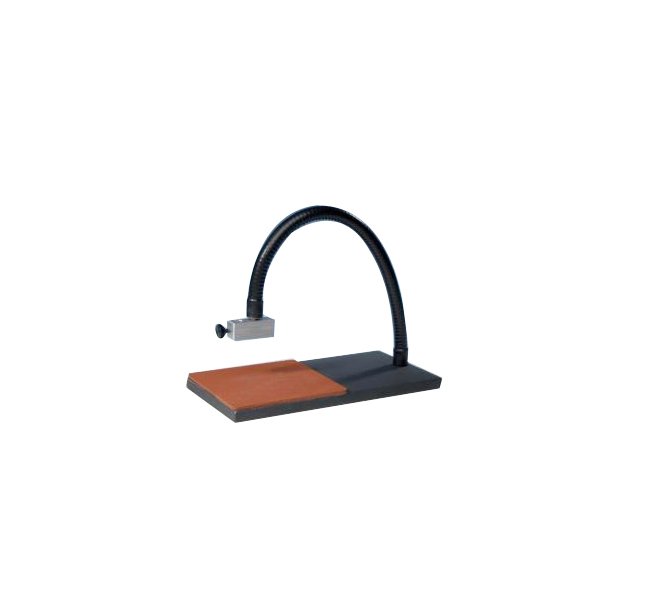

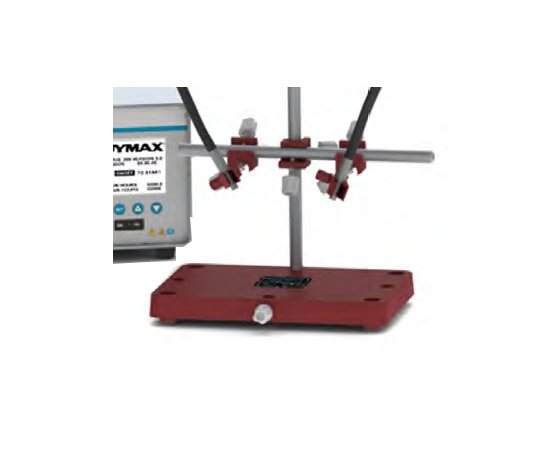

Lightguide Mounting StandsItem # - 39700Item Name - Single Lightguide Mounting StandDescription - Utilizes a 24" flexible arm for mounting 3, 5, and 8-mm lightguides. This stand offers a 5" x 5" (127 mm x 127 mm) working area and allows repeatable, hands-free spot curing.Item # - 41325Item Name - Acrylic Lightguide Mounting StandDescription - Multiple lightguides can be securely mounted on this stand for repeatable, hand-free spot curing.Item # - 41595Item Name - Lightguide Stand Expansion KitDescription - Allows the Dymax® acrylic lightguide mounting stand to hold up to four lightguide poles.Lightguide TerminatorsDescription - Lightguide terminators can be attached to the end of a lightguide to help users get UV light to those difficult-to-reach locations.Item # - 39029 - 3 mm/60ºItem # - 39030 - 3 mm/90ºItem # - 38042 - 5 mm/60ºItem # - 38049 - 5 mm/90ºItem # - 39334 - 8 mm/60ºItem # - 39333 - 8 mm/90ºLightguide SimulatorsDescription - A lightguide simulator can be used to accurately measure the direct light intensity from the system's energy source.Item # - 38408Item Name - Lightguide Simulator, 7 mm DiameterItem # - 36987Item Name - Lightguide Simulator, 5 mm Diameter
Additional Information 0

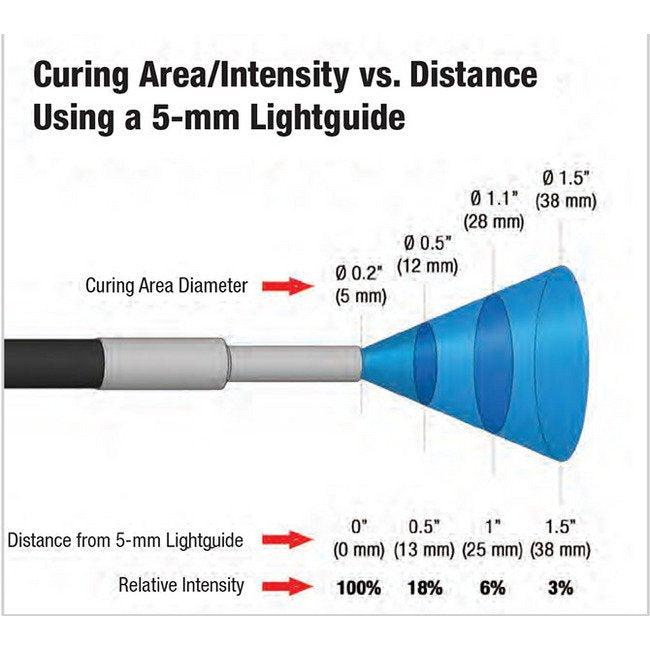

When choosing a lightguide for your system, the following factors should be considered:Length - Lightguides are commonly one meter long although other lengths are available.Diameter - Single-pole lightguides are available with 3 mm, 5 mm, or 8 mm inside diameters. Although the 5 mm lightguide will register a higher intensity, the 8 mm lightguide provides more curing power (intensity x area) because a larger lightguide opening captures more of the light emitted from the bulb. Each pole of a multi-pole lightguide has an inside diameter of 3 mm.Multiple Poles - Light emitting from a spot lamp can be channeled through a single lightguide (single pole) or split between multiple lightguides (multiple poles). Each pole of a multi-pole lightguide emits equal intensity typically ±10% for liquid-filled lightguides and all share a common shutter. Both liquid-filled and quartz-fiber multi-pole lightguides are available from Dymax®.Connection - There are basically two types of connectors used in the spot lamp industry, "Wolf" and "D" connectors. Dymax® provides lightguides with both connector types, although "D" connectors are an industry standard and compatible with current Dymax® lamp designs (older Dymax® designs utilized Wolf" connectors).Curing Area/Intensity vs. Distance - The UV and visible light emitted from a lightguide diverges. As a result, intensity decreases and curing area increases with distance from the end of the light guide. The chart to the right describes this relationship clearly for the 5 mm liquid lightguide.
Specifications Compatible Dymax Systems
BlueWave® 200 | BlueWave® 75 | BlueWave® DX-1000 | BlueWave® DX-1000 VisiCure® | BlueWave® Light Emitting Diode (LED) Prime Ultraviolet A (UVA) | BlueWave® Light Emitting Diode (LED) VisiCure®
Specifications Lightguide Size
3 mm x 1 M
Specifications Note For Intensity
As measured with a Dymax® ACCU-CAL⢠50 Radiometer (320 to 395 nm) and Lightguide simulator. Excessive on/off cycles and improper cooling may affect bulb degradation and therefore no warranty is expressed or implied.
Specifications Note For Pole And Longitudinal Size
All noted are liquid filled, quartz fiber are also available.
Specifications Number Of Poles
Two
Specifications Initial Intensity
10.5 W/cm²
Specifications Initial Intensity At 2000 Hours
5.2 W/cm²
