Dymax UV Conveyor Curing System with Fusion F300 Lamps
$7,999.99
Quantity: 1
Claim Your Seller Account
Dymax UV Conveyor Curing System with Fusion F300 Lamps
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

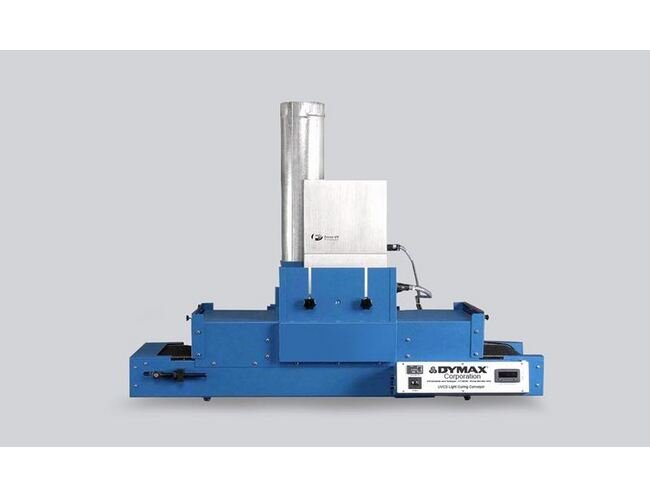

The Dymax UV Conveyor Curing System with Fusion F300 Lamps is a cutting-edge solution for efficient UV curing processes. Featuring a Full Width lamp orientation and adjustable settings for optimal performance, this conveyor ensures consistent curing results. With a wide curing width, integrated cooling, and adjustable vertical clearance, it offers versatility and precision. Ideal for small-to-medium throughput bonding applications, this conveyor system is designed to meet the highest standards of performance and reliability.
Product Specifications
Additional Information 0
These conveyors have lamps that span the full width of the conveyor.
Features 0
Consistent UV curing processComplete UV shieldingAdjustable lamp to belt distance4 in, 6 in, or 10 in vertical clearanceIntegral cooling and vacuum hold-down1 to 27 fpm or 25 to 115 fpmBulb life: 5,000 hoursBench-top conveyor (cart optional)
Manufacturing Notes 0

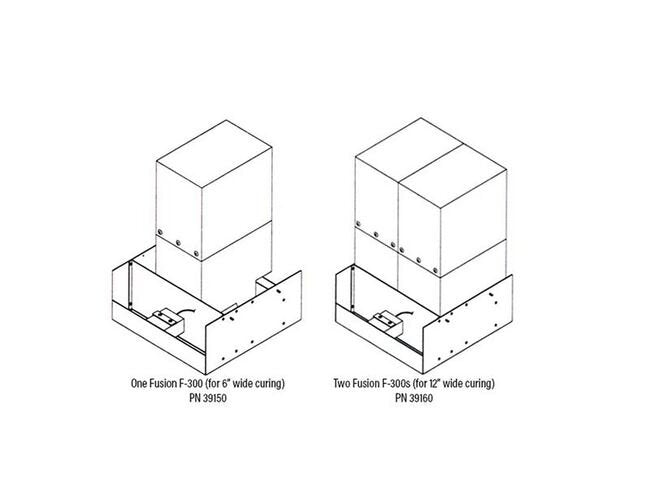

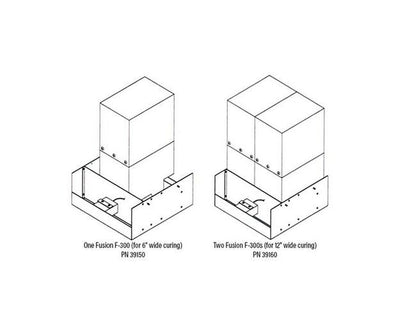

UVCS conveyors are available without lamps for those customers that have previously purchased 5000-EC or Fusion F300 lamps. Additional lamps may be incorporated into UVCS conveyors after initial purchase (from one or two Fusion lamps, or up to four 5000-ECs). Contact Dymax® Application Engineering for configuration assistance.
Note 0
These conveyors have lamps that span the full width of the conveyor.
Replacement Parts 0
Item # - 39205Item Name - Acrylic Tunnel ShieldQuantity - 1Item # - 39207Item Name - Tunnel Light CurtainQuantity - 1Item # - 39134Item Name - Replacement BeltQuantity - 1Item # - 39209Item Name - Extension ShieldQuantity - 1Item # - 39241Item Name - 5000-EC (for conveyors)Quantity - 1
Selection Of Lamps 0
These lamps provide moderate intensity (~200 mW/cm2) over a 6" x 6" (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain approximately 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.UVCS series conveyors can be outfitted with either 5000-EC lamps or Fusion F300 lamps.
Specifications Belt Speeds
1 to 27 ft/min
Specifications Belt Width
12 in | 30 cm
Specifications Conveyor Voltage
220 V | 230 V
Specifications Crated Height
29 in | 74 cm
Specifications Crated Length
69 in | 175 cm
Specifications Crated Width
44 in | 112 cm
Specifications Curing Width
12 in | 30 cm
Specifications Current
2.4 A
Specifications Frequency
50 Hz | 60 Hz
Specifications Lamp Adjustment Range
1.7 to 5.5 in | 4.3 to 14 cm
Specifications Lamp Model
Fusion F300 Lamps
Specifications Lamp Orientation
Full Width (FW)
Specifications Line Speed
1 to 27 fpm | 25 to 115 fpm
Specifications Maximum Parts Height
10 in | 25.4 cm
Specifications Maximum Ultraviolet A Uva Energy At 5 Feet Per Mi
2 J/cm² | 320 to 390 nm
Specifications Maximum Ultraviolet A Uva Intensity
2500 mW/cm² | 320 to 390 nm
Specifications Model
UVCS-F-2-230
Specifications Note For Maximum Parts Height
Adding Rises Increases
Specifications Number Of Lamps
2

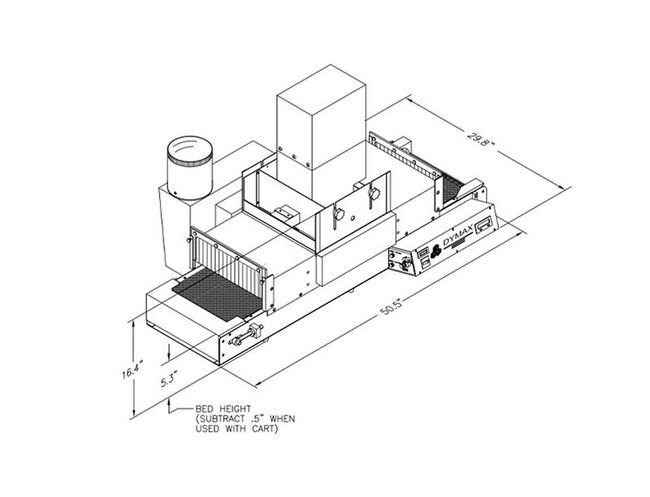

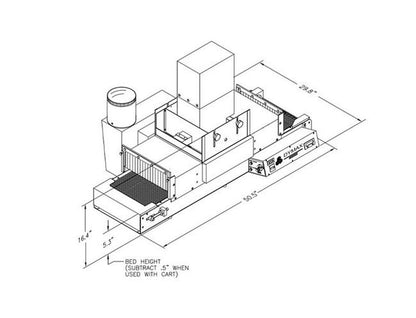

Specifications Overall Height
16.4 in | 42 cm
Specifications Overall Length
50.5 in | 128 cm
Specifications Overall Width
29.8 in | 76 cm
Specifications Shipping Weight With Crates And Lamps
350 to 400 lb | 159 to 181 kg
Specifications Type
North American Version (Standard Plug 120 V)
Specifications Vertical Clearance
10 in (with 6 in riser, PN 39280) | 4 in (Standard) | 6 in (with 2 in riser, PN 39218)
Specifications Width Of Illuminated Area
12 in
