Dymax UV Light-Curing Flood Lamp System - 2000-EC Series
Dymax UV Light-Curing Flood Lamp System - 2000-EC Series
SKU:ULT-9665f0
Efficient UV Light-Curing Flood Lamp System for precise and consistent 8x8 inch area curing at 2 to 6 inch distance. Ideal for various applications.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Dymax UV Light-Curing Flood Lamp System - 2000-EC Series
$1,799.99
Quantity: 1
Claim Your Seller Account
Dymax UV Light-Curing Flood Lamp System - 2000-EC Series
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

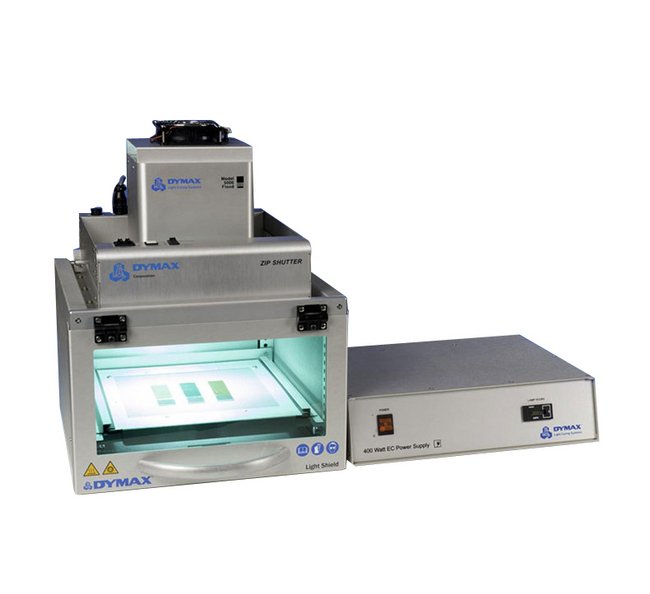

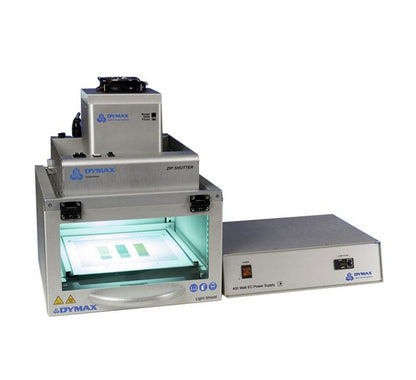

The Dymax UV Light-Curing Flood Lamp System in the 2000-EC Series offers reliable moderate to high-intensity UV curing over a 2 to 6 inch working distance. With a broad-spectrum flood lamp design, this system provides consistent curing over an 8 x 8 inch area, suitable for a wide range of applications. Featuring adjustable lamp height, typical cure times of 5-30 seconds, and compatibility with Dymax light-curable adhesives, this system is ideal for bench-top use or integration into automated assembly systems. With a 2,000-hour bulb warranty and options for shutters and shielding, the Dymax UV Light-Curing Flood Lamp System ensures efficient and precise curing operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
Item # - 35572Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "Manual shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Low cost louvered shutter. Simple hand turn knob opens and closes shutter.Dimensions Dimensions (L x W x H) - 11.1" x 11.3" x 2.5" (28.2 cm x 28.7 cm x 6.4 cm)Item # - 37863Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38071Description - Replacement CurtainDymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38290ECE 2000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 2000: 8.5" x 10.8" (21.6 x 27.4 cm)Item # - 38289ECE 5000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 5000: 7.0" x 6.1" (17.8 x 15.5 cm)Item # - 40785Description - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.360º shielding. Swing up door and slide out shelf. Compatible with Dymax® shutters.Inside Dimensions (W x D x H) - 13.2" x 12.5" x 8.3" (35.53 cm x 31.75 cm x 21.08 cm)Outside Dimensions (W x D x H) - 15.1" x 18.2" x 10.6" (38.42 cm x 46.25 cm x 26.83 cm)
Additional Information 0

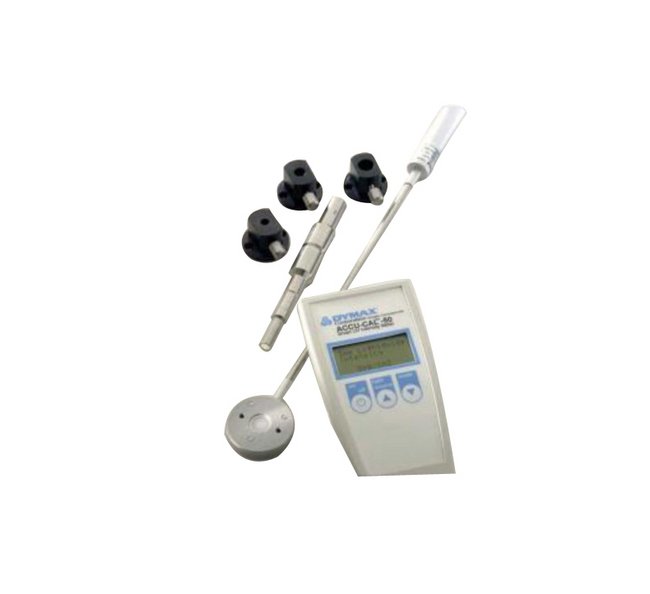

The intensity generated by Dymax® flood systems is very consistent. With continuous use, bulb degradation of less than 20% over the first 2,000 hours is typical. On/off cycles will accelerate bulb degradation.The ACCU-CAL⢠50 radiometer is simple to operate and offers repeatable measurement of UV light. The Dymax® ACCU-CAL⢠50 can measure UV light emitted from lightguides (3 mm, 5 mm, and 8 mm), UV flood systems, and UV conveyors.EC-series flood-lamp systems are ideal for light curing large parts or curing many small parts simultaneously. With intensities ranging from 105-350 mW/cm2, Dymax® flood lamps are capable of curing most UV light-curable adhesives, sealants, and coatings, tack free in 30 seconds or less. These flood lamps can be incorporated into automated assembly systems or mounted onto conveyors. Dymax® flood units can also be used as turnkey bench-top units (with optional shutters).Broad-spectrum & LED Flood-curing SystemsFlood-style curing systems usually provide moderate to high-intensity light. These units have the advantage of being able to cure a tray of parts, or parts with large bonded or coated areas. These kinds of lamps are commonly integrated into existing manufacturing processes by mounting them above high-speed assembly lines. Fairly deep cures can be achieved by these relatively inexpensive units at 10- to 30-second exposure times. Wide-area flood lamps are used successfully to cure substrates that are somewhat heat-sensitive, such as certain plastics.Dymax® currently offers both broad-spectrum and LED flood curing systems to fit a wide variety of curing applications. Shutter assemblies, mounting stands, shields, and other accessories are available to order to create custom bench-top curing systems. CE marked units are available for manufacturers in Europe.
Broad Spectrum Flood Lamps 0

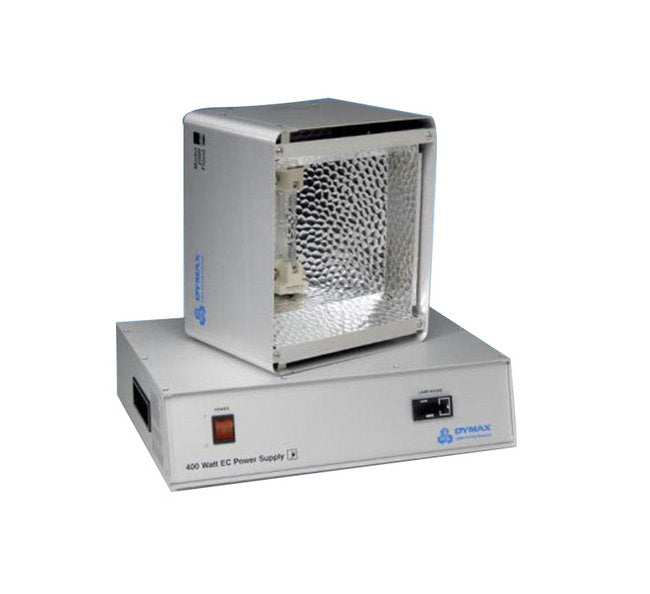

Dymax® broad-spectrum flood curing systems use moderate- to high-intensity (105-350 mW/cm2) UV/visible light to cure UV light-curable adhesives, coatings, and inks in as little as 5-30 seconds. Systems are available with 5" x 5" (127 mm x 127 mm) or 8" x 8" (203 mm x 203 mm) curing areas. They come standard with a 400 watt metal-halide bulb but can be outfitted with longwave, shortwave, UV, and visible replacement bulbs to fit unique applications. All bulbs have a long service life and come with a 2,000 hour warranty.
Features 0
Powerful UV light-curing lamps (up to 225 mW/cm²) - Measured with a Dymax® ACCU-CAL⢠50 Radiometer (320-395 nm) at a lamp height of 3" using a standard metal halide bulb.Two bulb options (shortwave or longwave)Large curing area 5" x 5" or 8" x 8" (12.7 cm x 12.7 cm) or (20.3 cm x 20.3 cm)Adjustable lamp heightTypical cure times of 5-30 secondsBulbs are warranted for 2,000 hoursShutter that can be actuated by foot pedal or PLC100% shielding with safety interlock available
Light Emitting Diode Led Flood Curing Systems 0
Dymax® LED flood lamp systems use high-intensity LEDs to cure a 5" x 5" (12.7 cm x 12.7 cm) area. Because these flood systems use a high-intensity LED as the curing source they produce faster cure times, more consistent frequency and intensity output, a cooler curing environment for thermally sensitive substrates, and longer bulb life than conventional arc lamps. Systems are available in three different wavelength arrays (365, 385, and 405 nm) so users can fully optimize the curing process between their light-curable material and the curing system.
Manufacturing Notes 0
Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL⢠50 radiometer.
Replacement Bulb Model Numbers 0

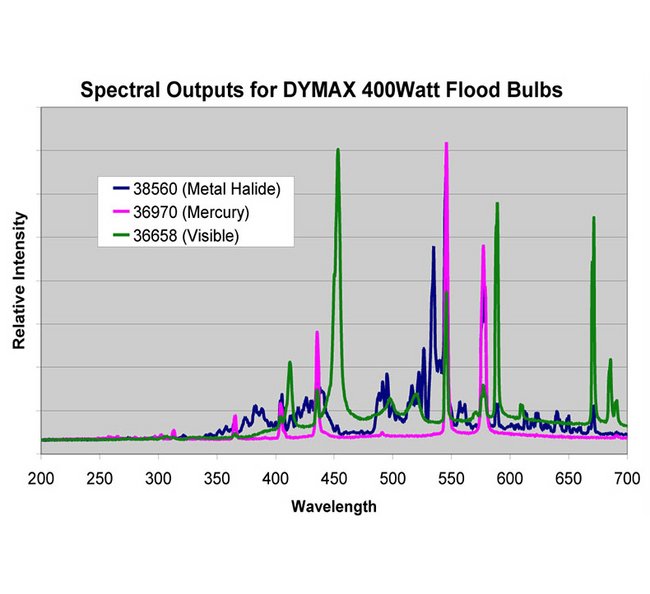

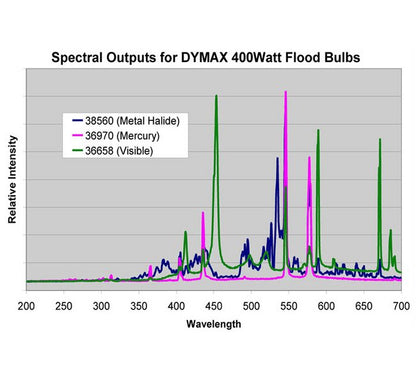

Item # - 38560Metal Halide (Standard, UVA, Longwave)Item # - 36970Mercury (UVB, Shortwave)Item # - 36658Visible
Specifications Curing Area
8 x 8 in | 20.3 cm
Specifications System Options
With EC Light Shield & Manual Shutter
Specifications Degradation
< 20 %
Specifications Intensity Output
105 mW/cm²
Specifications Working Distance
2 to 6 in | 5.08 to 15.24 cm
