Dymax UVCS 2.0 Full Width LED UV Conveyor System
Dymax UVCS 2.0 Full Width LED UV Conveyor System
SKU:ULT-a1365d
Achieve fast, consistent, and safe UV curing with the Dymax UVCS 2.0 Full Width LED UV Conveyor System. Perfect for adhesives, coatings, and inks.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Dymax UVCS 2.0 Full Width LED UV Conveyor System
$7,499.99
Quantity: 1
Claim Your Seller Account
Dymax UVCS 2.0 Full Width LED UV Conveyor System
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

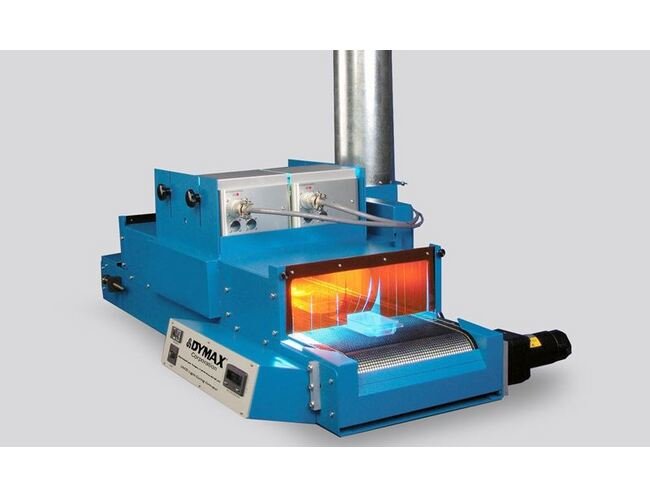

The Dymax UVCS 2.0 Full Width LED UV Conveyor System is a cutting-edge solution for fast, consistent, and safe UV curing of adhesives, coatings, and inks. With a configuration of 2 powerful 5000-EC Lamps, this conveyor system offers adjustable lamp-to-belt distance, 1 to 32 feet per minute line speed, and a curing width of 12 inches. Ideal for institutional and government buyers, the system features integral cooling, vacuum hold-down, and meets stringent industry standards for quality and performance.
Product Specifications
Accessories 0
Item # - 405501ACCU-CAL⢠150 RadiometerItem # - 39218PairRisers Kit 2 inItem # - 392771Guides for 6 in CuringItem # - 39280PairRisers Kit 6 inItem # - 392151Transportation Cart
Additional Information 0
Dymax® UVCS 2.0 Conveyor with 5000-EC Lamps Available Globally, Except EuropeThe UVCS 2.0 series of light-curing conveyor systems can be outfitted with 1, 2, or 4 medium- to high-intensity lamps that can be outfitted with standard metal halide (longwave) or mercury (shortwave) bulbs. These systems offer fast, consistent UV curing of adhesives, coatings, and inks and feature line speeds of 1 to 32 fpm. With a 4 in, 6 in, or 10 in vertical clearance, they are ideal for conveying and curing larger components quickly. The conveyors have vacuum hold down and integral cooling features and are shielded so they donât emit stray light.
Features 0
Available globally (except Europe)Consistent UV curing processAdjustable lamp-to-belt distance4 in, 6 in, or 10 in vertical clearanceIntegral cooling and vacuum hold-down1 to 32 feet per minute line speedBench-top conveyor (cart optional)
Manufacturing Notes 0
UVCS conveyors are available without lamps for those customers that have previously purchased 5000-EC or Fusion F300 lamps. Additional lamps may be incorporated into UVCS conveyors after initial purchase (from one or two Fusion lamps, or up to four 5000-ECs). Contact Dymax® Application Engineering for configuration assistance.
Note 0

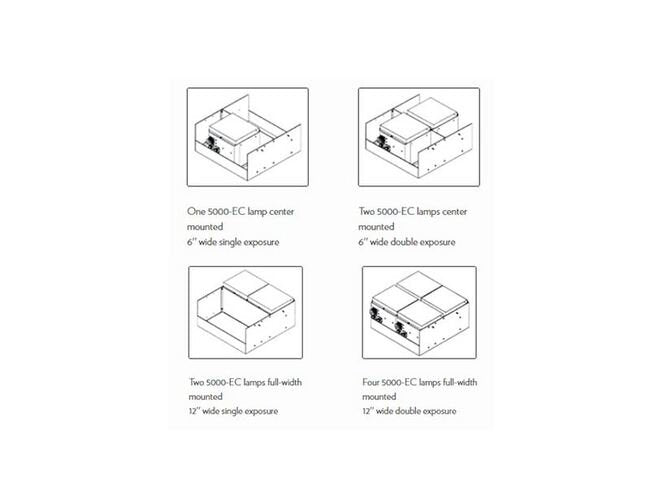

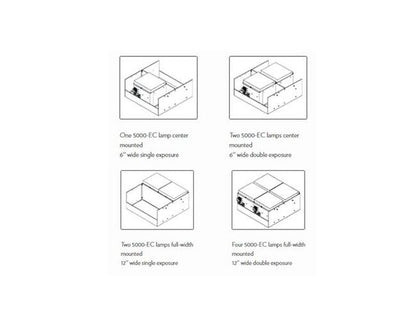

These conveyors have lamps that span the full width of the conveyor.

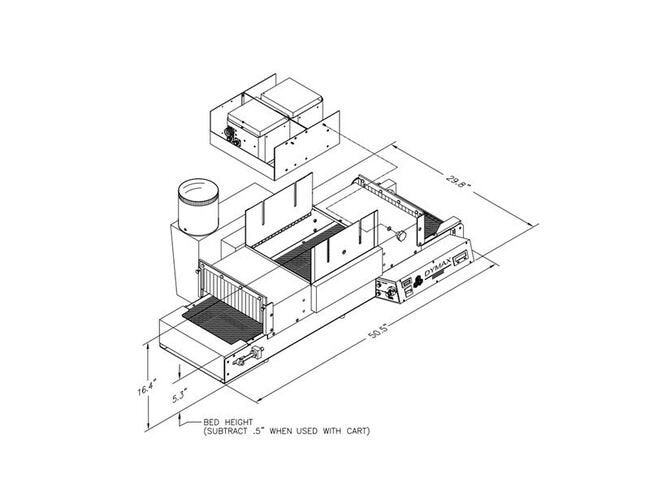

Overall Dimensions Overall Height
16.4 in | 72 cm
Overall Dimensions Overall Length
50.5 in | 128 cm
Overall Dimensions Overall Width
29.8 in | 76 cm
Replacement Parts 0
Item # - 39205Item Name - Acrylic Tunnel ShieldQuantity - 1Item # - 39207Item Name - Tunnel Light CurtainQuantity - 1Item # - 39134Item Name - Replacement BeltQuantity - 1Item # - 39209Item Name - Extension ShieldQuantity - 1Item # - 39241Item Name - 5000-EC (for conveyors)Quantity - 1
Selection Of Lamps 0
These lamps provide moderate intensity (~200 mW/cm2) over a 6" x 6" (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain approximately 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.UVCS series conveyors can be outfitted with either 5000-EC lamps or Fusion F300 lamps.
Specifications 0

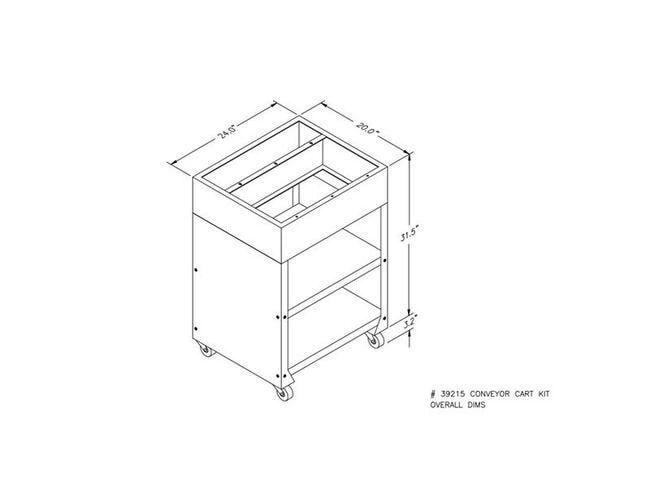

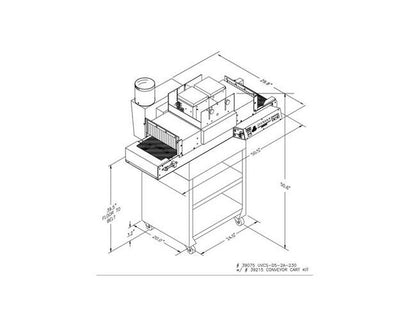

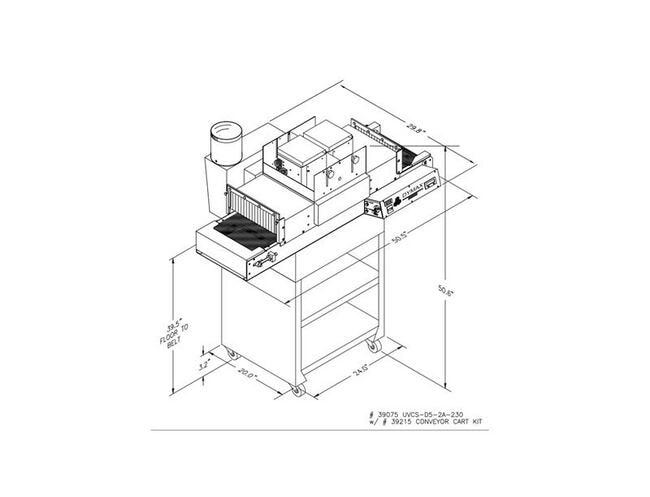

Item # - 39215Item Name - Transportation CartDescription - Easily move your conveyor with one of these durable, rolling carts.Item # - 38560Item Name - Metal-Halide Bulb (Standard, UVA, Longwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps.Item # - 36970Item Name - Mercury Bulb (UVB, Shortwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 36658Item Name - Visible BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. The bulbs are primarily designed for curing UV/visible curing adhesives through UV-blocked, but transparent substrates.Item # - 36399Item Name - "D" Bulb (Standard)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps.Item # - 36441Item Name - "H" BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 38146Item Name - "V" Bulb
Specifications Belt Speeds
1 to 27 ft/min
Specifications Belt Width
12 in | 30 cm
Specifications Conveyor Voltage
220 V | 230 V
Specifications Crated Height
29 in | 74 cm
Specifications Crated Length
69 in | 175 cm
Specifications Crated Width
44 in | 112 cm
Specifications Curing Width
12 in | 30 cm
Specifications Current
2.4 A
Specifications Illuminated Area Width
6 in | 12 in
Specifications Lamps Voltage
90 to 260 V
Specifications Lamp Adjustment Range
1.7 to 5.5 in | 4.3 to 14 cm
Specifications Lamp Model
5000-EC Lamps
Specifications Lamp Orientation
Full Width (FW)
Specifications Line Speed
1 to 32 fpm
Specifications Maximum Parts Height
10 in | 25.4 cm
Specifications Maximum Ultraviolet A Uva Energy At 5 Feet Per Mi
1.25 J/cm² | 320 to 390 nm
Specifications Maximum Ultraviolet A Uva Intensity
200 mW/cm² | 320 to 390 nm
Specifications Model
UVCS-D5-2B-230
Specifications Note For Maximum Parts Height
Adding Rises Increases
Specifications Number Of Lamps
2
Specifications Shipping Weight With Crates And Lamps
350 to 400 lb | 159 to 181 kg
Specifications Type
North American Version (Standard Plug 120 V)
Specifications Bulb Life
2,000 + h
Specifications Vertical Clearance
10 in (with 6 in riser, Part 39280) | 4 in (Standard) | 6 in (with 2 in riser, Part 39218)
Specifications Width Of Illuminated Area
12 in
