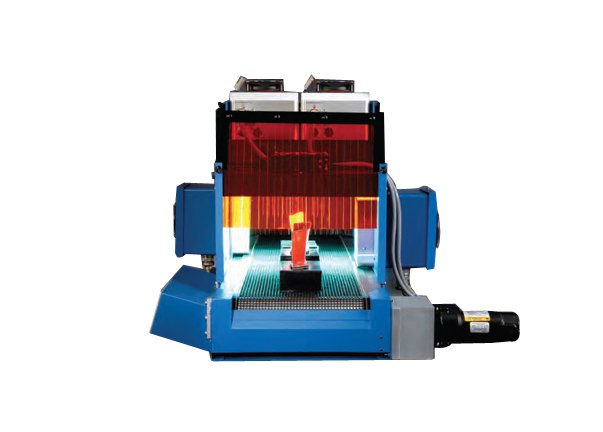

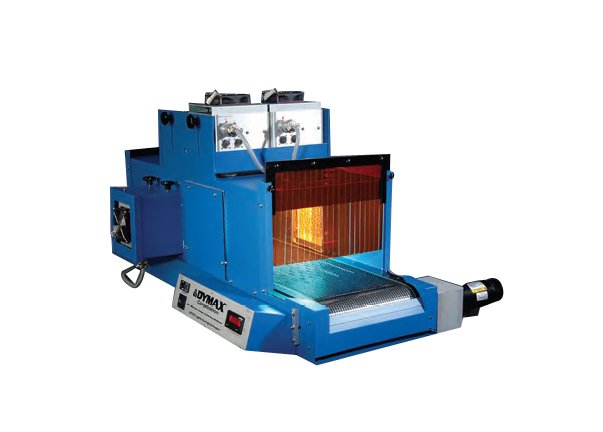

The Dymax UVCS SideCure 12" UV Curing Conveyor System is a highly efficient solution for UV curing of adhesives and coatings from the sides and/or top. This conveyor system features up to six 5000-EC UV curing flood lamps providing complete shielding and consistent exposure times. With a 12" wide belt and 5" high side-curing capability, it is versatile for various applications including masking, medical, and electronic industries requiring 180º UV curing. Its adjustable top lamp height, side lamp position, digital belt control, and precise cure times make it an ideal choice. This system is designed to meet the rigorous standards of federal procurement and industry-specific certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
Item # - 39215Item Name - Transportation CartDescription - Easily move your conveyor with one of these durable, rolling carts.Item # - 38560Item Name - Metal-Halide Bulb (Standard, UVA, Longwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps.Item # - 36970Item Name - Mercury Bulb (UVB, Shortwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 36658Item Name - Visible BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. The bulbs are primarily designed for curing UV/visible curing adhesives through UV-blocked, but transparent substrates.Item # - 36399Item Name - "D" Bulb (Standard)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps.Item # - 36441Item Name - "H" BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 38146Item Name - "V" Bulb
Features 0
Left, right, and top curing capabilityAdjustable top lamp height and side lamp positionAccurate digital belt control and readoutControlled and consistent cure timesAccepts parts up to 36 in x 12 in x 7 in (L x W x H)
Overall Dimensions Overall Height Not Including Lamps
21.5 in | 55 cm
Overall Dimensions Overall Length Not Including Lamps
51 in | 130 cm
Overall Dimensions Overall Width Not Including Lamps
30 in | 76 cm
Specifications 5000 Ec Maximum Ultraviolet A Uva Intensity
225 mW/cm² (320-390 nm) using ACCU-CAL⢠150
Specifications Belt Speeds
1 to 27.5 ft/min
Specifications Belt Width
12 in | 30 cm
Specifications Conveyor Voltage
115 V
Specifications Crated Height
31 in | 79 cm
Specifications Crated Length
72 in | 183 cm
Specifications Crated Width
52 in | 132 cm
Specifications Curing Width
6 in | 12 in | 15 cm | 30 cm
Specifications Current
1.6 A

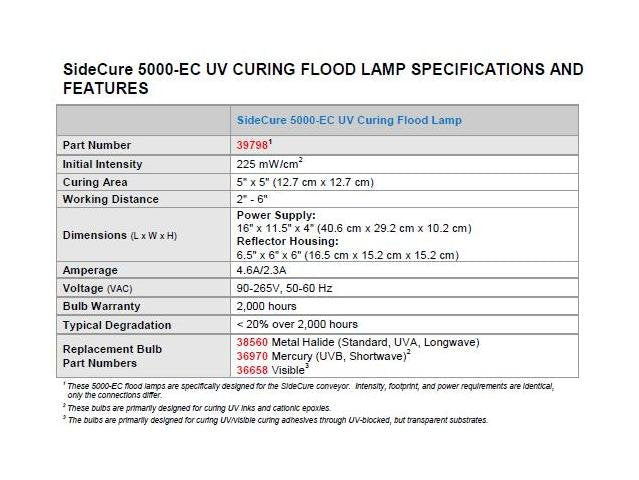

Specifications Lamps Sidecure 5000 Ecs Pn 39798
Up to six (sold separately)
Specifications Maximum Parts Height
7 in | 17.8 cm
Specifications Shipping Weight With Crates And Lamps
450 to 500 lb | 204 to 227 kg
Specifications Side Lamp Adjustment
From 3.5 to 6 in. off center (9 to 15 cm)
Specifications Top Lamp Adjustment
From 6.25 to 9 in. off the belt (16 to 23 cm)
Specifications Top Lamp Orientation

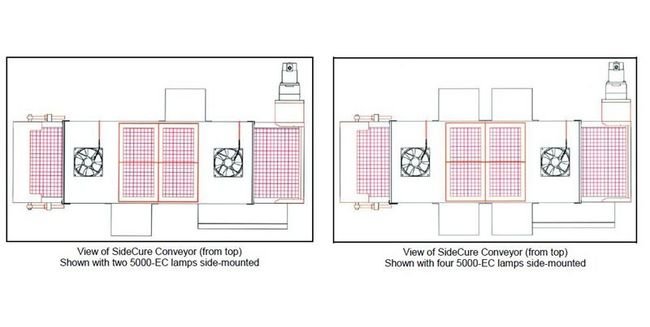

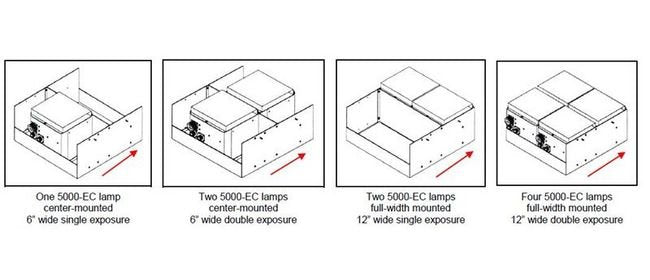

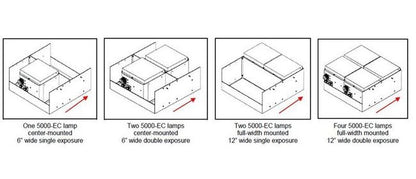

Accessories included to configure top for any of the following as shown in the diagrams on page two (including part guides that channel parts into the center 6 in for CM lamps): One CM, Two CM, Two FW, Four FWCM = Center MountedFW = Full Width
Specifications Width Of Area Illuminated From Top
6 to 12 in | 15 to 30 cm
