Dymax UVCS SideCure UV Curing Conveyor System
Dymax UVCS SideCure UV Curing Conveyor System
SKU:ULT-b496dd
Top-notch UV curing conveyor system with adjustable lamps and digital controls for precise curing results.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Dymax UVCS SideCure UV Curing Conveyor System
$12,999.99
Quantity: 1
Claim Your Seller Account
Dymax UVCS SideCure UV Curing Conveyor System
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

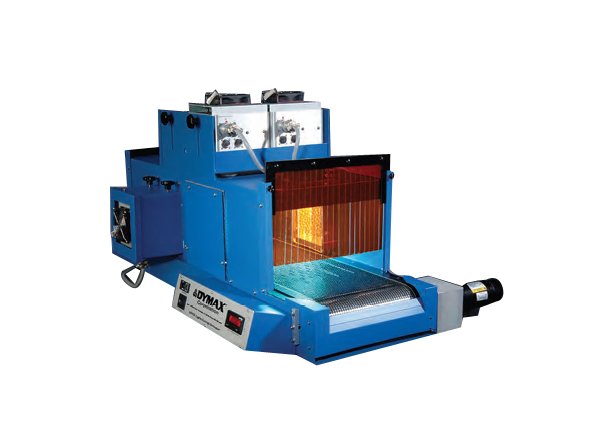

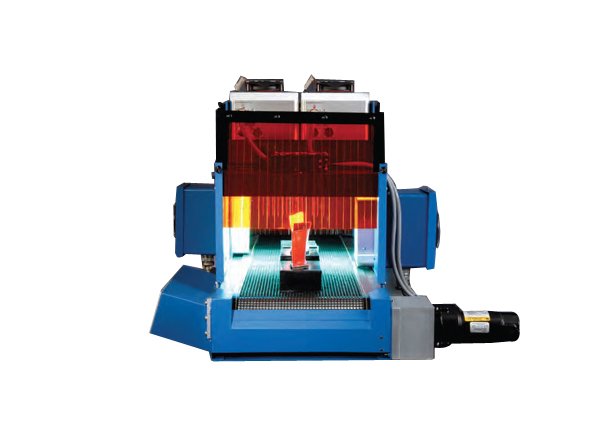

The Dymax UVCS SideCure Conveyor System is a top-of-the-line UV curing solution designed for adhesive and coating curing from the sides and top simultaneously. With adjustable lamp positions, precise digital controls, and the ability to handle parts up to 36" x 12" x 7", this system ensures controlled cure times and consistent results. Ideal for masking, medical, and electronic applications requiring 180° UV curing, it offers left, right, and top curing capabilities, making it versatile for various industrial needs.
Product Specifications
Accessories 0
Item # - 39215Item Name - Transportation CartDescription - Easily move your conveyor with one of these durable, rolling carts.Item # - 38560Item Name - Metal-Halide Bulb (Standard, UVA, Longwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps.Item # - 36970Item Name - Mercury Bulb (UVB, Shortwave)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 36658Item Name - Visible BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. The bulbs are primarily designed for curing UV/visible curing adhesives through UV-blocked, but transparent substrates.Item # - 36399Item Name - "D" Bulb (Standard)Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps.Item # - 36441Item Name - "H" BulbDescription - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.Item # - 38146Item Name - "V" Bulb
Features 0
Left, right, and top curing capabilityAdjustable top lamp height and side lamp positionAccurate digital belt control and readoutControlled and consistent cure timesAccepts parts up to 36 in x 12 in x 7 in (L x W x H)
Overall Dimensions Overall Height Not Including Lamps
21.5 in | 55 cm
Overall Dimensions Overall Length Not Including Lamps
51 in | 130 cm
Overall Dimensions Overall Width Not Including Lamps
30 in | 76 cm
Specifications 5000 Ec Maximum Ultraviolet A Uva Intensity
225 mW/cm² (320-390 nm) using ACCU-CAL⢠150
Specifications Belt Speeds
1 to 27.5 ft/min
Specifications Belt Width
12 in | 30 cm
Specifications Conveyor Voltage
220 V | 230 V
Specifications Crated Height
31 in | 79 cm
Specifications Crated Length
72 in | 183 cm
Specifications Crated Width
52 in | 132 cm
Specifications Curing Width
6 in | 12 in | 15 cm | 30 cm
Specifications Current
0.9 A

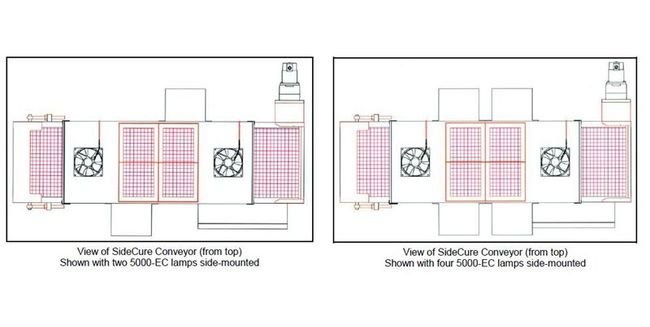

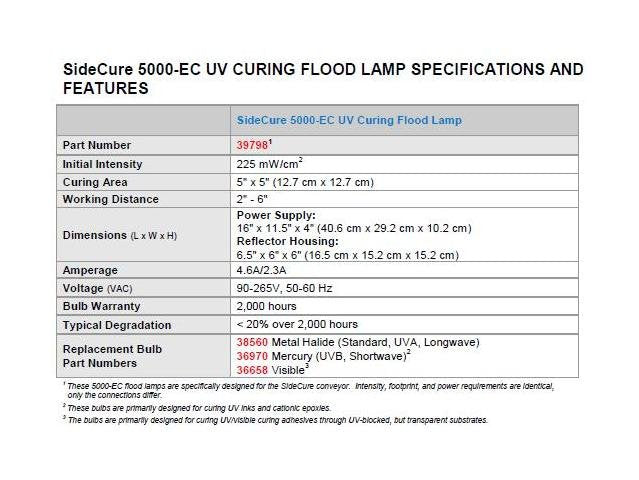

Specifications Lamps Sidecure 5000 Ecs Pn 39798
Up to six (sold separately)
Specifications Maximum Parts Height
7 in | 17.8 cm
Specifications Shipping Weight With Crates And Lamps
450 to 500 lb | 204 to 227 kg
Specifications Side Lamp Adjustment
From 3.5 to 6 in. off center (9 to 15 cm)
Specifications Top Lamp Adjustment
From 6.25 to 9 in. off the belt (16 to 23 cm)

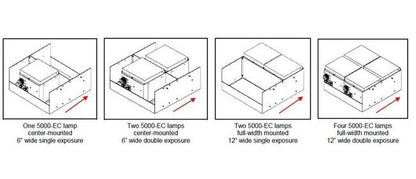

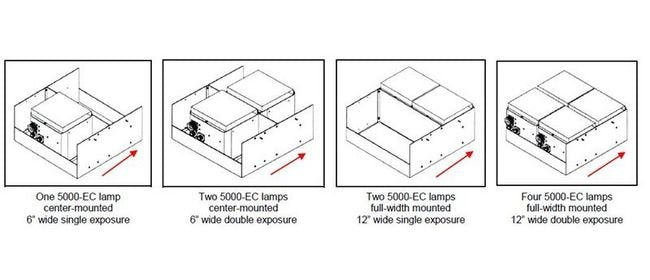

Specifications Top Lamp Orientation
Accessories included to configure top for any of the following as shown in the diagrams on page two (including part guides that channel parts into the center 6 in for CM lamps): One CM, Two CM, Two FW, Four FWCM = Center MountedFW = Full Width
Specifications Width Of Area Illuminated From Top
6 to 12 in | 15 to 30 cm
