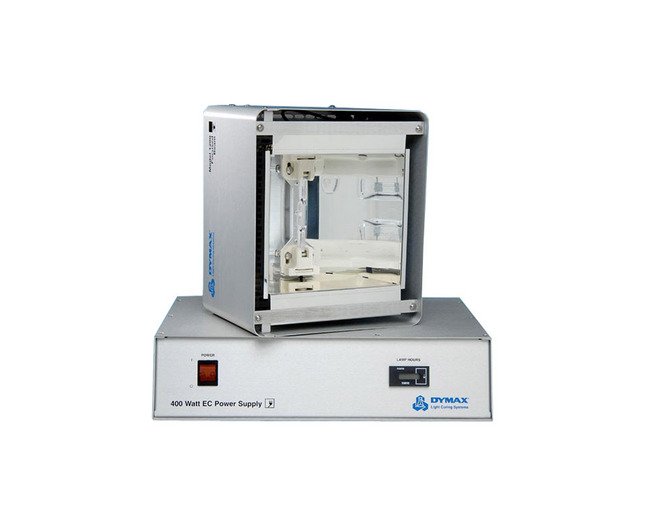

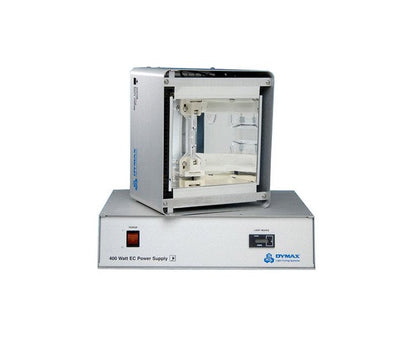

Dymax® 1200-EC UV Light-Curing Flood Lamp
Dymax® 1200-EC UV Light-Curing Flood Lamp
SKU:ULT-9f40f8
High-intensity Dymax® 1200-EC UV Flood Lamp for rapid and precise UV curing in adhesive, coating, and ink applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dymax® 1200-EC UV Light-Curing Flood Lamp
$1,899.99
Quantity: 1
Claim Your Seller Account
Dymax® 1200-EC UV Light-Curing Flood Lamp
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax® 1200-EC Series UV Light-Curing Flood Lamp System is designed to deliver high-intensity UV/Visible light for rapid curing of UV adhesives, coatings, and inks. With a focused 1 in x 6 in beam in the UV-A range, it ensures maximum cure depths and tack-free results. Featuring 100% shielding, safety interlock kit, and versatile application options, this lamp is ideal for bench-top or conveyor integration. Rugged construction, adjustable lamp height, and warranty-backed bulbs make it a reliable choice for efficient curing processes in various industries.
Product Specifications
Additional Information 0
EC-series flood-lamp systems are ideal for light curing large parts or curing many small parts simultaneously. With intensities ranging from 105-350 mW/cm2, Dymax® flood lamps are capable of curing most UV light-curable adhesives, sealants, and coatings, tack free in 30 seconds or less. These flood lamps can be incorporated into automated assembly systems or mounted onto conveyors. Dymax® flood units can also be used as turnkey bench-top units (with optional shutters).Broad-spectrum & LED Flood-curing SystemsFlood-style curing systems usually provide moderate to high-intensity light. These units have the advantage of being able to cure a tray of parts, or parts with large bonded or coated areas. These kinds of lamps are commonly integrated into existing manufacturing processes by mounting them above high-speed assembly lines. Fairly deep cures can be achieved by these relatively inexpensive units at 10- to 30-second exposure times. Wide-area flood lamps are used successfully to cure substrates that are somewhat heat-sensitive, such as certain plastics.Dymax® currently offers both broad-spectrum and LED flood curing systems to fit a wide variety of curing applications. Shutter assemblies, mounting stands, shields, and other accessories are available to order to create custom bench-top curing systems. CE marked units are available for manufacturers in Europe.
Broad Spectrum Flood Lamps 0
Dymax® broad-spectrum flood curing systems use moderate- to high-intensity (105-350 mW/cm2) UV/visible light to cure UV light-curable adhesives, coatings, and inks in as little as 5-30 seconds. Systems are available with 5" x 5" (127 mm x 127 mm) or 8" x 8" (203 mm x 203 mm) curing areas. They come standard with a 400 watt metal-halide bulb but can be outfitted with longwave, shortwave, UV, and visible replacement bulbs to fit unique applications. All bulbs have a long service life and come with a 2,000 hour warranty.
Features 0

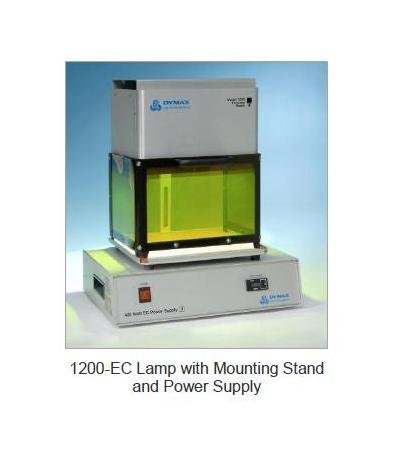

High-intensity 1 in x 6 in focused beam of UV lightTypical cure times of 10 to 30 secondsRugged brushed aluminum construction100 % shielding with safety interlock kitUV light shielding availableIdeal for UV curing trays of small partsBulbs are warranted for 2000 hoursCan be conveyor mounted or used as stand-alone, bench top system (with appropriate light shielding)4.5 in focal distanceAdjustable Lamp Height
Housing Dimensions Housing Height
7.5 in | 19.1 cm
Housing Dimensions Housing Length
9 in | 22.9 cm
Housing Dimensions Housing Width
10.5 in | 26.7 cm
Illuminated Dimensions Illuminated Area Length
1 in | 2.5 cm
Illuminated Dimensions Illuminated Area Width
6 in | 15.2 cm
Light Emitting Diode Led Flood Curing Systems 0
Dymax® LED flood lamp systems use high-intensity LEDs to cure a 5" x 5" (12.7 cm x 12.7 cm) area. Because these flood systems use a high-intensity LED as the curing source they produce faster cure times, more consistent frequency and intensity output, a cooler curing environment for thermally sensitive substrates, and longer bulb life than conventional arc lamps. Systems are available in three different wavelength arrays (365, 385, and 405 nm) so users can fully optimize the curing process between their light-curable material and the curing system.
Manufacturing Notes 0
Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL⢠50 radiometer.Measured 4.5 in from the bottom edge of the reflector housing.
Power Supply Dimensions Power Supply Height
4.25 in | 10.8 cm
Power Supply Dimensions Power Supply Length
12 in | 30.5 cm
Power Supply Dimensions Power Supply Width
16 in | 40.6 cm
Specifications Bulb Options
36658 : Visible | 36970 : Mercury (UVB, Shortwave) | 38560 : Metal Halide (Standard, UVA, Longwave)
Specifications Curing Area
1 x 6 in | 2.5 x 15.2 cm
Specifications Housing Weight
3.4 lb | 1.5 kg
Specifications Industry Standards
European Conformity
Specifications Input Frequency
47 to 63 Hz
Specifications Output Power
400 W
Specifications Power Supply
90 to 264 V
Specifications Power Supply Weight
12.25 lb | 5.6 kg
Specifications System Options

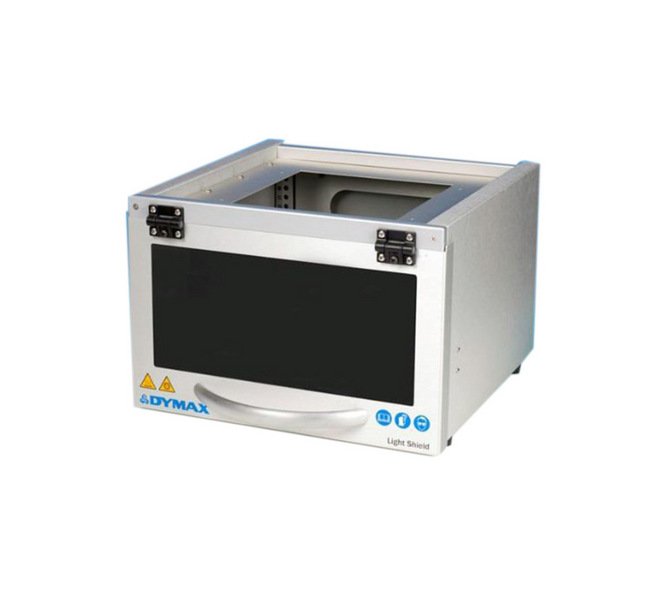

With EC Light Shield
Specifications Type

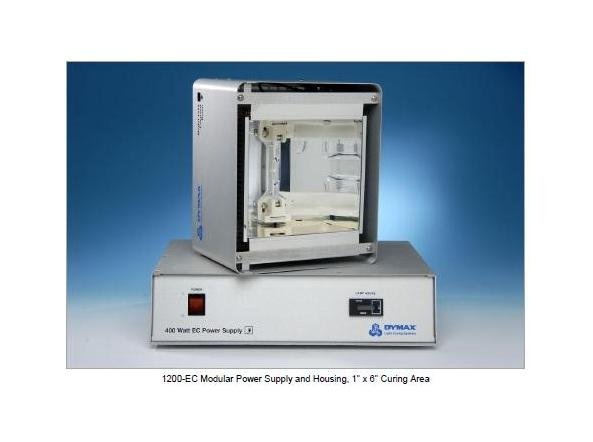

1200-EC Modular with Light Shield
Specifications Degradation
< 20 %
Specifications Intensity Output
350 mW/cm²
Specifications Ultraviolet A Uva Range
320 to 390 nm
Specifications Working Distance
5.08 to 15.24 cm | 2 to 6 in
