Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

ADH-c0757c

Precision pinch valve for medium/high viscosity adhesives with disposable fluid path & micrometer control. Compliant with European Conformity standards.

$399.99
$399.99
Sale

Initiate Order

Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

$399.99

Quantity: 1

Claim Your Seller Account

Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

Dymax® Model 455 Series Black Pinch Valve - 0.066in Tubing Size

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

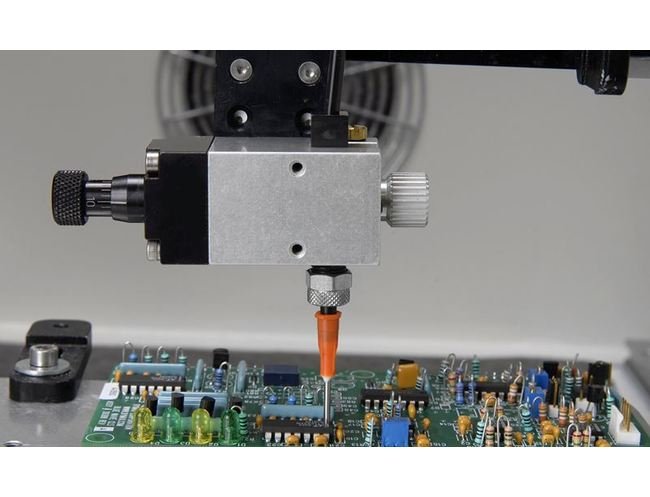

The Dymax® Model 455 Series Pinch Valve is a pneumatically operated, normally closed valve designed for precise dispensing of medium to high viscosity adhesives with extreme accuracy. It features a disposable fluid path that ensures contaminant-free dispensing, precise material flow control with a micrometer, and easy material changeover. With an anodized aluminum construction, this valve meets European Conformity standards and can integrate seamlessly into automated dispensing systems.

Product Specifications

Additional Information 0
This valve can be supplied with fluid paths of varying materials and sizes for optimum material compatibility.The dispensing valve can be integrated into an automated dispensing system or can be paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.

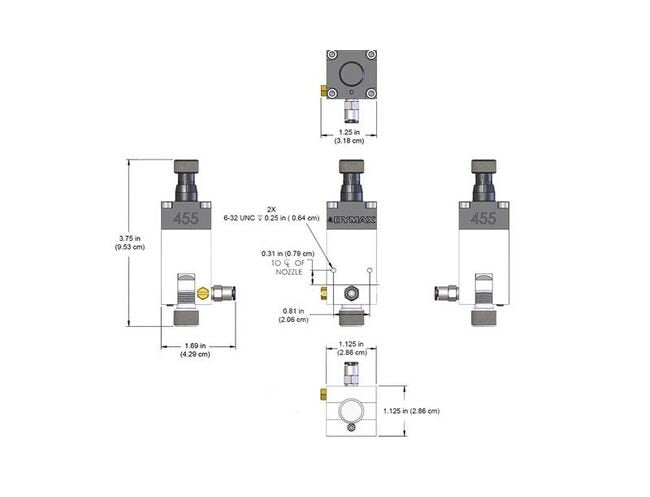

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
1.125 in | 2.86 cm
Dimensions Width
3.75 in | 9.53 cm
Features 0
Disposable fluid path that carriers materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processAllows for easy product changeover with minimal cleanupFluid never comes in contact with the valve's inner components, reducing maintenance and extending the valve life
Specifications Activation
3-Way Solenoid Valve | Valve Controller
Specifications Certifications
Global (CE Marked)
Specifications Construction Materials
Anodized Aluminum
Specifications Industry Standards
European Conformity
Specifications Material
Polytetrafluoroethylene (PTFE)
Specifications Maximum Inlet Fluid Pressure
100 psi | 6.89 bar
Specifications Maximum Operating Temperature
350 ºF | 177 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 6.35 mm
Specifications Operating Air Pressure
60 to 90 psi | 4.14 to 6.21 bar
Specifications Tubing Size
0.066 in
Specifications Type
Model 455
Specifications Flow Rate With Water
0.095 in (2.41 mm) ID tubing- 15 mL/second | 0.125 in (3.17 mm) ID tubing- 30 mL/second
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 Year from Purchase Date
Specifications Weight
5.5 oz | 146 g
