Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

ADH-22720f

Precision pinch valve for dispensing adhesives with micrometer control and disposable fluid path. Meets European Conformity standards.

$189.99
$189.99
Sale

Initiate Order

Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

$189.99

Quantity: 1

Claim Your Seller Account

Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

Dymax® Model 455 Series Pinch Valve - 0.095" Tubing Size, Black

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

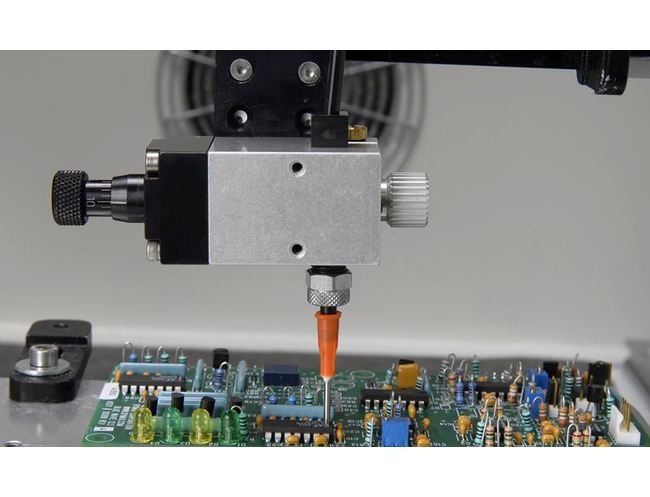

The Dymax® Model 455 Series Pinch Valve is a precision dispensing solution designed for medium to high viscosity light-curable adhesives, inks, and cyanoacrylates. With a micrometer control feature for precise material flow adjustment, a disposable fluid path that ensures contaminate-free dispensing, and easy material changeover, this valve offers consistent and accurate dispensing performance. Constructed with anodized aluminum and featuring a maximum operating temperature of 350ºF, this valve meets European Conformity standards and is CE Marked, making it a reliable choice for adhesive dispensing applications.

Product Specifications

Additional Information 0
This valve can be supplied with fluid paths of varying materials and sizes for optimum material compatibility.The dispensing valve can be integrated into an automated dispensing system or can be paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.

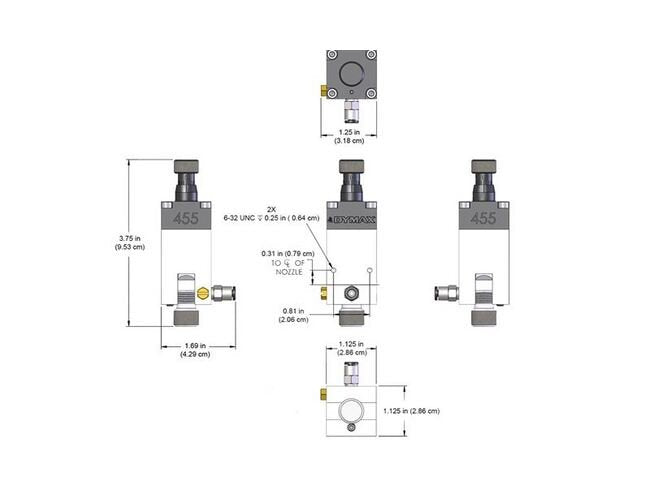

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
1.125 in | 2.86 cm
Dimensions Width
3.75 in | 9.53 cm
Features 0
Disposable fluid path that carriers materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processAllows for easy product changeover with minimal cleanupFluid never comes in contact with the valve's inner components, reducing maintenance and extending the valve life
Specifications Activation
3-Way Solenoid Valve | Valve Controller
Specifications Certifications
Global (CE Marked)
Specifications Construction Materials
Anodized Aluminum
Specifications Industry Standards
European Conformity
Specifications Material
Polytetrafluoroethylene (PTFE)
Specifications Maximum Inlet Fluid Pressure
100 psi | 6.89 bar
Specifications Maximum Operating Temperature
350 ºF | 177 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 6.35 mm
Specifications Operating Air Pressure
60 to 90 psi | 4.14 to 6.21 bar
Specifications Tubing Size
0.095 in
Specifications Type
Model 455
Specifications Flow Rate With Water
0.095 in (2.41 mm) ID tubing- 15 mL/second | 0.125 in (3.17 mm) ID tubing- 30 mL/second
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 Year from Purchase Date
Specifications Weight
5.5 oz | 146 g
