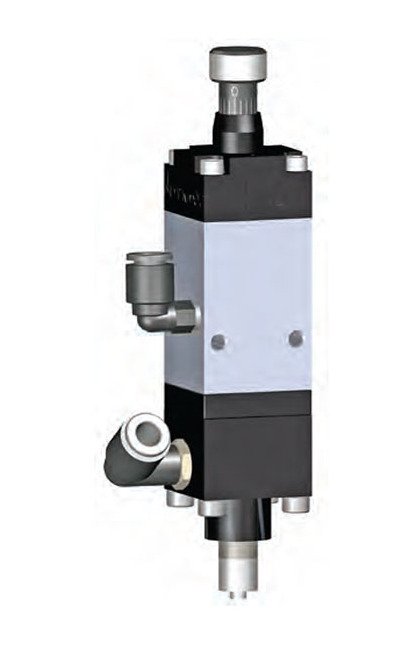

• Dymax® Model 485 Series Mountable Dispenser - Image 1
  • Dymax® Model 485 Series Mountable Dispenser - Image 2
  • Dymax® Model 485 Series Mountable Dispenser - Image 3
1 3
Dymax Corp. →

Dymax® Model 485 Series Mountable Dispenser

Dymax® Model 485 Series Mountable Dispenser

ADH-862973

Achieve precise fluid dispensing with Dymax® Model 485 Series Mountable Dispenser without Reservoir. Adjustable stroke settings ensure consistent results for various applications.

$249.99
$249.99
Sale

Initiate Order

Dymax® Model 485 Series Mountable Dispenser

Dymax® Model 485 Series Mountable Dispenser

$249.99

Quantity: 1

Claim Your Seller Account

Dymax® Model 485 Series Mountable Dispenser

Dymax® Model 485 Series Mountable Dispenser

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dymax® Model 485 Series Mountable Dispenser without Reservoir is a precision-engineered pneumatic needle valve designed to deliver precise dots or fine beads of low- to high-viscosity fluids. With adjustable stroke settings for volume control, this dispenser ensures consistent deposits. Operating at 60 to 80 psi, it is perfect for various applications like glob-top dispensing and medical-device manufacturing. Lightweight and easy to mount, it offers shot-to-shot consistency when paired with the DVC-345 controller, making it compatible with pressurized cartridges, bottles, and pails. Ideal for automated systems, it provides reliability and ease of use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Depth
1.13 in | 2.87 cm
Dimensions Height
5.14 in | 13.06 cm
Dimensions Width
1.13 in | 2.87 cm
Features 0
Stroke adjustment for precise control over dispensing volumesShot-to-shot consistency when used with the DVC-345 controllerLightweight, easy to handle and mount in automated or bench-top systemsAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardwareCompatible with most stand fluid packages and delivery systems
Specifications Activation
DVC-345 valve controller or 3-way solenoid valve
Specifications Alternating Current Ac Electrical Supply Controll
110 V | 220 V
Specifications Construction Materials
Stainless Steel (SS) (Wetted Path); Silicone (Wette Valve Seals) | Stainless Steel (SS), Anodized Aluminum (Body); Acetal
Specifications Industry Standards
European Conformity
Specifications Maximum Air Pressure
80 psi | 5.5 bar
Specifications Operating Air Pressure
60 to 80 psi | 4.1 to 5.5 bar
Specifications Valve Air Inlet Thread
10 to 32
Specifications Valve Fluid Inlet National Pipe Thread Npt
1/8 in | 3.2 mm
Specifications Valve Type
Normally Closed | Pneumatic Needle
Specifications Warranty
1 year
Specifications Weight
7.2 oz | 0.2 kg
