Dymax® SG-200 Super-Flow Handheld Sprayer
Dymax® SG-200 Super-Flow Handheld Sprayer
SKU:ADH-1b818a
High-powered sprayer for masking and coating applications with precise fluid control and immediate start/stop functionality. Ideal for high-volume and large-part tasks.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Dymax® SG-200 Super-Flow Handheld Sprayer
$549.99
Quantity: 1
Claim Your Seller Account
Dymax® SG-200 Super-Flow Handheld Sprayer
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

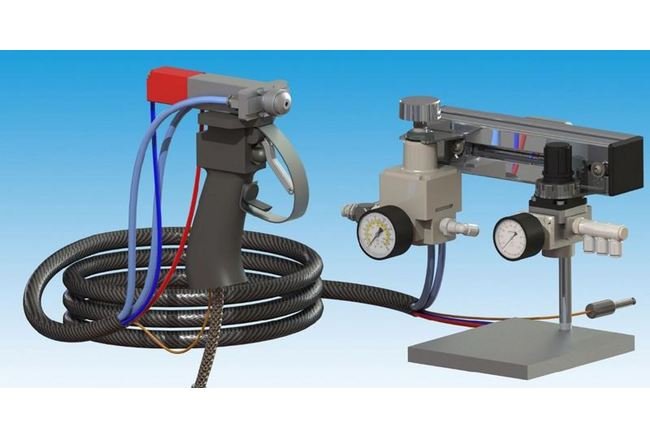

The Dymax® SG-200 Super-Flow Handheld Sprayer is a high-powered tool designed for masking and coating applications requiring a significantly higher flow rate. With a flow rate of 2.5 to 20 oz/min and the ability to handle viscosities between 5,000 cP and 80,000 cP, this system maximizes productivity for high-volume and large-part applications. Featuring a stainless steel needle valve for fluid flow control, dual-port atomizing nozzle design, and a dual-acting air cylinder for immediate start/stop functionality, the SG-200 offers symmetrical material delivery across a wide viscosity range.
Product Specifications
Accessories 0
Item # - T11146Description - DVC-345 ControllerCertifications - Global (CE Marked)Item # - T15454Description - Front Closing Stand with Drip CupCertifications - Global (CE Marked)Item # - T15698Description - Round Air CapCertifications - Global (CE Marked)Item # - T16307Description - Air Filter Regulator with Shut OffCertifications - Global (CE Marked)Item # - T18005Description - High-Pressure Hose KitCertifications - Global (CE Marked)Item # - T18020Description - Flat Spray Air CapCertifications - Global (CE Marked)Item # - T21287Description - Material Regulator ModuleCertifications - Global (CE Marked)
Additional Information 0
Handheld SG-200 spray gun with needle valve and controlling air regulatorsModel 345 controller for remote switching or automated useSpray gun standAir Line Kit - 1/4 in (6.3 mm) OD tubing with fitting on one endSelected reservoir for fluid package used with airline kit 1/4 in (6.3 mm) OD tubingFluid line kit - 6 ft of black 3/8 in (9.5 mm) OD tubingFluid line kits - 6 ft of black 1/4 in: (6.3 mm) OD tubing and 3/8 in - 1/4 in (9.5 mm - 6.3 mm) stem fitting insertsAir pressure regulator - includes three pressure gauges0-30 psi (0-2 bar) for very low- to medium-viscosity materials0-60 psi (0-4.1 bar) for medium-viscosity materials
Applications 0
Masking of turbines or other metal surfaces before surface treatmentsMasking medical implants before finishingCoating large parts with grease or other lubrication before assemblySpraying solvents for cleaning part surfaces
Features 0
Configurations for low- and high-viscosity applicationsCompatible with light-curable conformal coatings and masking materialsHigh-quality, light-blocking stainless or polyethylene fluid tubing for maximum flow rateHigh-quality, precision air regulators supplied for precise fluid control and air atomizationHandheld and machine-mount configuration flexibilityAir filter regulator includes an integrated shutoff valve and pressure exhaust to quickly and safely depressurize the system, eliminating the need for the operator to open and close the regulatorEasy-to-open, swing-down toggles on the bottle and pail reservoirsHigh-viscosity supply capabilities with optional 11:1 ratio positive-displacement ram pump
Specifications Air Filterregulator Pressure
0 to 100 psi | 0 to 6.9 bar
Specifications Cartridge Reservoir Capacity
Up to 1 gal
Specifications Certifications
Global (CE Marked)
Specifications Flow Rate
2.5 to 20 oz/min
Specifications Outside Diameter Od Tubing
1/4 in | 3/8 in | 6.3 mm | 9.5 mm
Specifications Package
Low Viscosity
Specifications Stem Fitting
1/4 to 3/8 in | 6.3 to 9.5 mm
Specifications Tube Color
Black
Specifications Tube Length Fluid Line
6 ft
Specifications Viscosity
<5,000 cP
