Dynamic Efficiency 3.500 N Electric Cylinder
Dynamic Efficiency 3.500 N Electric Cylinder
SKU:ELE-003762
Dynamic Efficiency 3.500 N Electric Cylinder - Robust, efficient, and precise lifting solution for industrial needs.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dynamic Efficiency 3.500 N Electric Cylinder
$599.99
Quantity: 1
Claim Your Seller Account
Dynamic Efficiency 3.500 N Electric Cylinder
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

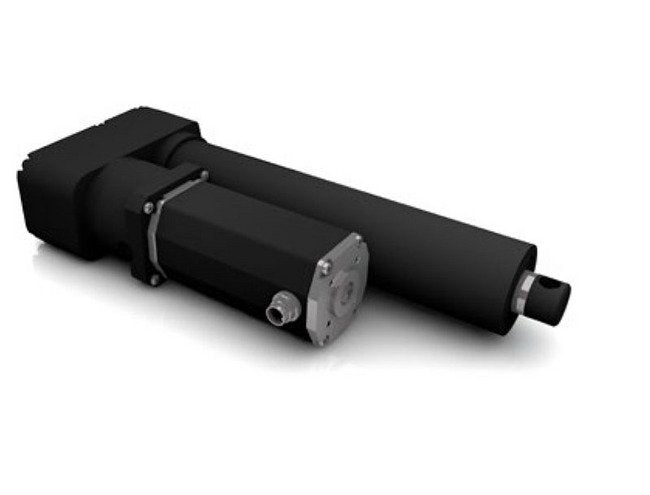

The Dynamic Efficiency 3.500 N Electric Cylinder offers robust and precise electric lifting capabilities, with strokes up to 700 mm. Featuring a Dunkermotoren BG 66x50 dPro motor, this cylinder ensures reliable performance with a constant force of 3.500 N and maximum traverse speed of 35 mm/s. With integrated gear, brake, and Gore Tex membrane, it provides smooth operation and overload protection. This compact alternative to pneumatic/hydraulic cylinders is packed with advanced features like various BUS interfaces, service interface, and lifetime lubrication, making it ideal for industrial applications requiring high force and efficiency.
Product Specifications
Additional Information Additional Information
Alternative to pneumatic/hydraulic cylindersCompact and space-savingEasy configuration of up to 14 positions (IO dMove motors)Various BUS interfaces available (CO, PN, EC, EI dPro motors)
Features Features
Service interfaceCANopen version availableEtherCAT version availableProfinet version availableRS485 version availableCondition monitoringDigital labelHigh/Premium efficiencyLifetime lubricationLow temperatureHigh forceIO modeOscilloscope software availableSupply voltageAnalog inputsDigital inputsDigital outputsBlock commutationVibration resistanceProgrammableSelf-lockingPositioning
Technical Specs Ambient Temperature
-40 to +85 ºC
Technical Specs Backlash
1.0 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
3.500 N
Technical Specs Duty Cycle 85 Second S On 340 Second S Off
20 %
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Gearbox Reduction
15.0204 i
Technical Specs Maximum Traverse Speed
35 mm/s
Technical Specs Motor Type
BG 66x50 dPro
Technical Specs Nominal Current
8.5 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Note For Nominal Direct Current Dc Voltage
On request 12V or 48V version
Technical Specs Note For Stroke Length
500/600/700 mm - On request
Technical Specs No Load Current
2 A
Technical Specs Overload Protection
4.900 N
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Salt Spray Test International Organization For S
192 h
Technical Specs Spindle Pitch
10 mm
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm
