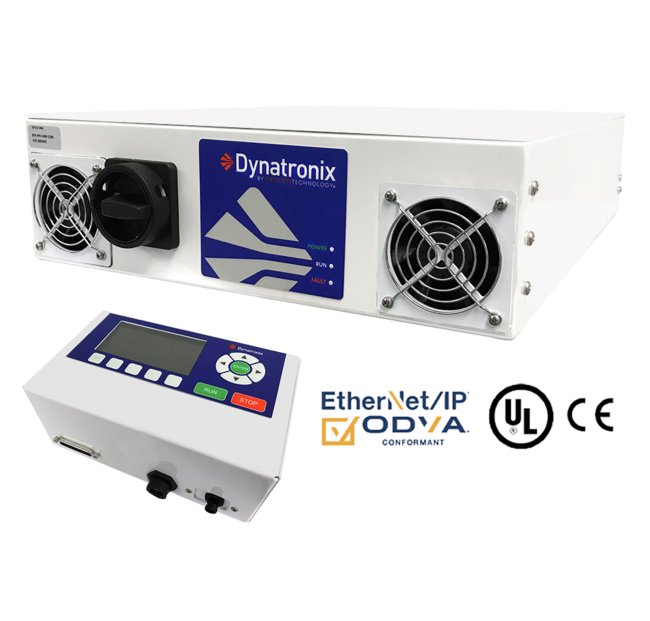

Dynatronix DTX-12000 High-Performance Power Supply with M-1 Controller
Dynatronix DTX-12000 High-Performance Power Supply with M-1 Controller
SKU:HEA-4b4715
Empower your processes with precise, low-ripple DC power using our DTX-12000 Power Supply & M-1 Controller.
Regular price
$14,500.00
Regular price
Sale price
$14,500.00
Unit price
per
Initiate Order
Dynatronix DTX-12000 High-Performance Power Supply with M-1 Controller
$14,500.00
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-12000 High-Performance Power Supply with M-1 Controller
$14,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial processes with the Dynatronix DTX-12000 Power Supply. Delivering accurate, ultra-low ripple DC power, this high-performance unit features high-efficiency silicon carbide components for energy efficiency. The modular design allows for scalable power levels up to 120,000W. Paired with the M-1 Controller offering digital controls, advanced data logging, and Ethernet/IP connectivity, the DTX-12000 ensures superior performance and premium power delivery for your critical applications.
Product Specifications
Specifications Cable Length
1 = 10 feet/3m (std) | 2 = 25 feet/7.5m | 3 = 50 feet/15m | 4 = 100 feet/30m
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE certified
Specifications Controller
M1F = Flush Mount, Rear exit | M1T = Tabletop Mount, Rear exit | M1W = Wall Mount, Bottom exit (std)
Specifications Cooling
Forced Air
Specifications Dimensions
35.35" H (3U) x 19" W x 26.1" D including 19" brackets and output busbars
Specifications Efficiency
91% and higher at rated output
Specifications Enclosure
Powder coated aluminum
Specifications Humidity
20-80% RH non-condensing
Specifications Manufacturer
Dynatronix
Specifications Maximum Installation Height
2000m
Specifications Maximum Rated Power
84,000 Watts
Specifications Note
*Number of required power modules to be connected in parallel by customer. Each power module requires AC supply. Parallel management done by M-1 Controller. Communication cables included. DC Connection not included - Customer Supplied.
Specifications Number Of Power Modules
7
Specifications Operating Temperature
32 F - 104 F / 0 C - 40 C, indoor use only
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | Blank = No options (std) | DL = Data Logging | EI = Ethernet/IP Communication
Specifications Output Current Amps
840
Specifications Output Current Regulation
Max. +/- 0.5% of setting for 10-100% of unit rating | Max. +/- 0.5% of unit rating for 3-10% of unit rating
Specifications Output Voltage Dc
100
Specifications Output Voltage Regulation
Max. +/- 0.5% of setting for 20-100% of unit rating | Max. +/- 0.5% of unit rating for 3-20% of unit rating
Specifications Power Factor At Rated Load
0.95 at rated output
Specifications Ripple Rms Noise
Less than 0.3% RMS of unit rating (0-5kHz)
Specifications Safe Operating Load Range
0 - 100% of unit voltage and current rating
Specifications Sealing
True Sealing with two 100% sealed air ducts
Specifications Storage Temperature
-4 F - 158 F / 20 C - 70 C
Specifications Voltage And Phase Required
380-480V +/-10%, 3ph, 50-60Hz
Specifications Warranty
2 Years
Specifications Watts
84,000 W
Specifications Weight
413.0 lbs
