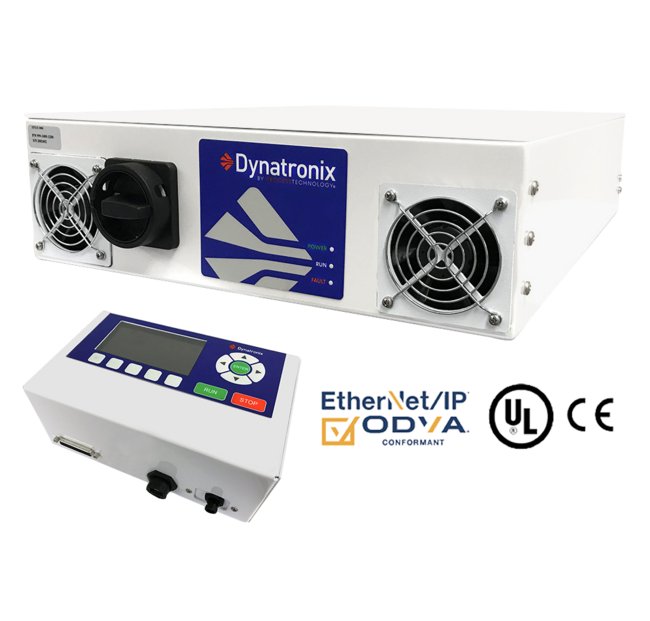

Empower your operations with the Dynatronix DTX-12000 Power Supply, a high-performance solution designed to elevate processes with precise DC power delivery. Featuring silicon carbide components and synchronous rectification for energy efficiency, this power supply offers scalable power levels up to 72,000 Watts. Paired with the M-1 Controller for advanced digital controls and connectivity options, this system ensures superior performance and reliability. With true sealing, forced air cooling, and extensive safety features, the Dynatronix DTX-12000 is ideal for industrial applications requiring dependable power sources.
Product Specifications
Specifications Cable Length
1 = 10 feet/3m (std) | 2 = 25 feet/7.5m | 3 = 50 feet/15m | 4 = 100 feet/30m
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE certified
Specifications Controller
M1F = Flush Mount, Rear exit | M1T = Tabletop Mount, Rear exit | M1W = Wall Mount, Bottom exit (std)
Specifications Cooling
Forced Air
Specifications Dimensions
30.30" H (3U) x 19" W x 26.1" D including 19" brackets and output busbars
Specifications Efficiency
91% and higher at rated output
Specifications Enclosure
Powder coated aluminum
Specifications Humidity
20-80% RH non-condensing
Specifications Manufacturer
Dynatronix
Specifications Maximum Installation Height
2000m
Specifications Maximum Rated Power
72,000 Watts
Specifications Note
*Number of required power modules to be connected in parallel by customer. Each power module requires AC supply. Parallel management done by M-1 Controller. Communication cables included. DC Connection not included - Customer Supplied.
Specifications Number Of Power Modules
6
Specifications Operating Temperature
32 F - 104 F / 0 C - 40 C, indoor use only
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | Blank = No options (std) | DL = Data Logging | EI = Ethernet/IP Communication
Specifications Output Current Amps
1,500
Specifications Output Current Regulation
Max. +/- 0.5% of setting for 10-100% of unit rating | Max. +/- 0.5% of unit rating for 3-10% of unit rating
Specifications Output Voltage Dc
48
Specifications Output Voltage Regulation
Max. +/- 0.5% of setting for 20-100% of unit rating | Max. +/- 0.5% of unit rating for 3-20% of unit rating
Specifications Power Factor At Rated Load
0.95 at rated output
Specifications Ripple Rms Noise
Less than 0.3% RMS of unit rating (0-5kHz)
Specifications Safe Operating Load Range
0 - 100% of unit voltage and current rating
Specifications Sealing
True Sealing with two 100% sealed air ducts
Specifications Storage Temperature
-4 F - 158 F / 20 C - 70 C
Specifications Voltage And Phase Required
380-480V +/-10%, 3ph, 50-60Hz
Specifications Warranty
2 Years
Specifications Watts
72,000 W
Specifications Weight
354.0 lbs
