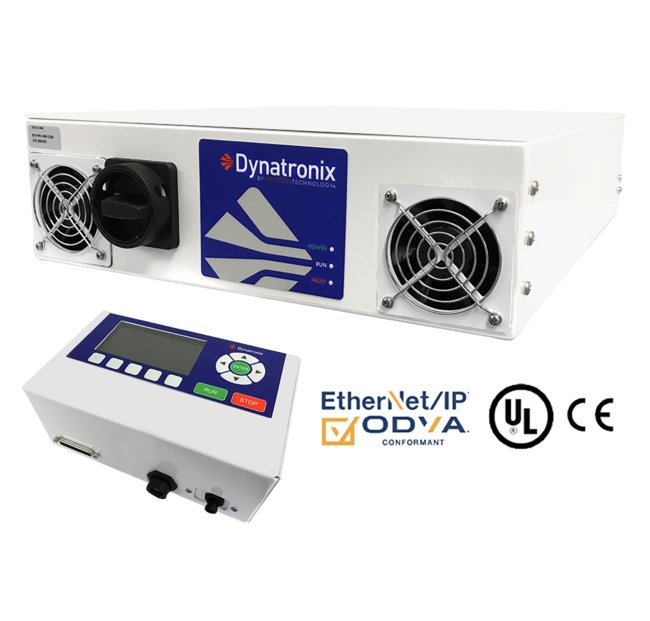

Dynatronix DTX-12000 Power Supply with M-1 Controller
Dynatronix DTX-12000 Power Supply with M-1 Controller
SKU:HEA-caa573
Experience precision and efficiency with the Dynatronix DTX-12000 Power Supply - Ideal for industrial processes.
Regular price
$13,500.00
Regular price
Sale price
$13,500.00
Unit price
per
Initiate Order
Dynatronix DTX-12000 Power Supply with M-1 Controller
$13,500.00
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-12000 Power Supply with M-1 Controller
$13,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial processes with the high-performance Dynatronix DTX-12000 Power Supply. This power supply boasts accurate, ultra-low ripple DC power, reducing energy consumption with high-efficiency silicon carbide components and synchronous rectification. The modular design allows for scalable power levels up to 120,000W. Paired with the advanced M-1 Controller featuring digital controls, data logging, and Ethernet/IP connectivity, the DTX-12000 ensures superior performance and control. With precise regulation, efficient cooling, and robust construction, this power supply is ideal for demanding industrial applications.
Product Specifications
Specifications Cable Length
1 = 10 feet/3m (std) | 2 = 25 feet/7.5m | 3 = 50 feet/15m | 4 = 100 feet/30m
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE certified
Specifications Controller
M1F = Flush Mount, Rear exit | M1T = Tabletop Mount, Rear exit | M1W = Wall Mount, Bottom exit (std)
Specifications Cooling
Forced Air
Specifications Dimensions
45.45" H (3U) x 19" W x 26.1" D including 19" brackets and output busbars
Specifications Efficiency
91% and higher at rated output
Specifications Enclosure
Powder coated aluminum
Specifications Humidity
20-80% RH non-condensing
Specifications Manufacturer
Dynatronix
Specifications Maximum Installation Height
2000m
Specifications Maximum Rated Power
108,000 Watts
Specifications Note
*Number of required power modules to be connected in parallel by customer. Each power module requires AC supply. Parallel management done by M-1 Controller. Communication cables included. DC Connection not included - Customer Supplied.
Specifications Number Of Power Modules
9
Specifications Operating Temperature
32 F - 104 F / 0 C - 40 C, indoor use only
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | Blank = No options (std) | DL = Data Logging | EI = Ethernet/IP Communication
Specifications Output Current Amps
4,500
Specifications Output Current Regulation
Max. +/- 0.5% of setting for 10-100% of unit rating | Max. +/- 0.5% of unit rating for 3-10% of unit rating
Specifications Output Voltage Dc
24
Specifications Output Voltage Regulation
Max. +/- 0.5% of setting for 20-100% of unit rating | Max. +/- 0.5% of unit rating for 3-20% of unit rating
Specifications Power Factor At Rated Load
0.95 at rated output
Specifications Ripple Rms Noise
Less than 0.3% RMS of unit rating (0-5kHz)
Specifications Safe Operating Load Range
0 - 100% of unit voltage and current rating
Specifications Sealing
True Sealing with two 100% sealed air ducts
Specifications Storage Temperature
-4 F - 158 F / 20 C - 70 C
Specifications Voltage And Phase Required
380-480V +/-10%, 3ph, 50-60Hz
Specifications Warranty
2 Years
Specifications Watts
108,000 W
Specifications Weight
531.0 lbs
