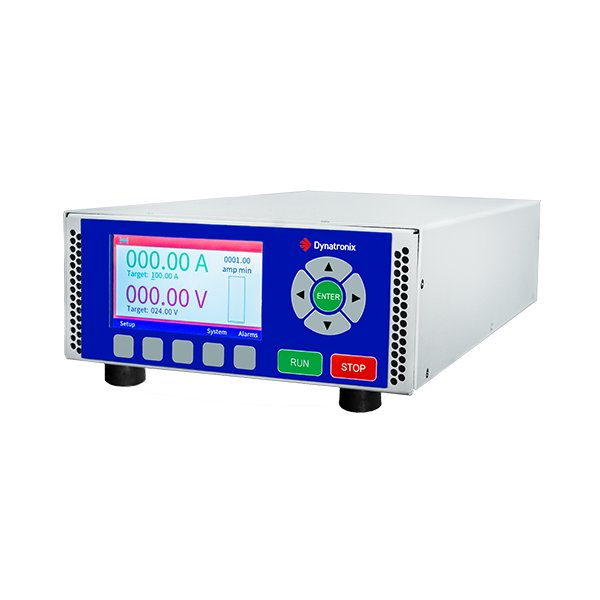

Dynatronix DTX-2400 DC Power Supply
Dynatronix DTX-2400 DC Power Supply
SKU:HEA-e4e663
Unleash precision plating with the Dynatronix DTX-2400 DC Power Supply. Amped with 2400 watts, it offers unmatched control and efficiency for impeccable results.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
Dynatronix DTX-2400 DC Power Supply
$1,899.00
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-2400 DC Power Supply
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled precision plating with the Dynatronix DTX-2400 DC Power Supply, the latest switch-mode technology powerhouse in the market. With a compact design packing 2400 watts, this power supply offers ampere time & real time cycle control, output ramp, Ethernet & analog communications, and more. Ideal for government and institutional buyers seeking efficiency and reliability in their processes.
Product Specifications
Specifications Amp Meter Resolution
0.01
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE compliance
Specifications Controller
Multi-button, menu driven 4.3" full color display
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
3.43" H x 8.45" W x 18" D
Specifications Efficiency
>91% at full load (2400 watts)
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of the maximum voltage rating of the power supply
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of the maximum current rating of the power supply
Specifications Manufacturer
Dynatronix
Specifications Maximum Rated Power
120 Watts
Specifications Note
Input voltage of 110-120VAC will limit output power to a maximum of 1200 watts
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | BK = Bail Kit | Blank = No options (std) | R = Reversing | S = Output Studs Threaded 1/4-20
Specifications Output Current Amps
10
Specifications Output Voltage Dc
12
Specifications Power Factor Correction
0.99 typical at 115VAC and 230VAC
Specifications Ripple
<1% RMS from 10%-100% of maximum rated output
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
0.01
Specifications Warranty
2 Years
Specifications Watts
120 W
Specifications Weight
11.0 lbs
