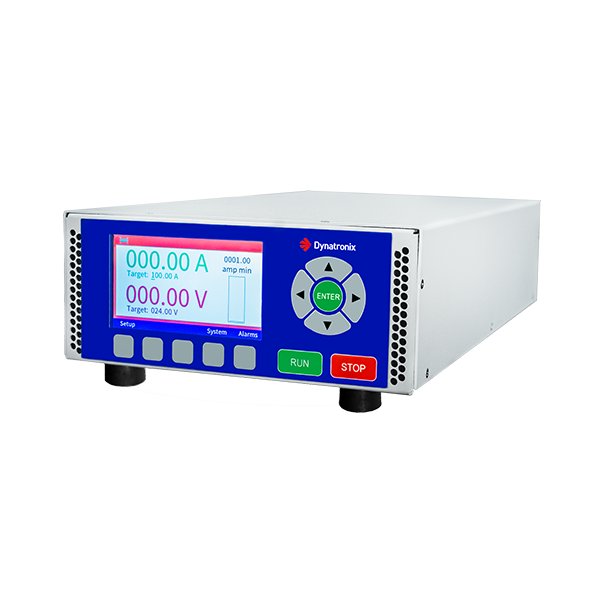

Dynatronix DTX-2400 Power Supply
Dynatronix DTX-2400 Power Supply
SKU:HEA-979e65
Power up your plating process with the Dynatronix DTX-2400 Power Supply. 2400 watts of pure performance in a compact build.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Dynatronix DTX-2400 Power Supply
$1,699.99
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-2400 Power Supply
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision plating like never before with the Dynatronix DTX-2400 Power Supply. Boasting 2400 watts of output power in a compact design, this DC power supply features switch mode technology for efficiency and performance. With ampere time & real-time cycle control, output ramp, Ethernet communications, and more, it's a powerhouse suitable for institutional and industrial applications. ETL listed to UL 61010-1, CSA, C22.2#61010-1, and CE compliant, this power supply meets stringent industry standards for safety and quality.
Product Specifications
Specifications Amp Meter Resolution
0.01
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE compliance
Specifications Controller
Multi-button, menu driven 4.3" full color display
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
3.43" H x 8.45" W x 18" D
Specifications Efficiency
>91% at full load (2400 watts)
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of the maximum voltage rating of the power supply
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of the maximum current rating of the power supply
Specifications Manufacturer
Dynatronix
Specifications Maximum Rated Power
240
Specifications Note
Input voltage of 110-120VAC will limit output power to a maximum of 1200 watts
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | BK = Bail Kit | Blank = No options (std) | R = Reversing | S = Output Studs Threaded 1/4-20
Specifications Output Current Amps
10
Specifications Output Voltage Dc
24
Specifications Power Factor Correction
0.99 typical at 115VAC and 230VAC
Specifications Ripple
<1% RMS from 10%-100% of maximum rated output
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
0.01
Specifications Warranty
2 Years
Specifications Watts
240 W
Specifications Weight
11.0 lbs
