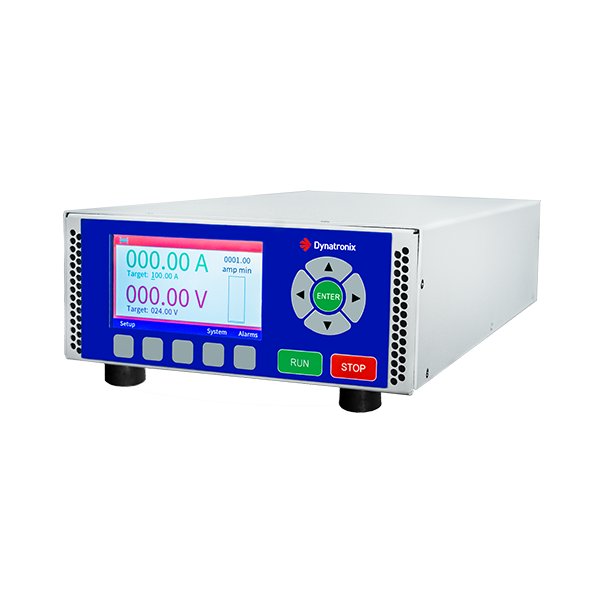

Dynatronix DTX-2400 Series Power Supply
Dynatronix DTX-2400 Series Power Supply
SKU:HEA-f3f2ad
Experience precision plating like never before with the Dynatronix DTX-2400 Series Power Supply. Unmatched efficiency and power in a compact design.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Dynatronix DTX-2400 Series Power Supply
$2,899.99
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-2400 Series Power Supply
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dynatronix DTX-2400 Series Power Supply is a cutting-edge DC power convertor designed for precision plating applications. With a maximum rated power of 2400 watts, this powerhouse features switch-mode technology, ampere time & real time cycle control, Ethernet & analog communications, and more. Its compact footprint and environmentally sealed enclosure make it efficient and durable. Ideal for institutional and government buyers seeking top-notch performance and reliability.
Product Specifications
Specifications Amp Meter Resolution
0.01
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE compliance
Specifications Controller
Multi-button, menu driven 4.3" full color display
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
3.43" H x 8.45" W x 18" D
Specifications Efficiency
>91% at full load (2400 watts)
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of the maximum voltage rating of the power supply
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of the maximum current rating of the power supply
Specifications Manufacturer
Dynatronix
Specifications Maximum Rated Power
2400 Watts
Specifications Note
Input voltage of 110-120VAC will limit output power to a maximum of 1200 watts
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | BK = Bail Kit | Blank = No options (std) | R = Reversing | S = Output Studs Threaded 1/4-20
Specifications Output Current Amps
50
Specifications Output Voltage Dc
48
Specifications Power Factor Correction
0.99 typical at 115VAC and 230VAC
Specifications Ripple
<1% RMS from 10%-100% of maximum rated output
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
0.01
Specifications Warranty
2 Years
Specifications Watts
2400 W
Specifications Weight
11.0 lbs
