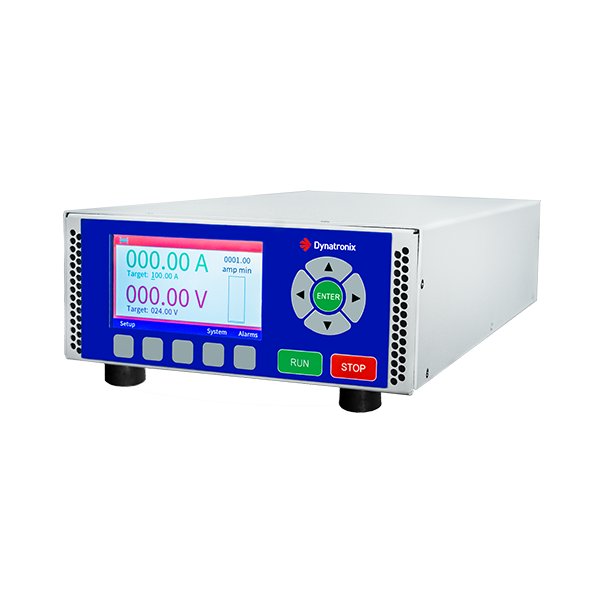

Dynatronix DTX-2400 Series Power Supply
Dynatronix DTX-2400 Series Power Supply
SKU:HEA-7f32a4
Cutting-edge 2400W DC power supply for precision plating with switch-mode technology, ampere time control, multiple communication options & more.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dynatronix DTX-2400 Series Power Supply
$1,899.99
Quantity: 1
Claim Your Seller Account
Dynatronix DTX-2400 Series Power Supply
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the cutting-edge Dynatronix DTX-2400 Series Power Supply, a precision plating powerhouse featuring 2400 watts output power. With switch-mode technology and compact design, it offers efficient space utilization in an environmentally sealed enclosure. This DC power supply boasts ampere time & real time cycle control, Ethernet & analog communications, power factor correction, and more, setting a new standard in plating equipment.
Product Specifications
Specifications Amp Meter Resolution
0.01
Specifications Certifications
ETL listed to UL 61010-1 and CSA, C22.2#61010;-1, CE compliance
Specifications Controller
Multi-button, menu driven 4.3" full color display
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
3.43" H x 8.45" W x 18" D
Specifications Efficiency
>91% at full load (2400 watts)
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of the maximum voltage rating of the power supply
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of the maximum current rating of the power supply
Specifications Manufacturer
Dynatronix
Specifications Maximum Rated Power
2400 Watts
Specifications Note
Input voltage of 110-120VAC will limit output power to a maximum of 1200 watts
Specifications Options
AC = Advanced Process Control, Recipe, 200Hz | AS = Analog Signals 0-10V or 4-20mA | BK = Bail Kit | Blank = No options (std) | R = Reversing | S = Output Studs Threaded 1/4-20
Specifications Output Current Amps
100
Specifications Output Voltage Dc
24
Specifications Power Factor Correction
0.99 typical at 115VAC and 230VAC
Specifications Ripple
<1% RMS from 10%-100% of maximum rated output
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
0.01
Specifications Warranty
2 Years
Specifications Watts
2400 W
Specifications Weight
11.0 lbs
