Dynatronix MicroStar DC Power Supply
Dynatronix MicroStar DC Power Supply
SKU:HEA-042698
Flexibility and precision in metal finishing with the Dynatronix MicroStar DC Power Supply Series.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dynatronix MicroStar DC Power Supply
$799.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DC Power Supply
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

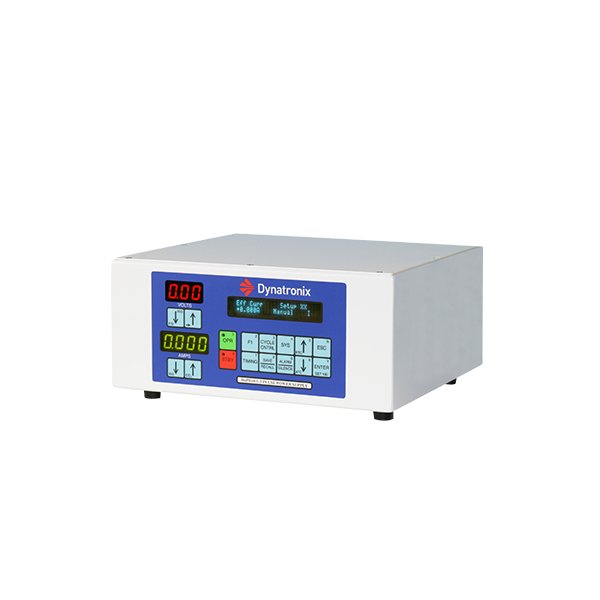

The Dynatronix MicroStar DC Power Supply Series offers unparalleled flexibility and control for metal finishing applications. With multiple control options, a compact switch mode design, and a rugged powder-coated enclosure, these power supplies are ideal for both laboratory R&D and general industrial use. Featuring precise output voltage and current ranges, along with advanced features like temperature stability and digital meter accuracy, the MicroStar series ensures reliable performance and easy operation. Whether for research facilities or manufacturing plants, these power supplies deliver unmatched reliability and accuracy.

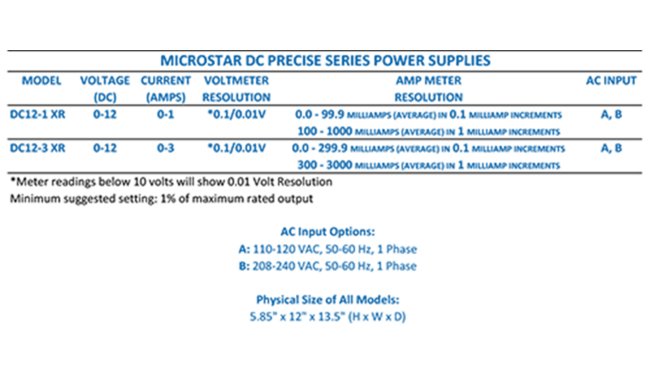

Product Specifications
Specifications Amp Meter Resolution
0.0 - 299.9 Milliamps (Average) in 0.1 Milliamp Increments | 300 - 3000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up and process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution.Minimum Suggested Setting: 1% of maximum rated output.
Specifications Options
Analog interface board: 0-12V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Current Amps
0-3
Specifications Output Voltage Dc
0-12
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
