Dynatronix MicroStar DC Power Supply
Dynatronix MicroStar DC Power Supply
SKU:HEA-c3463e
Experience precision and versatility with Dynatronix MicroStar DC Power Supplies, designed for optimal performance in metal finishing applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dynatronix MicroStar DC Power Supply
$899.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DC Power Supply
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

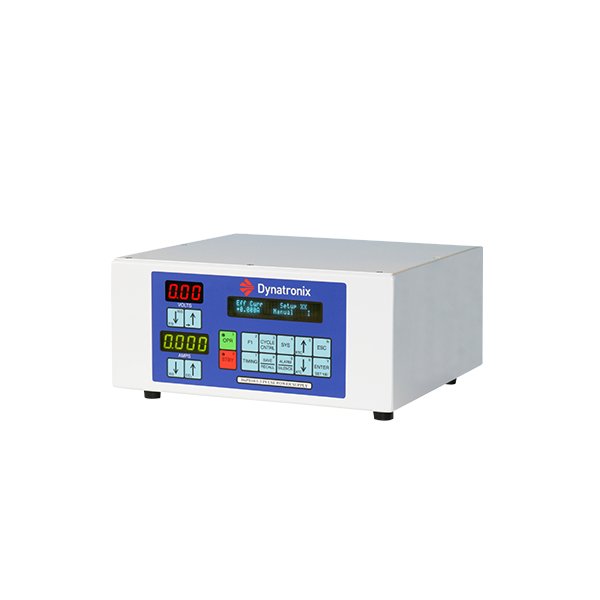

The Dynatronix MicroStar DC Power Supply, part of Process Technology's renowned product line, offers unparalleled flexibility and control options. Featuring a switch mode design in a rugged, powder-coated enclosure, these power supplies are ideal for diverse metal finishing applications. With a range of 0-12V output voltage and 0-1A output current, precise control and accuracy are guaranteed. The MicroStar series ensures simplicity in operation while packed with advanced features, making it perfect for laboratory, R&D, or general industrial use.

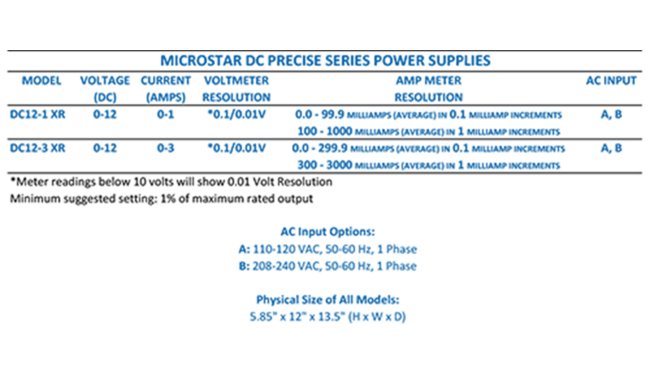

Product Specifications
Specifications Amp Meter Resolution
0.0 - 99.9 Milliamps (Average) in 0.1 Milliamp Increments | 100 - 1000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up and process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution.Minimum Suggested Setting: 1% of maximum rated output.
Specifications Options
Analog interface board: 0-12V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Current Amps
0-1
Specifications Output Voltage Dc
0-12
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
