Dynatronix MicroStar DC Power Supply
Dynatronix MicroStar DC Power Supply
SKU:HEA-742e30
Get precise control with Dynatronix MicroStar DC Power Supplies. Ideal for metal finishing applications with 0-100V output and advanced features for quality results.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dynatronix MicroStar DC Power Supply
$699.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DC Power Supply
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

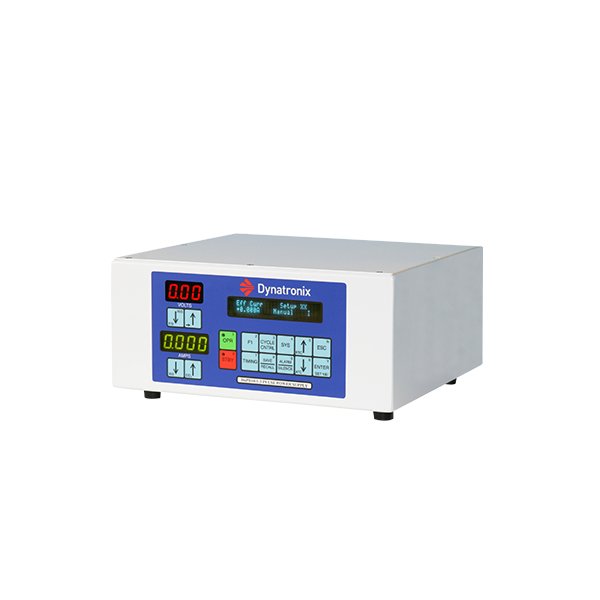

The Dynatronix MicroStar DC Precise Power Supplies, part of the Process Technology Electric Immersion Heaters & Controls line, offer unmatched flexibility and control for metal finishing applications. With a switch mode design, these compact power supplies deliver 0-100 volts and 0-1 ampere output range, perfect for laboratory, R&D, and general metal finishing use. Featuring a rugged, powder-coated enclosure, these power supplies are simple to use yet packed with advanced features. The MicroStar series is equipped with a host control program, digital meter accuracy, temperature stability, and options like recipe storage and ramp timer. With a warranty of 2 years, these power supplies ensure reliability and precision in your processes.

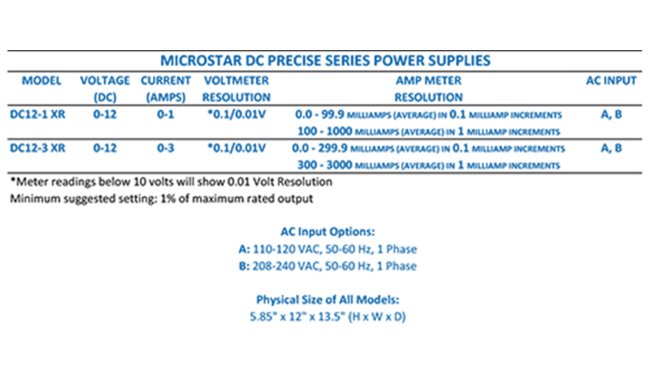

Product Specifications
Specifications Amp Meter Resolution
0.0 - 299.9 Milliamps (Average) in 0.1 Milliamp Increments | 300 - 3000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up and process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
7" H x 17" W x 22" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution.Minimum Suggested Setting: 1% of maximum rated output.
Specifications Options
Analog interface board: 0-12V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Current Amps
0-1
Specifications Output Voltage Dc
0-100
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
