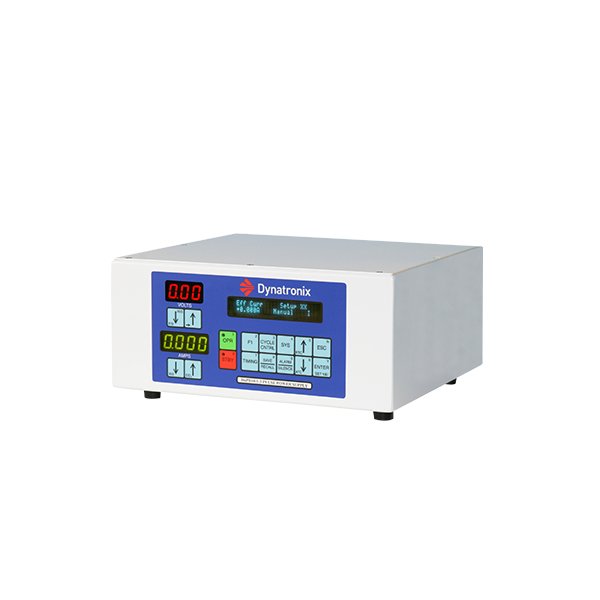

Dynatronix MicroStar DC Power Supply
Dynatronix MicroStar DC Power Supply
SKU:HEA-433bdc
Enhance metal finishing with the versatile Dynatronix MicroStar DC Power Supply. Precise control, compact design, ideal for lab & R&D.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dynatronix MicroStar DC Power Supply
$799.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DC Power Supply
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your metal finishing with the Dynatronix MicroStar DC Power Supply. This versatile and robust power supply offers precise control with a switch mode design, multiple interface options, and a compact footprint. Whether for laboratory research or R&D applications, the MicroStar series delivers 0-50V output voltage, 0-1A output current, and features such as convection cooling, digital meter accuracy, and temperature stability. With a durable, powder-coated enclosure and options for customized process control, this power supply is ideal for various industrial needs.
Ready to Grow Without Cash Flow Constraints?

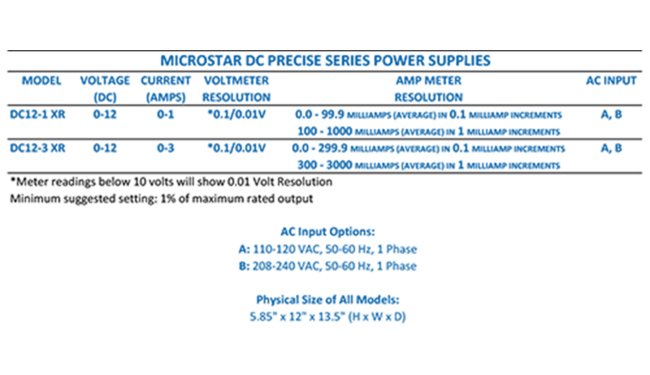

Product Specifications
Specifications Amp Meter Resolution
0.0 - 299.9 Milliamps (Average) in 0.1 Milliamp Increments | 300 - 3000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up and process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution.Minimum Suggested Setting: 1% of maximum rated output.
Specifications Options
Analog interface board: 0-12V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Current Amps
0-1
Specifications Output Voltage Dc
0-50
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
