Experience flexibility and power with the Dynatronix MicroStar DP 30 Amp Pulse Power Supply. Ideal for metal finishing, it offers DC, High Frequency Pulse, or Pulse Reverse modes with 0-30 amps output and advanced digital controls.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Dynatronix MicroStar DP 30 Amp Pulse Power Supply
$2,799.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DP 30 Amp Pulse Power Supply
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

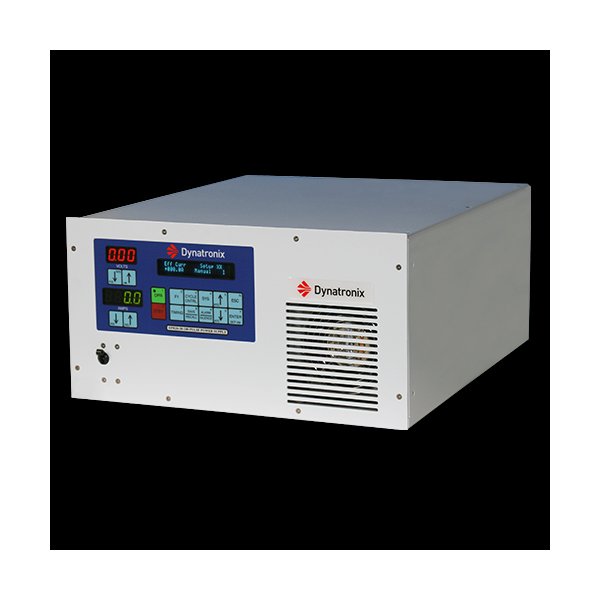

The Dynatronix MicroStar DP Series Pulse Power Supplies are the epitome of flexibility and efficiency. Ideal for general metal finishing applications, these power supplies offer DC, High Frequency Pulse, or Pulse Reverse modes. With a compact benchtop design, 0-30 amps output, and 20-40 volts, these units pack a powerful 4,000 watts. Featuring precise metering, forced air cooling, and comprehensive digital controls, they ensure precise and reliable performance for a wide range of industrial applications.

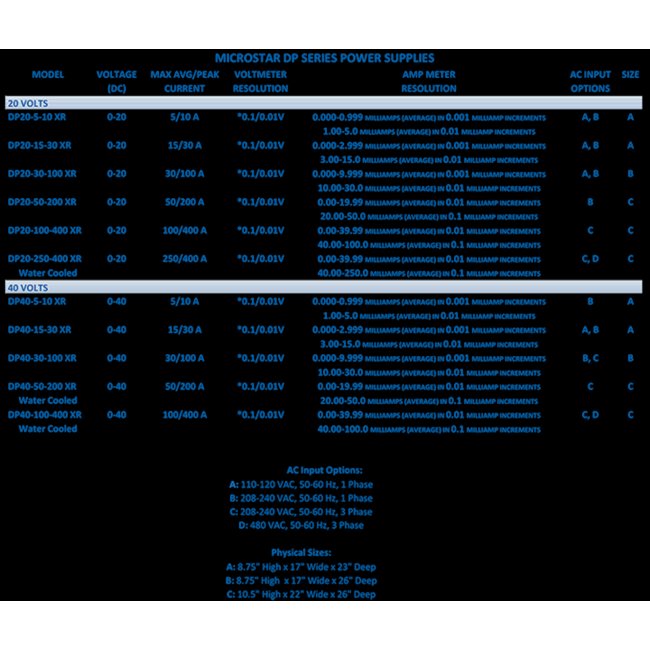

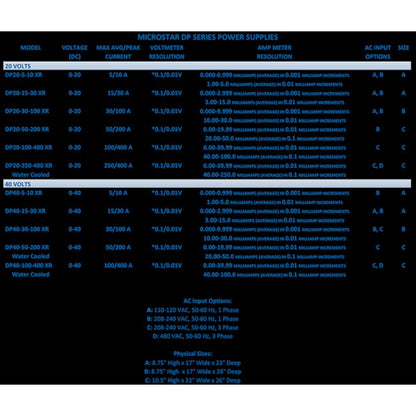

Product Specifications
Specifications Amp Meter Resolution
0.000 - 9.999 Amps (Average) in 0.001 Amp Increments | 10.00 - 30.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 26" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
30/100
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-20
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
