Dynatronix MicroStar DP Pulse Power Supply
Dynatronix MicroStar DP Pulse Power Supply
SKU:HEA-2b631a
Versatile Dynatronix MicroStar DP Pulse Power Supply for metal finishing applications. Offers precise control and reliability.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Dynatronix MicroStar DP Pulse Power Supply
$2,999.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DP Pulse Power Supply
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

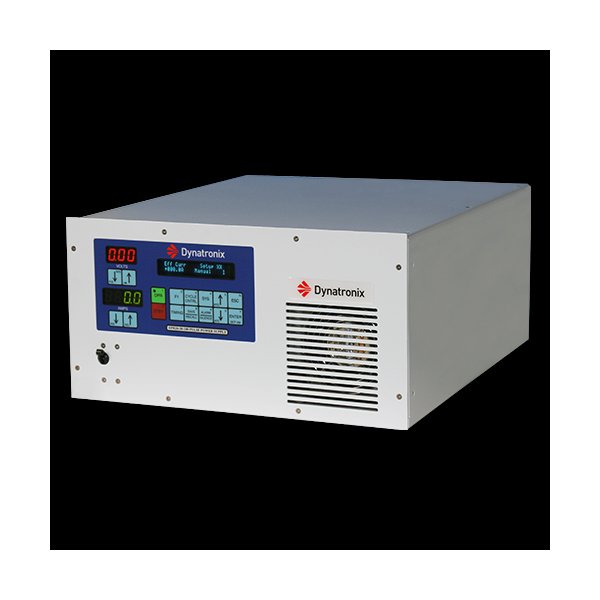

The Dynatronix MicroStar DP Series Pulse Power Supply is a versatile solution suitable for general metal finishing applications. This DC power supply offers multiple modes including High Frequency Pulse and Pulse Reverse, with a power output of 4,000 watts, 0-30 amps, and 20-40 volts. It features forced-air cooling, precise digital meter readings, temperature stability, and extensive control options like recipe storage and remote control. With dimensions of 8.75" H x 17" W x 23" D, this benchtop unit is designed for ease of use and reliability in various industrial settings.
Ready to Grow Without Cash Flow Constraints?

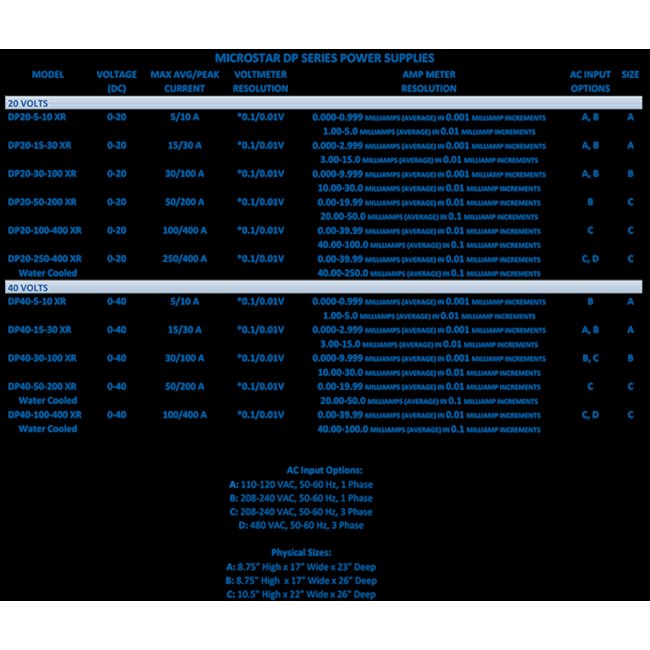

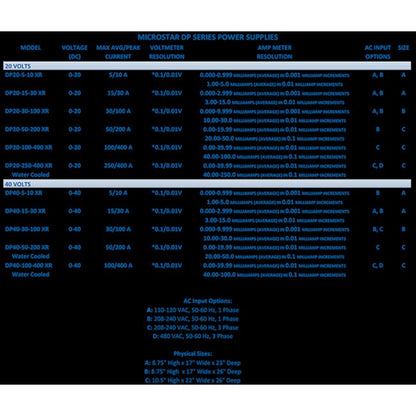

Product Specifications
Specifications Amp Meter Resolution
0.000 - 0.999 Amps (Average) in 0.001 Amp Increments | 1.00 - 5-00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
5/10
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-20
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
