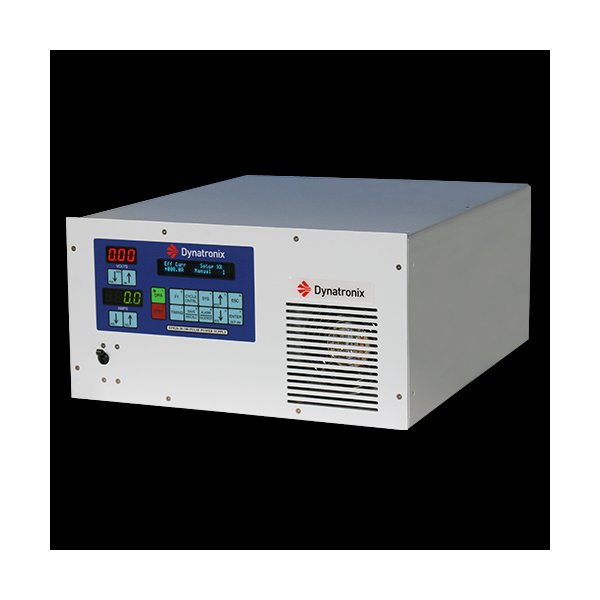

The Dynatronix MicroStar DP Series Pulse Power Supply is a versatile solution designed for general metal finishing applications. This benchtop unit offers DC, High Frequency Pulse (HFP), or Pulse Reverse modes with a maximum output voltage of 40V and a peak current of 100A. Featuring forced air cooling and precise digital meter accuracy, this power supply ensures stable performance with minimal ripple. With options for process control, data logging, and remote operation, the Dynatronix MicroStar DP Series is both user-friendly and feature-rich, making it ideal for industrial applications.

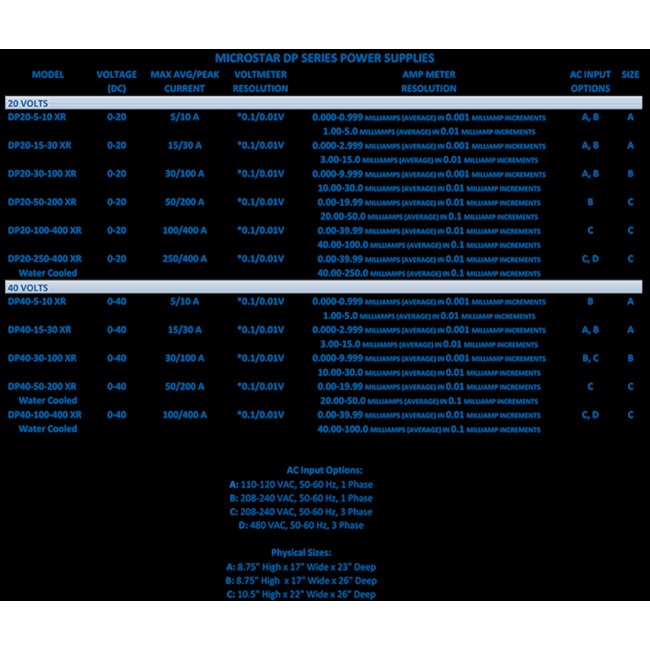

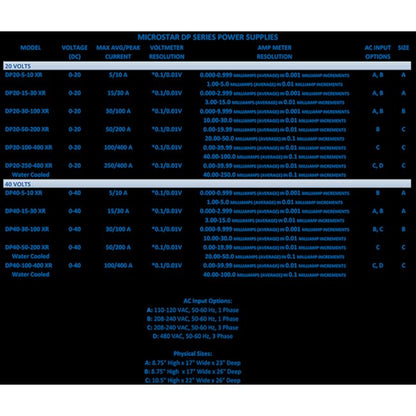

Product Specifications
Specifications Amp Meter Resolution
0.000 - 9.999 Amps (Average) in 0.001 Amp Increments | 10.00 - 30.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 26" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
30/100
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-40
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
208-240V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 3 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
