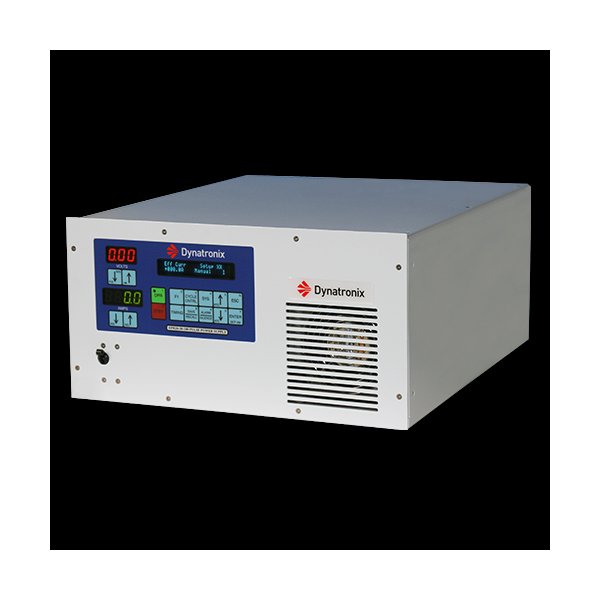

The Dynatronix MicroStar DP Series Pulse Power Supplies by Process Technology offer unparalleled flexibility and precision control for various metal finishing applications. This versatile DC power supply features output voltage ranging from 0-20 volts, with a max average/peak current of 15/30 amps. Equipped with forced air cooling and advanced monitoring capabilities including high-resolution voltmeter and ammeter. The unit boasts exceptional temperature stability, load regulation, and digital meter accuracy, ensuring reliable and efficient operation. With options for additional accessories and a 2-year warranty, this power supply is a top choice for demanding industrial environments.

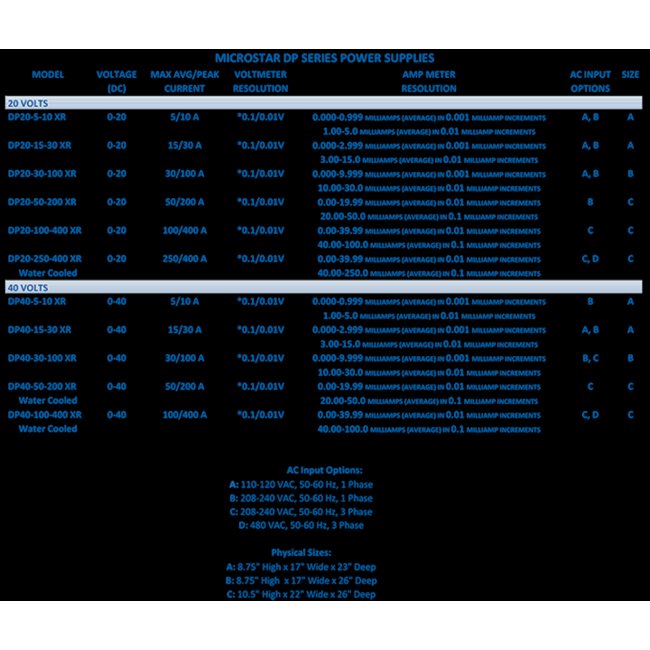

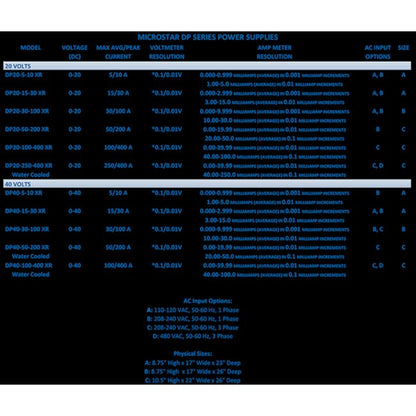

Product Specifications
Specifications Amp Meter Resolution
0.000 - 2.999 Amps (Average) in 0.001 Amp Increments | 3.00 - 15.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
15/30
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-20
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
