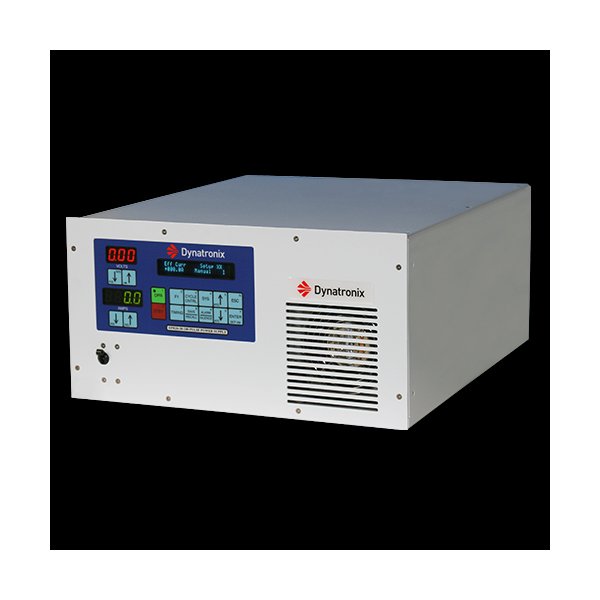

The Dynatronix MicroStar DP Series Pulse Power Supply is a versatile solution ideal for metal finishing applications. Offering DC, High Frequency Pulse (HFP), or Pulse Reverse modes, this air-cooled benchtop unit delivers 0-40V and 5/10A output. With precise meter resolutions, robust cooling, and compact dimensions, it ensures efficient operation. Featuring advanced controls, temperature stability, and low ripple, this power supply is user-friendly and reliable. Options include rack mount kits, analog interfaces, master/slave control, and more. Backed by a 2-year warranty, it's a powerhouse for industrial settings.

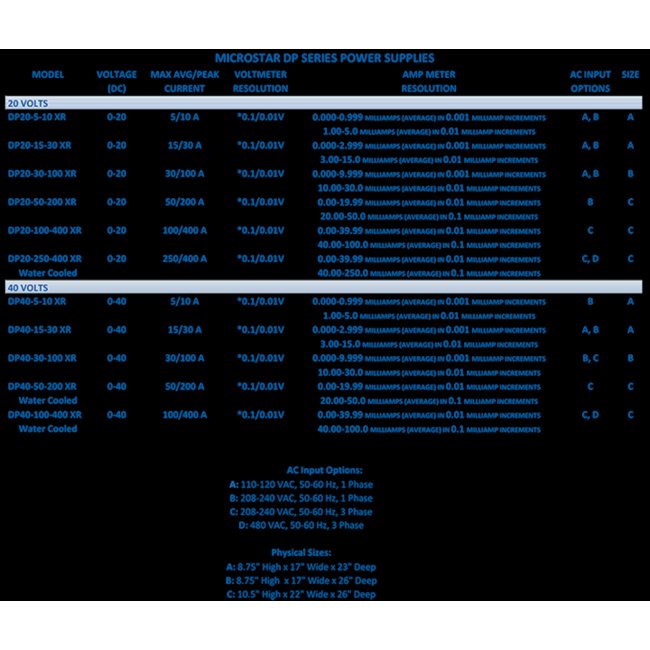

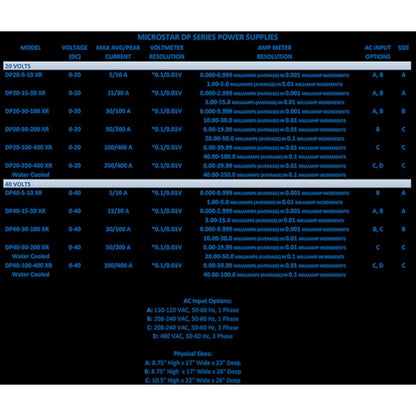

Product Specifications
Specifications Amp Meter Resolution
0.000 - 0.999 Amps (Average) in 0.001 Amp Increments | 1.00 - 5-00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
5/10
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-40
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
