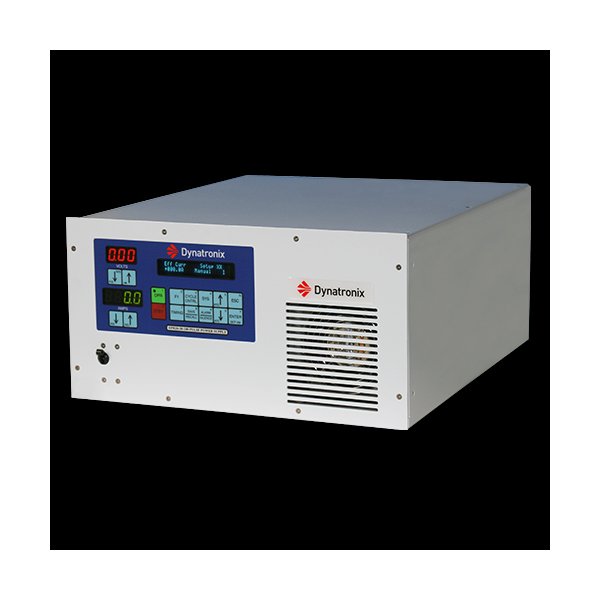

Dynatronix MicroStar DP Series Pulse Power Supply Unit
Dynatronix MicroStar DP Series Pulse Power Supply Unit
SKU:HEA-c24c05
Experience unparalleled flexibility and efficiency with the Dynatronix MicroStar DP Series Pulse Power Supply Unit. Ideal for diverse metal finishing applications, this unit offers DC, HFP, or Pulse Reverse modes with advanced features for exceptional performance.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Dynatronix MicroStar DP Series Pulse Power Supply Unit
$3,499.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DP Series Pulse Power Supply Unit
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dynatronix MicroStar DP Series Pulse Power Supply Unit offered by Process Technology is the epitome of flexibility and efficiency. Ideal for a wide range of metal finishing applications, this unit boasts a user-friendly design packed with advanced features. With options for DC, High Frequency Pulse (HFP), or Pulse Reverse modes, forced air cooling, and dimensions of 8.75" H x 17" W x 23" D, this benchtop unit delivers a reliable performance. It operates within a voltage range of 0-40 volts, supporting a max average peak current of 15-30 amps and 4,000 watts of power. It comes with digital meter accuracy, various interface options, and a comprehensive warranty of 2 years.
Ready to Grow Without Cash Flow Constraints?

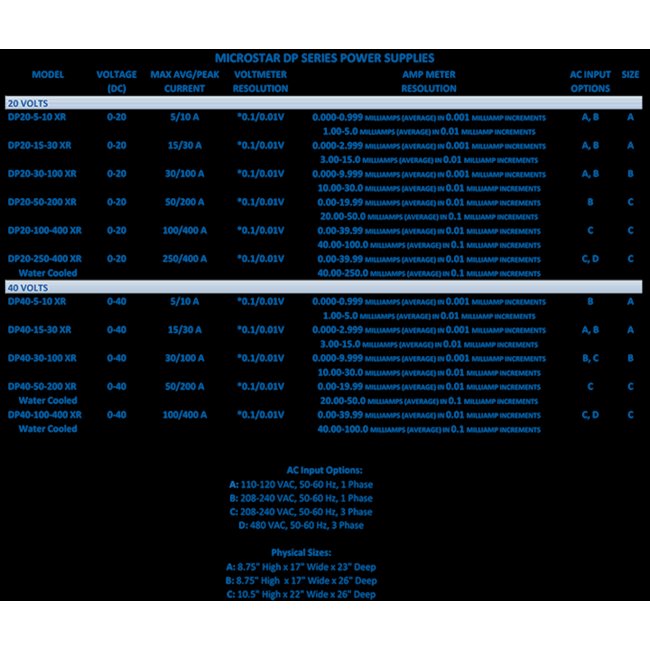

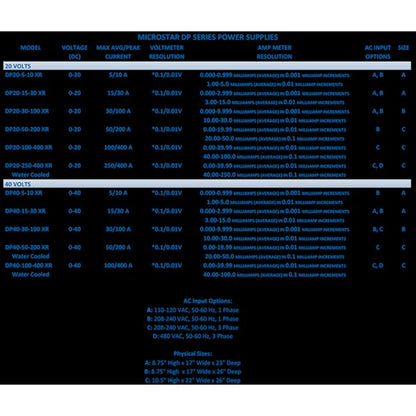

Product Specifications
Specifications Amp Meter Resolution
0.000 - 2.999 Amps (Average) in 0.001 Amp Increments | 3.00 - 15.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Forced Air
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
15/30
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard)
Specifications Output Voltage Dc
0-40
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
