Dynatronix MicroStar DPR Series Pulse Power Supply
Dynatronix MicroStar DPR Series Pulse Power Supply
SKU:HEA-dae201
Experience ultimate control with the Dynatronix MicroStar DPR Series Pulse Power Supply, ideal for metal finishing applications. Maximize efficiency with advanced features.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Dynatronix MicroStar DPR Series Pulse Power Supply
$4,999.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DPR Series Pulse Power Supply
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

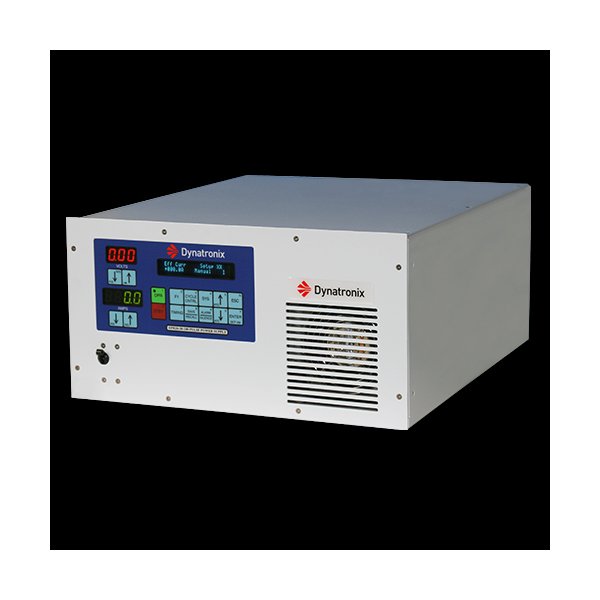

The Dynatronix MicroStar DPR Series Pulse Power Supply offers unparalleled flexibility and performance for metal finishing applications. This DC power supply features DC, High Frequency Pulse (HFP), and Pulse Reverse modes, with a compact design and robust, powder-coated enclosure. It includes advanced features like Real Time Cycle Control, Constant current/voltage regulation, FrontPanel+ Host Control for process setup/data logging, and electronic protections. With a maximum output of 40V and 10A peak current, this unit ensures precise control and efficiency in industrial settings.

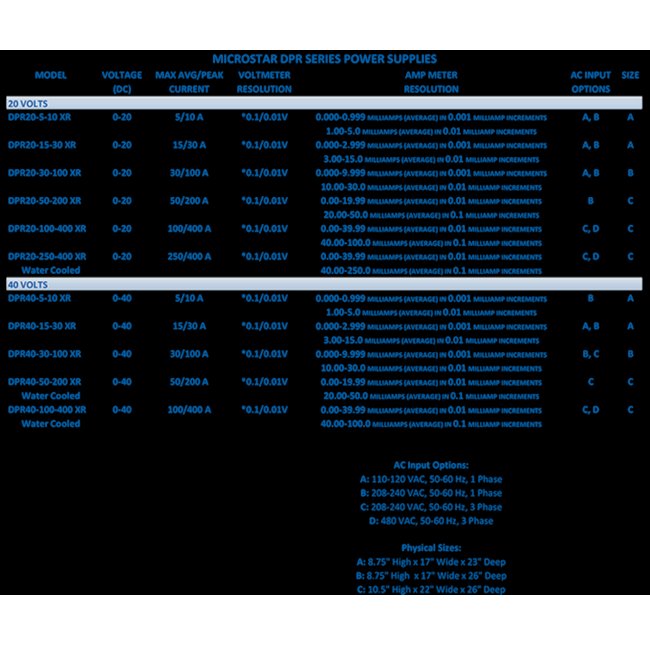

Product Specifications
Specifications Amp Meter Resolution
0.000 - 0.999 Amps (Average) in 0.001 Amp Increments | 1.00 - 5-00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
5/10
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard) | Trickle current
Specifications Output Voltage Dc
0-40
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
