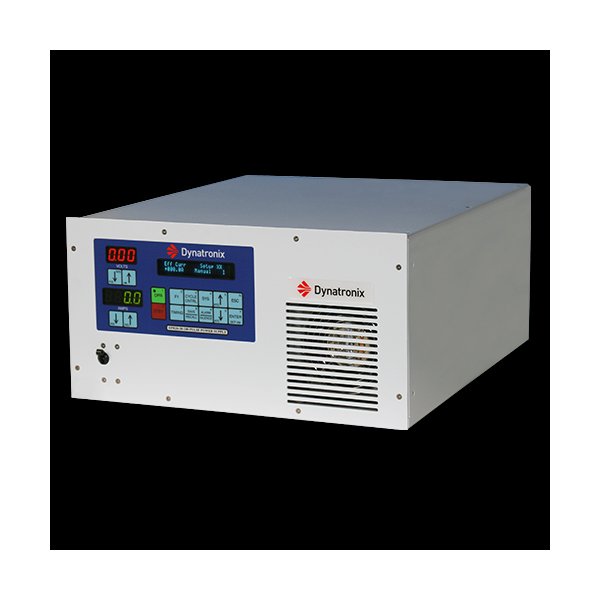

The Dynatronix MicroStar DPR Series Pulse Power Supply is a versatile solution for various metal finishing applications, designed with simplicity and packed with advanced features. This power supply offers DC, High Frequency Pulse (HFP), or Pulse Reverse modes with a compact package size using linear technology. It boasts a rugged, environmentally-sealed enclosure, patented Extended Operating Range, Real Time Cycle Control, and high-frequency pulse output capability up to 5000 Hz. With features like Ampere Time Cycle Control, Constant current/voltage regulation modes, and Electronic protections, this power supply ensures efficiency and precision in metal finishing processes. The inclusion of RS485 and USB ports for computer control, compatibility with FrontPanel+ Host Control Program, and the ability to save/recall process steps make it ideal for both consumer and institutional buyers.

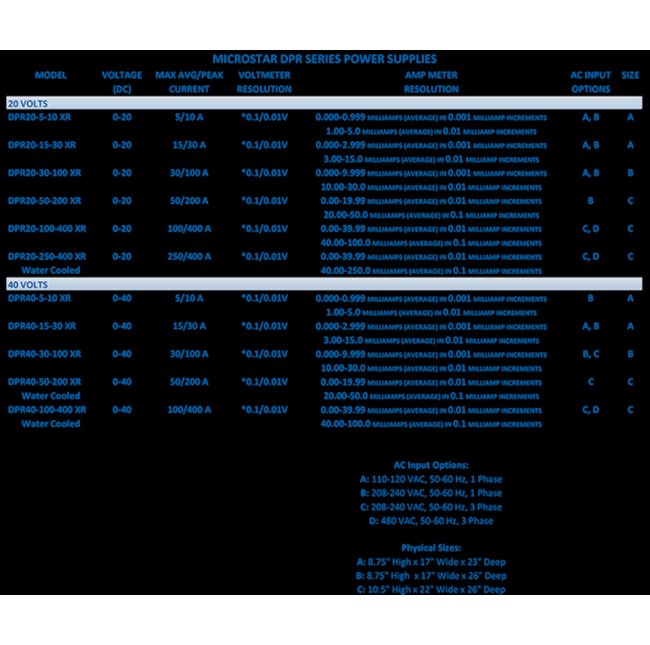

Product Specifications
Specifications Amp Meter Resolution
0.000 - 2.999 Amps (Average) in 0.001 Amp Increments | 3.00 - 15.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
10.5" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
15/30
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard) | Trickle current
Specifications Output Voltage Dc
0-20
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
