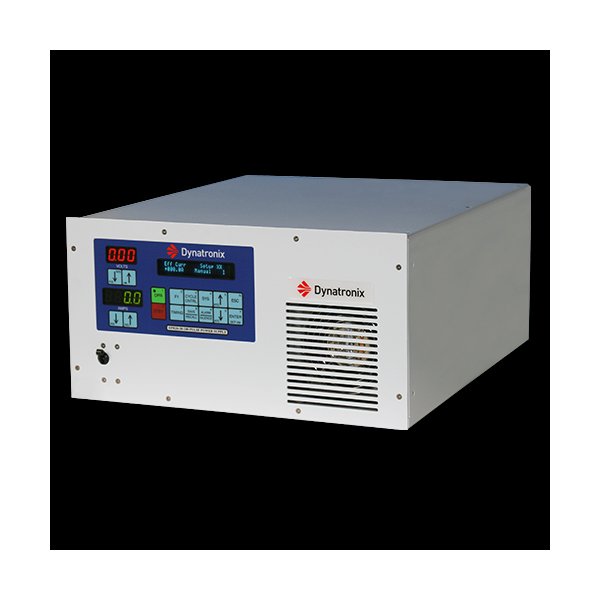

The Dynatronix MicroStar DPR Series Pulse Power Supplies offer unparalleled flexibility and performance for metal finishing applications. This benchtop unit features DC, High Frequency Pulse, or Pulse Reverse modes with a system output range of 0-40 volts and 0-30 amps, packed in a compact, rugged enclosure. With advanced features like Real Time Cycle Control, multiple regulation modes, and electronic protections, this power supply ensures precise and safe operation. Ideal for industrial users seeking reliability and efficiency in their processes.

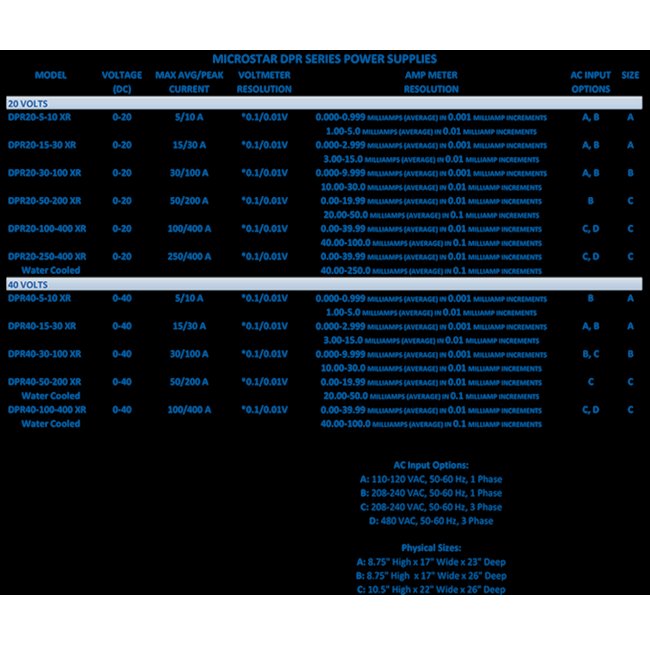

Product Specifications
Specifications Amp Meter Resolution
0.000 - 9.999 Amps (Average) in 0.001 Amp Increments | 10.00 - 30.00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
8.75" H x 17" W x 26" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
30/100
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard) | Trickle current
Specifications Output Voltage Dc
0-40
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
208-240V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 3 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
