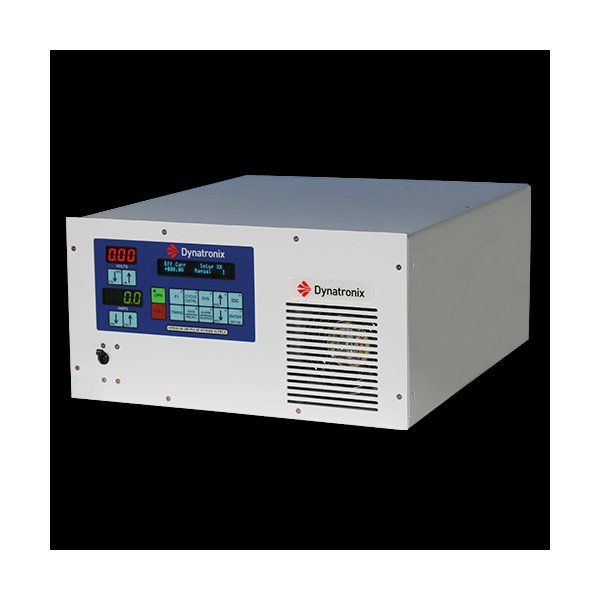

The Dynatronix MicroStar DPR Series Pulse Power Supply offers exceptional flexibility and performance for a wide range of metal finishing applications. With options for DC, High Frequency Pulse, or Pulse Reverse outputs, this benchtop unit delivers 0-30 amps and 20-40 volts, ensuring precise control and efficient operation. Featuring a compact, rugged design with patented Extended Operating Range, Real Time Cycle Control, and various regulation modes, this power supply is ideal for demanding industrial environments. The unit also includes advanced features like process data logging, electronic protections, and the ability to save and recall process steps, making it a versatile and reliable choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

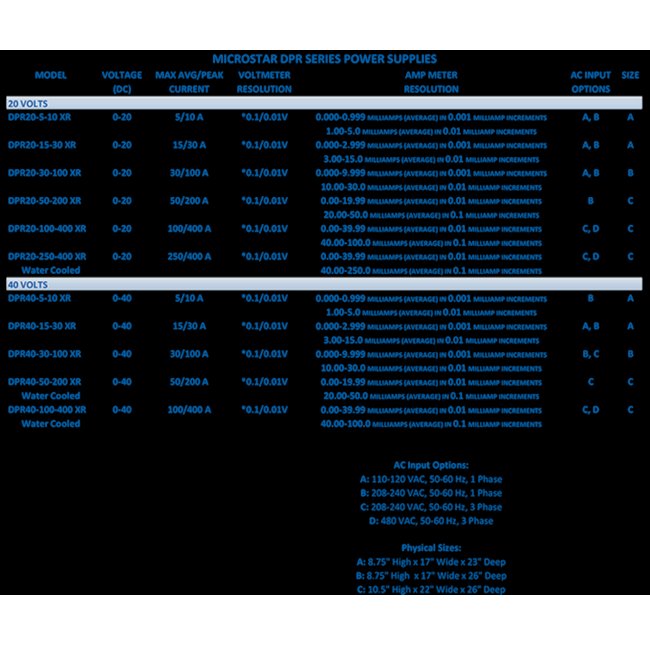

Product Specifications
Specifications Amp Meter Resolution
0.000 - 0.999 Amps (Average) in 0.001 Amp Increments | 1.00 - 5-00 Amps (Average) in 0.01 Amp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
10.5" H x 17" W x 23" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
5/10
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
19" Rack mount flange kit | Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Master/Slave control - synchronize multiple units | Ramp timer | Recipe creation and storage | Remote Control Panel (10' cable standard) | Trickle current
Specifications Output Voltage Dc
0-20
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
50.0 lbs
