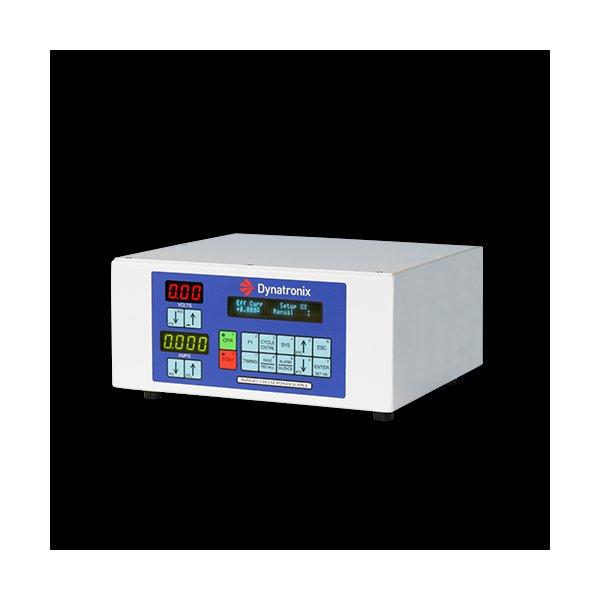

The Dynatronix MicroStar DuP Series Pulse Power Supplies offer unparalleled versatility and performance for metal finishing applications. With output ranges from 0.1 to 3 amperes, these power supplies are ideal for laboratory, R&D, and general industrial use. Featuring DC, High Frequency Pulse (HFP), or Pulse Reverse modes, air-cooled design, and compact benchtop size, they ensure precision and reliability. Equipped with advanced features like digital meter accuracy, temperature stability, and front panel control, these power supplies provide exceptional control and efficiency. Additionally, optional accessories such as analog interface boards, ramp timer, and recipe storage enhance functionality and customization. Backed by a 2-year warranty, the Dynatronix MicroStar DuP Series is a trusted choice for demanding applications.

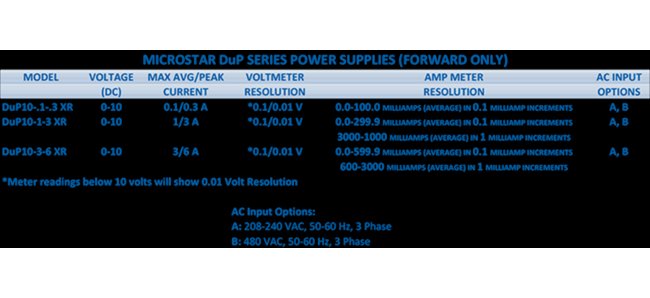

Product Specifications
Specifications Amp Meter Resolution
0.0 - 100.0 Milliamps (Average) in 0.1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
0.1/0.3
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. #Meter Resolution: Forward or Effective. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Voltage Dc
0-10
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
