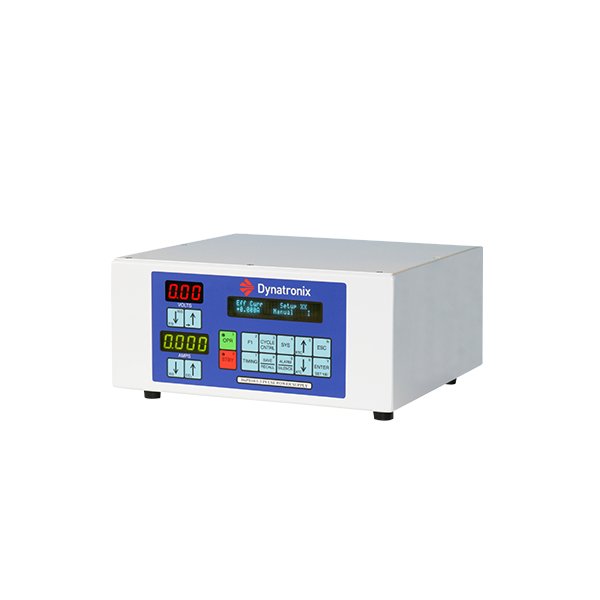

Enhance metal finishing applications with the Dynatronix MicroStar DuPR Pulse Power Supply. Ideal for laboratory and R&D settings, this compact unit offers DC, High Frequency Pulse, and Pulse Reverse modes. It features real-time cycle control, extended operating range, and various protection mechanisms. With computer control capabilities and process step storage, this convection-cooled power supply ensures precise and efficient performance.

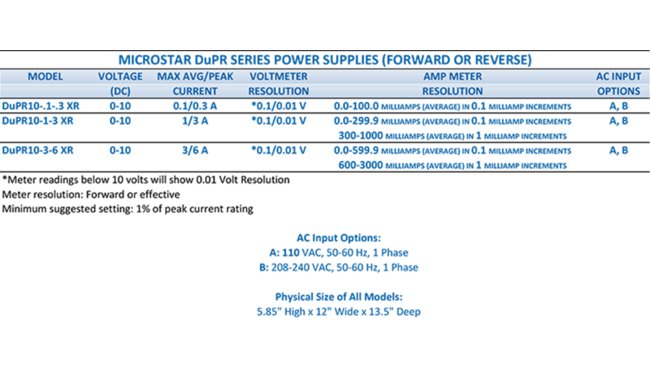

Product Specifications
Specifications Amp Meter Resolution
0.0 - 599.9 Milliamps (Average) in 0.1 Milliamp Increments | 600 - 3000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
3/6
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. #Meter Resolution: Forward or Effective. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Voltage Dc
0-10
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
