Dynatronix MicroStar DuPR Series Pulse Power Supplies - DC, HFP, Pulse Reverse
Dynatronix MicroStar DuPR Series Pulse Power Supplies - DC, HFP, Pulse Reverse
SKU:HEA-d65c68
Experience unparalleled flexibility and precision with the Dynatronix MicroStar DuPR Series Pulse Power Supplies. Ideal for metal finishing applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Dynatronix MicroStar DuPR Series Pulse Power Supplies - DC, HFP, Pulse Reverse
$2,899.99
Quantity: 1
Claim Your Seller Account
Dynatronix MicroStar DuPR Series Pulse Power Supplies - DC, HFP, Pulse Reverse
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

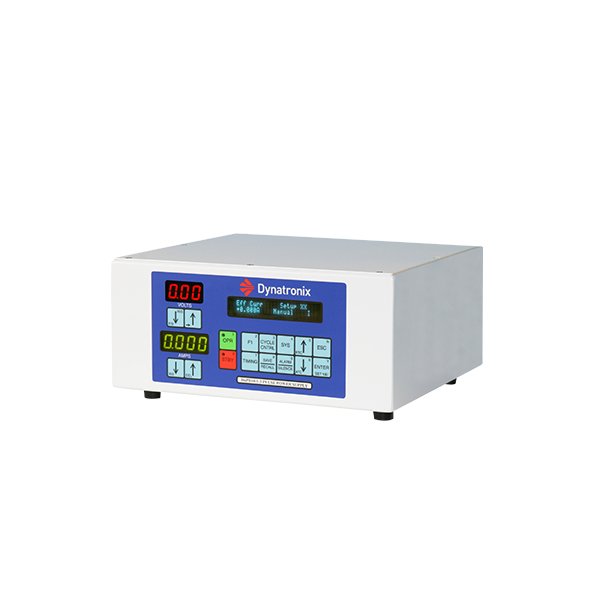

The Dynatronix MicroStar DuPR Series Pulse Power Supplies offer unparalleled flexibility and features for metal finishing applications. With a compact design and multiple output modes including DC, High Frequency Pulse (HFP), and Pulse Reverse, these power supplies are ideal for laboratory, R&D, and general metal finishing tasks. Featuring a rugged, powder-coated enclosure, patented Extended Operating Range, Real Time Cycle Control, and multiple regulation modes, these power supplies ensure precise control and reliable operation. Additionally, with advanced features like the FrontPanel+ Host Control Program, electronic overload protection, and optional analog interface boards, the Dynatronix MicroStar DuPR Series is a top choice for both consumer and institutional buyers.

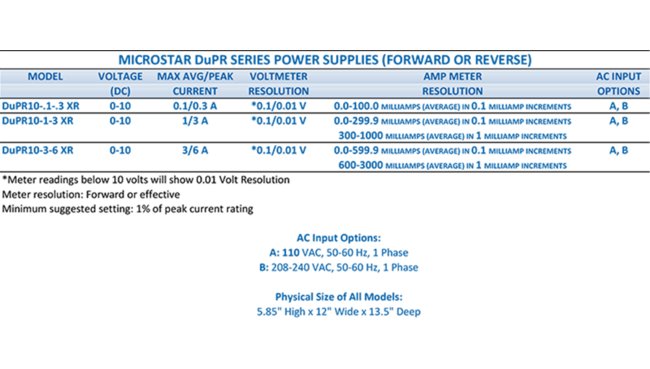

Product Specifications
Specifications Amp Meter Resolution
0.0 - 100.0 Milliamps (Average) in 0.1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
0.1/0.3
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. #Meter Resolution: Forward or Effective. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Voltage Dc
0-10
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
