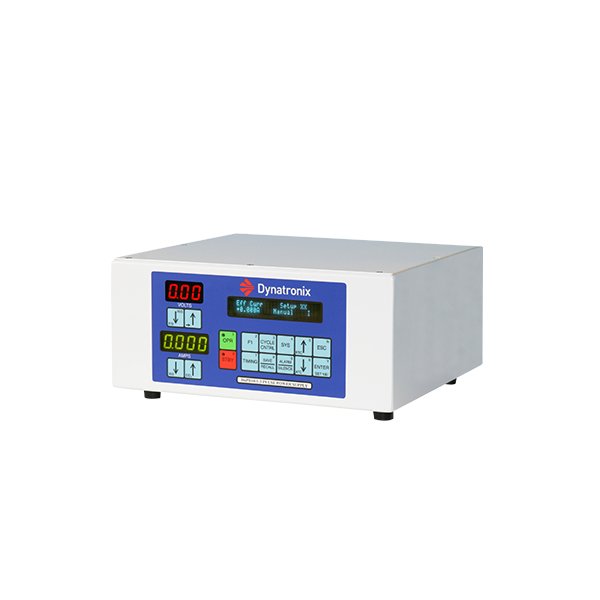

The Dynatronix MicroStar DuPR Series Pulse Power Supplies by Process Technology are versatile and feature-packed units designed for metal finishing applications. With output ranges from 0.1 to 3 amps, they are perfect for laboratory, R&D, and general applications. These supplies offer DC, High Frequency Pulse (HFP), or Pulse Reverse modes, along with a compact linear technology design, rugged enclosure, real-time cycle control, and extensive safety features. The units also include ampere time control, high-frequency pulse output capability, computer control options, and the ability to save and recall process steps, making them ideal for a wide range of applications.

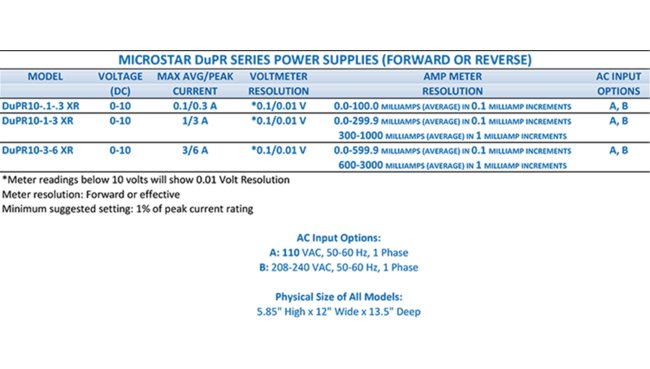

Product Specifications
Specifications Amp Meter Resolution
0.0 - 299.9 Milliamps (Average) in 0.1 Milliamp Increments | 300 - 1000 Milliamps (Average) in 1 Milliamp Increments
Specifications Controller
FrontPanel+ Host Control Program for process set-up, process storage and data logging
Specifications Cooling
Convection
Specifications Digital Meter Accuracy
+/- 1% plus L.S.D.
Specifications Dimensions
5.85" H x 12" W x 13.5" D
Specifications Line Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Load Regulation
+/- 1% of setting or +/- 0.1% of maximum rating, whichever is greater
Specifications Manufacturer
Dynatronix
Specifications Max Avgpeak Current Amps
1/3
Specifications Note
*Meter readings below 10 volts will show 0.01 Volt Resolution. #Meter Resolution: Forward or Effective. Minimum Suggested Setting: 1% of peak current rating.
Specifications Options
Analog interface board: 0-10V | Analog interface board: 4-20mA | Auxiliary totalizer with relay output to turn on/off pumps, mixer, etc. | Ramp timer | Recipe creation and storage | Trickle current
Specifications Output Voltage Dc
0-10
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Voltage And Phase Required
110-120V, 50-60 Hz, 1 ph | 208-240V, 50-60 Hz, 1 ph
Specifications Voltmeter Resolution
*0.1/0.01
Specifications Warranty
2 Years
Specifications Weight
15.0 lbs
