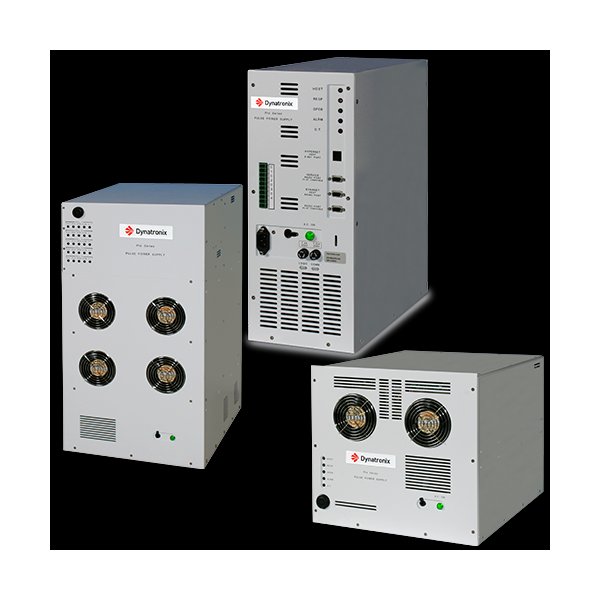

Dynatronix Pro Series DC Power Supplies
Dynatronix Pro Series DC Power Supplies
SKU:HEA-7fc979
Customizable Pro Series DC Power Supplies for precise industrial applications. Programmable with real-time controls and versatile outputs.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dynatronix Pro Series DC Power Supplies
$1,899.99
Quantity: 1
Claim Your Seller Account
Dynatronix Pro Series DC Power Supplies
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the demands of complex processes with the Dynatronix Pro Series DC Power Supplies. From semiconductor electroplating to medical device electropolishing, this programmable power supply offers unmatched flexibility. With outputs ranging from 0.001 to 50 amps at 1-350 Volts DC, real-time cycle control, and PC-based programmable controls, it ensures precise customization for various applications. Features include Ampere Time Control, RS485 and USB ports, and process data logging. Incorporate multiple cathodes, anodes, and plating baths effortlessly. Purchase includes Dynacal II calibration software. Warranty: 2 Years.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Controller
All outputs are controlled and monitored with an onboard microprocessor using a web-based HTML graphical user interface.
Specifications Line Regulation
Current Regulation Mode: +/- 1% of setting or +/- 0.01% of peek rating, whichever is greater. | Voltage Regulation Mode: +/- 1% of setting or +/- 0.1% of peak rating, whichever is greater.
Specifications Load Regulation
Current Regulation Mode: +/- 1% of setting or +/- 0.01% of peak rating, whichever is greater. | Voltage Regulation Mode: +/- 1% of setting or +/- 0.1% of peak rating whichever is greater.
Specifications Manufacturer
Dynatronix
Specifications Options
Arbitary waveform control | Automatic calibration software (DynaCal ll) | Bias control | Extended Range capability | Individual channel control | Multiple cell configurations | Multiple channels of output | Trickle current | Windows based control software (DynaComm ll)
Specifications Output Current Amps
0.001-50
Specifications Output Voltage Dc
1-350
Specifications Ripple
<1% RMS of maximum rated output voltage
Specifications Temperature Stability
0.2% of peak rating after 15 minute warm up
Specifications Warranty
2 Years
