E2CP Car Pullers - High Torque Winches
E2CP Car Pullers - High Torque Winches
SKU:RIG-da7854
Powerful Model E2CP Car Pullers - High Torque Winches for rugged operations. Engineered for durability and precision.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
E2CP Car Pullers - High Torque Winches
$8,499.99
Quantity: 1
Claim Your Seller Account
E2CP Car Pullers - High Torque Winches
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

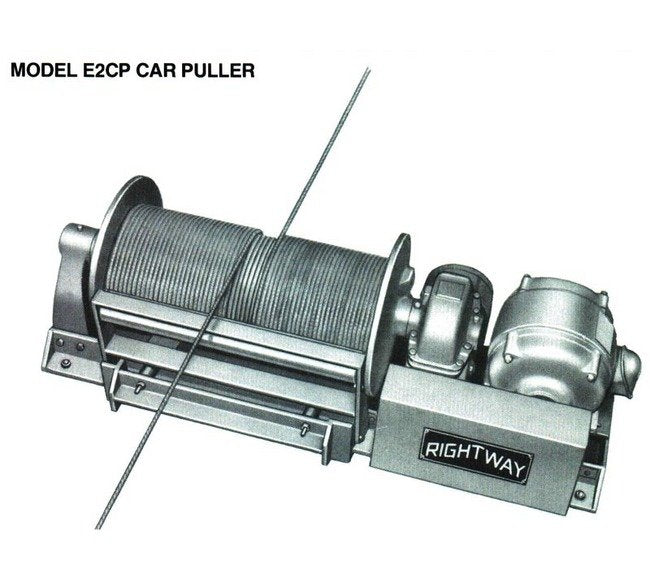

The Model E2CP Car Pullers are engineered for superior performance in demanding environments. With a 15 HP motor and precision gearing in oil bath lubrication, this high-torque hoist duty winch ensures reliable pulling, spotting, and stopping operations. Featuring large diameter drums that enhance wire rope life, this winch offers pulling distances of 50', 75', and 150' in each direction. The all-steel drum and base construction guarantee maximum durability and a minimum 5 to 1 structural safety factor, making it an ideal choice for industrial applications.
Product Specifications
Specifications Capacity Full Load Running
9000
Specifications Capacity Full Load Starting
18000
Specifications Drum Diameter
12 3/4 inches
Specifications Line Speed
25 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
15 HP
Specifications Net Weight
1775 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
24 inches
Specifications Winch Length
65 inches
Specifications Winch Width
27 inches
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
