E5 Heavy Duty Industrial Puller Winch
E5 Heavy Duty Industrial Puller Winch
SKU:RIG-a1aaa9
Powerful E5 Heavy Duty Industrial Puller Winch, 7500 lbs capacity, ideal for tough applications with smooth operation and durability.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
E5 Heavy Duty Industrial Puller Winch
$5,999.99
Quantity: 1
Claim Your Seller Account
E5 Heavy Duty Industrial Puller Winch
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

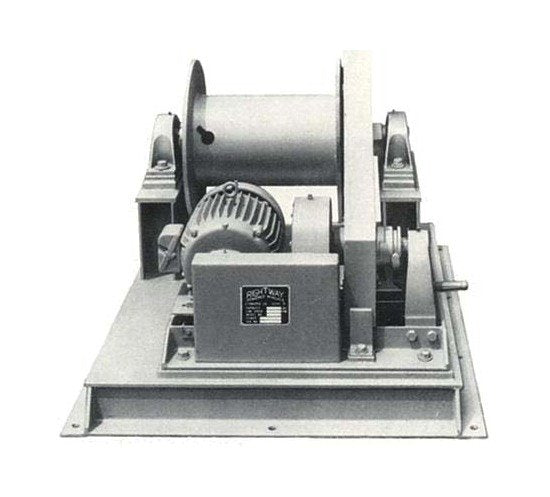

The E5 Heavy Duty Industrial Puller Winch is a powerhouse designed for demanding applications. With a high torque 15 HP motor, it offers a full load capacity of 7500 lbs at a line speed of 40 FPM. The winch features a triple reduction self-locking gearing system and heavy-duty roller bearings for smooth operation. Its all-steel construction and large diameter drum ensure durability and extended wire rope life, meeting a minimum 5 to 1 structural safety factor. Optional equipment includes overspeed automatic load holding drum brake, torque limiter mechanical clutch, and more, making it versatile for lifting, pulling, and controlled operations.
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
12 inches
Specifications Full Drum
850 ft.
Specifications Line Speed
40 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
2775 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
41 inches
Specifications Winch Length
66 inches
Specifications Winch Width
52 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
