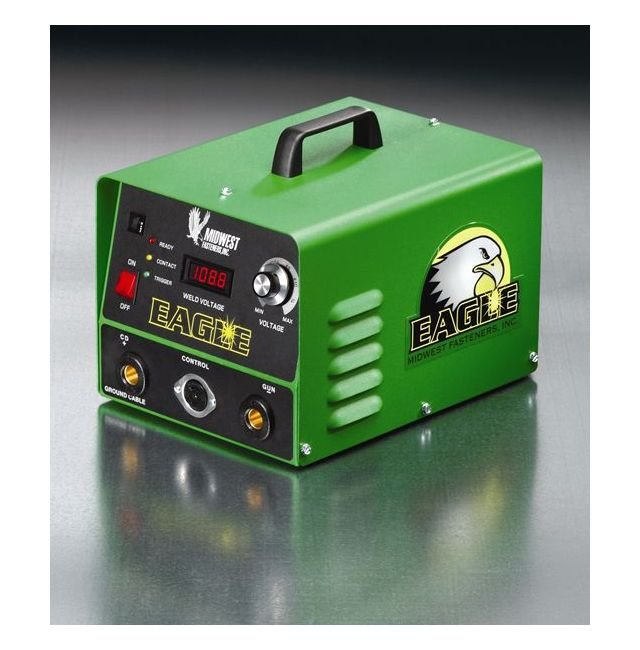

The Eagle Capacitor Discharge Stud Welder by MIDWEST Fasteners is a robust solution for welding Weld Pins and Studs up to 1/4" in Mild Steel, Stainless Steel, and Aluminum. With a weld rate of up to 20/min, this portable welder offers a versatile and durable weld gun made of high-impact polycarbonate. Meeting A-A-59331 Military Specification, this welder ensures both reliability and compliance in various applications.
Product Specifications
Cables Ground Cable
#4 x 15 Ft. (One Each)
Cables Gun Extension Set
#4 x 18/2 x 35 Ft. (Direct to Gun)
Key Features Incoming Power Voltage
115 V
Key Features Maximum Weld Diameter
M6
Key Features Maximum Weld Diameter Decimal
0.250 in
Key Features Maximum Weld Diameter Fraction
1/4 in
Key Features Minimum Weld Length
6 mm
Key Features Minimum Weld Length Decimal
0.250 in
Key Features Minimum Weld Length Fraction
1/4 in
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
Eagle
Power Requirement Current
20 A
Power Requirement Frequency
60 Hz
Power Requirement Voltage Ac
115 V
Secondary Features Backside Marking On Thinner Material
Unacceptable
Secondary Features Minimum Material Thickness
0.03125 in (22 gauge) | 0.6 mm (22 gauge)
Secondary Features Weld Penetration
Surface Weld, Fail-in-fastener Minimum
Specifications Capacitance
70,000 µF

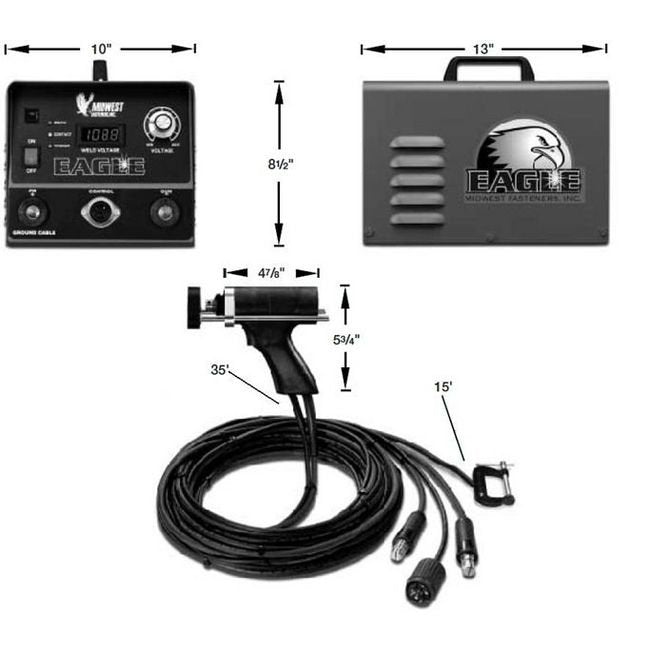

Specifications Depth
13 in
Specifications Height
8-1/2 in
Specifications Pinstud Range
14 GA. thru 1/4" Dia. Weld Base
Specifications Stud To Base Weld Area
No Special Requirements
Specifications Weight
26 lb
Specifications Weld Mode
Contact
Specifications Weld Rate
Up to 20/min
Specifications Weld Voltage Dc
35 to 175 V
Specifications Width
10 in
Weld Gun Talon Cd Material
High strength | impact-resistant polycarbonate
Weld Gun Talon Cd Size Lwh
4-7/8 x 2 x 5-3/4 in
Weld Gun Talon Cd Weight Not Including Cable
1.6 lb
