Eastey® ERX-15 Automatic Case Erector
Eastey® ERX-15 Automatic Case Erector
SKU:AUT-c9efa8
Increase productivity with the Eastey® ERX-15 Automatic Case Erector. Speed, efficiency, and reliability in one machine.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Eastey® ERX-15 Automatic Case Erector
$8,999.99
Quantity: 1
Claim Your Seller Account
Eastey® ERX-15 Automatic Case Erector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

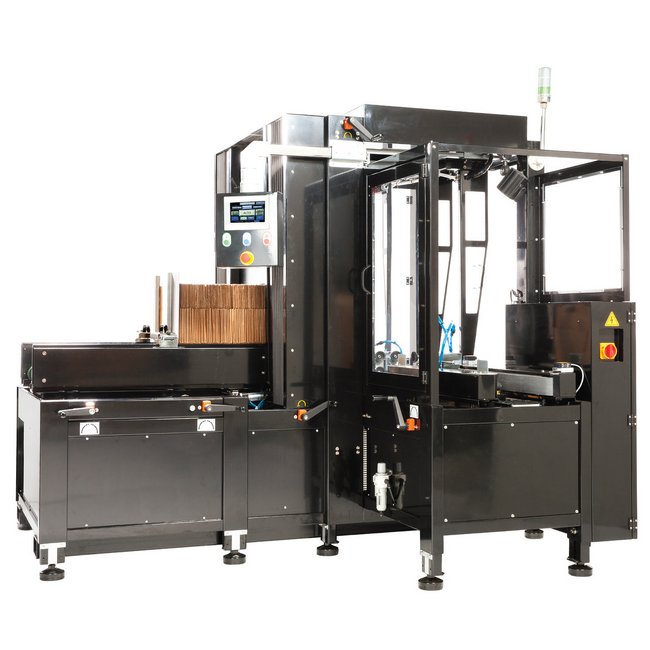

The Eastey® ERX-15 Automatic Case Erector is an industrial workhorse designed for maximum productivity. With a capacity of up to 15 cases per minute, it offers efficient case forming and sealing, cutting down on manual labor and ensuring consistent output. This versatile machine allows for quick and easy changeovers without requiring tools, making it ideal for a wide range of box sizes. Its user-friendly design, sturdy construction, and reliable performance make it a valuable addition to any packaging line.
Product Specifications
Box Specifications Maximum Box Depth
19.5 in
Box Specifications Maximum Box Length
19.5 in
Box Specifications Maximum Box Width
13.5 in
Box Specifications Minimum Box Depth
5 in
Box Specifications Minimum Box Length
7 in
Box Specifications Minimum Box Width
5 in
Features Features
Touchscreen human interface control panelPowered case magazine hopper holds up to 200 casesSquare case erecting and transitionQuick and easy changeover requires no tools - 5 easy stepsLow tape and low case alarm lightE-Stop and interlock guarding for safetyHeavy duty steel constructionOptional 3" tape head available
Increase Your Roi Increase Your Roi
Use of Eastey®'s ERX-15 case erector can be learned in minutes, avoiding costly breaks in production and downtime. Better yet, ERX-15 will eliminate slow production rates associated with manual case forming and taping, and repurpose your labor force where they can be utilized more effectively.
Industrial Strength Operation Industrial Strength Operation
Dual 1/4 HP side drive motors, eight precise double vacuum powered suction cups, and aggressive industrial strength drive belts make ERX-15 a workhorse that will stand up to your toughest challenges. Each case erector is made from 12 gauge steel with a powder coated exterior to protect the ERX-15 from abusive industrial conditions and ensure years of use.
Operation Made Easy Operation Made Easy

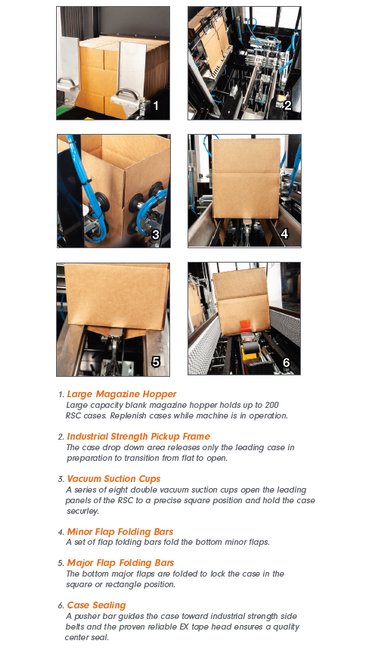

The ERX-15 Case Erector enables a single operator to form, seal, and pack corrugate cases. Operation is simple: load up to 200 cases in the case magazine hopper and set your operation to run or jog mode. Separators release the leading blank case where a series of eight vacuum suction cups hold the case in a properly formed square position. After a set of stationary flap folding bars fold both minor and major bottom flaps, the case is then transitioned and the bottom is sealed with Eastey®'s proven EX tape head.
Technical Specs Air Pressure
80 psi
Technical Specs Brands
Eastey®
Technical Specs Case Hopper Capacity
150 to 200 cases (200 cases with B-flutes)
Technical Specs Case Sealing
2 in. wide pressure sensitive tape, optional 3 in. wide
Technical Specs Case Types
RSC RH
Technical Specs Flute Types
B-flutes 3 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
82.8 in
Technical Specs Machine Length
94.3 in
Technical Specs Machine Width
82 in
Technical Specs Phase
1
Technical Specs Speed
Up to 15 Cases a minute
Technical Specs Voltage
110 V | 230 V | 240 V
Technical Specs Wall Types
Single
The Right Solution The Right Solution
Rugged design. Reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® Enterprises to provide the right solution for your case erecting needs.
User Friendly User Friendly
Single user operation and standard features like touch input HMI, low case and low tape alarms, powered case magazine, and simple case adjustments and changeovers, make the ERX-15 an operator-friendly addition to your packaging line.
Wide Standard Case Range Wide Standard Case Range
The versatile design of the ERX-15 allows operators the flexibility of making adjustments on the fly without tools and easy-to-use hand tighten knobs and cranks. Need to switch case sizes? No problem, case changeover is completed in minutes for a wide range of cases as large as 19.5" in length and 19.5" tall.
