EASTEY® Performance Series 100" Semi-Automatic L-Sealer
EASTEY® Performance Series 100" Semi-Automatic L-Sealer
SKU:PAC-8f78cf
EASTEY® Performance Series 100" Semi-Automatic L-Sealer: Durable, precise, and ideal for sealing various films. Take your packaging to the next level!
Regular price
$9,499.99
Regular price
Sale price
$9,499.99
Unit price
per
Initiate Order
EASTEY® Performance Series 100" Semi-Automatic L-Sealer
$9,499.99
Quantity: 1
Claim Your Seller Account
EASTEY® Performance Series 100" Semi-Automatic L-Sealer
$9,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

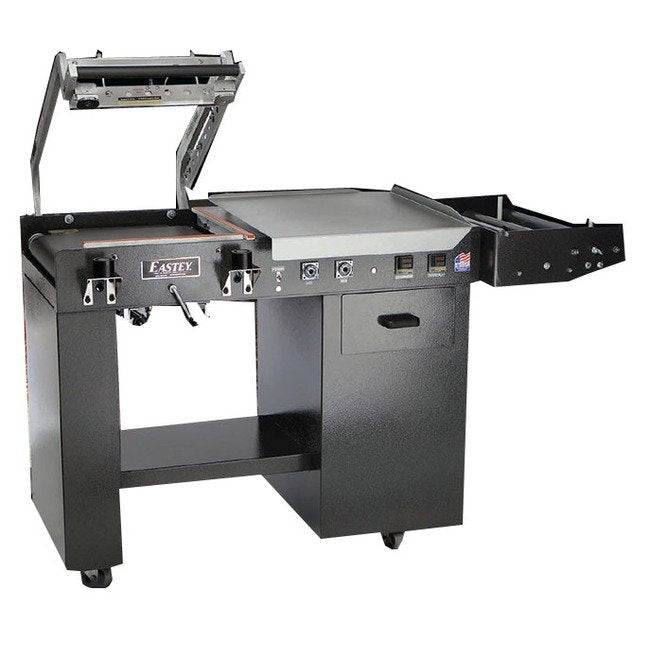

The EASTEY® Performance Series 100" Semi-Automatic L-Sealer from the Professional Line is a robust sealing solution designed for enduring heavy-duty applications. Constructed from durable 1/4" cold rolled steel, this L-Sealer is unmatched in strength and reliability. With seal dimensions of 100" front and 30" side, along with features like solid state temperature control, adjustable dwell time, and stainless steel film clamps, it ensures precise sealing of various films. Additional features include an adjustable product tray, dual locking magnet clamps, and a built-in drawer for convenience. Ideal for sealing polyolefin, polyethylene, and PVC films, EASTEY® has set the standard in the shrink packaging industry for over 25 years.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEASTEY® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
227 in | 577 cm
Machine Dimensions Machine Width
43 in | 109 cm
Note Note
Made in the USA
Optional Accessories Optional Accessories

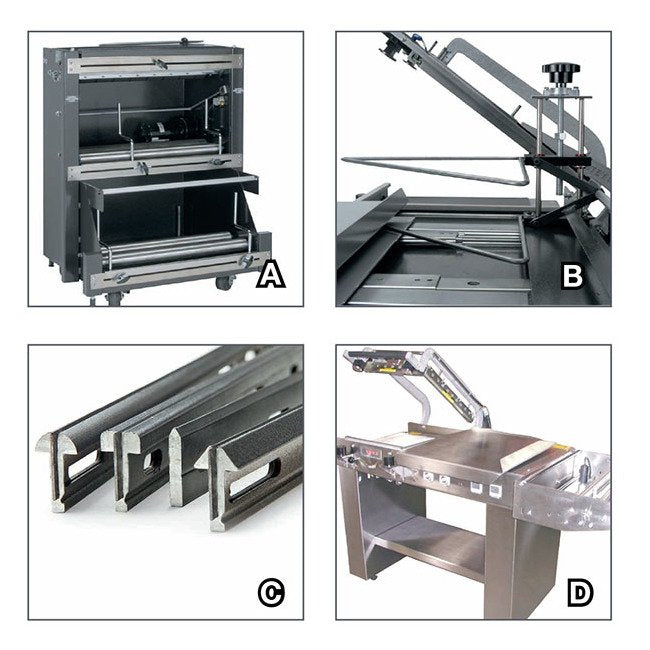

Power film unwindAllows free feeding of film increasing operator efficiency.Film InverterInverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife InsertsHot knife inserts available in Mushroom, Pancake, or Arrow styles.Stainless Steel and Left Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
100 in | 254 cm
Seal Dimensions Side Seal Dimension
30 in | 76.20 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
2200 lb | 997 kg
Specifications Weight
2100 lb | 956 kg
Standard Features Standard Features

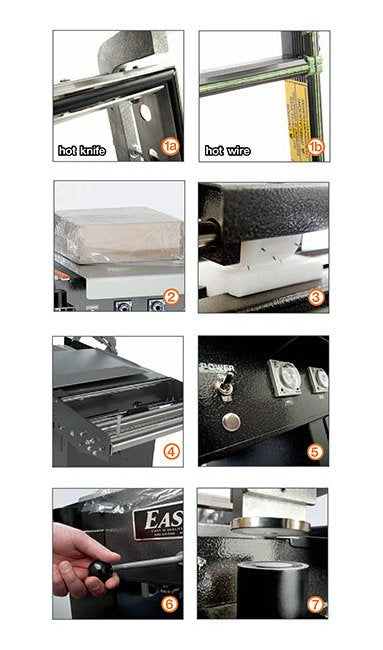

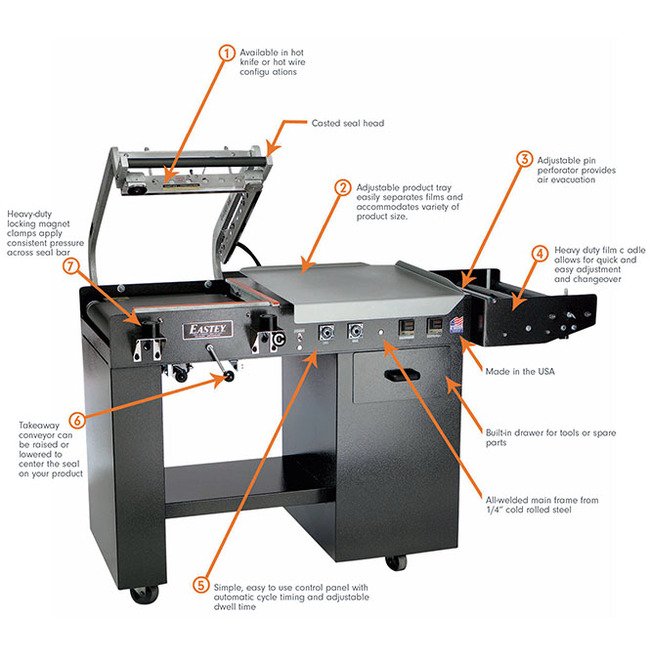

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingAvailable with hot wire or hot knife seal systemsHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480vEasy to use design requires minimal training and maintenance
Standard Power Current
25 A
Standard Power Phase
1
Standard Power Voltage
220 V
