EASTEY® Performance Series 16 Inch Front Seal Semi-Automatic L-Sealer
EASTEY® Performance Series 16 Inch Front Seal Semi-Automatic L-Sealer
SKU:PAC-43ba3b
Durable and efficient semi-automatic L-Sealer for professional sealing applications
Regular price
$7,599.99
Regular price
Sale price
$7,599.99
Unit price
per
Initiate Order
EASTEY® Performance Series 16 Inch Front Seal Semi-Automatic L-Sealer
$7,599.99
Quantity: 1
Claim Your Seller Account
EASTEY® Performance Series 16 Inch Front Seal Semi-Automatic L-Sealer
$7,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

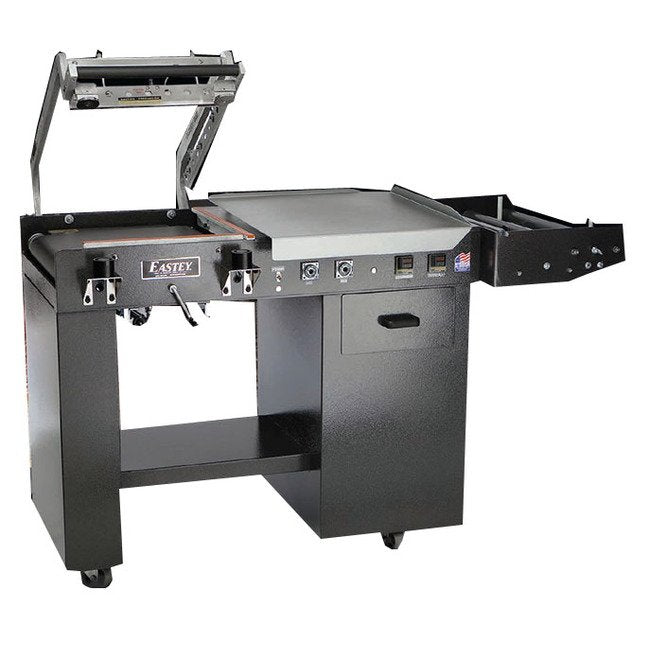

Experience unparalleled durability and efficiency with the EASTEY® Performance Series 16 Inch Front Seal Semi-Automatic L-Sealer. Crafted from 1/4" cold rolled steel, this workhorse is designed to tackle the toughest sealing applications. With features like adjustable dwell time, solid state temperature control, and heavy-duty film cradle, EASTEY® ensures reliable performance for sealing various films. Ideal for polyolefin, polyethylene, and PVC films, this L-Sealer is built for longevity and precision. Discover why EASTEY® has been an industry leader for over 25 years.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEASTEY® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
63 in | 160 cm
Machine Dimensions Machine Width
34 in | 86.36 cm
Note Note
Made in the USA
Optional Accessories Optional Accessories

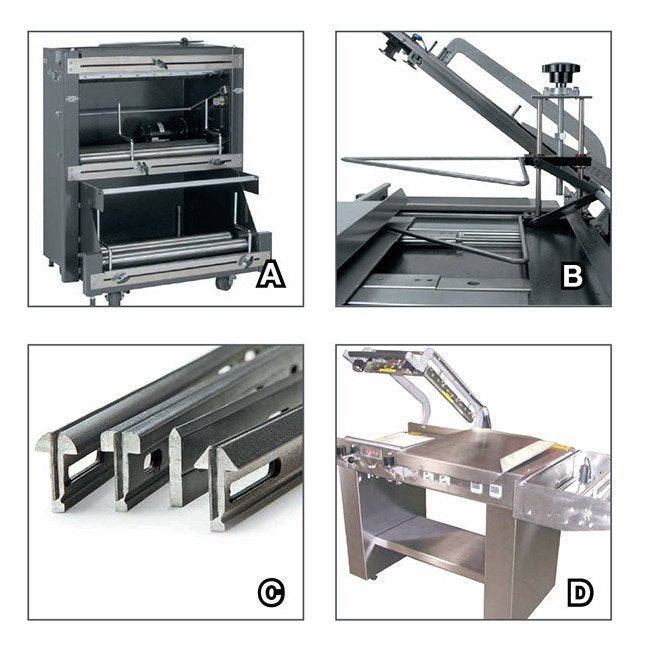

Power film unwindAllows free feeding of film increasing operator efficiency.Film InverterInverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife InsertsHot knife inserts available in Mushroom, Pancake, or Arrow styles.Stainless Steel and Left Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
16 in | 41 cm
Seal Dimensions Side Seal Dimension
20 in | 51 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
700 lb | 317 kg
Specifications Weight
600 lb | 272 kg
Standard Features Standard Features

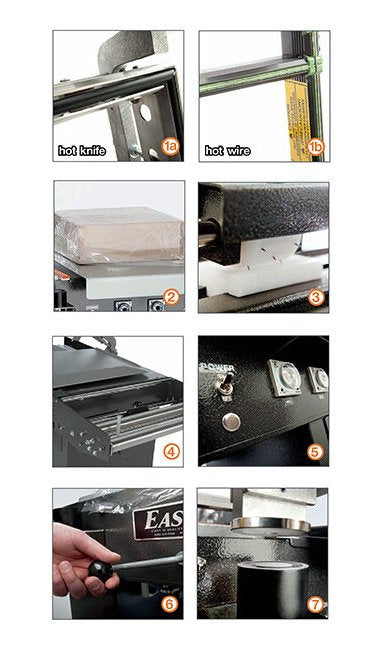

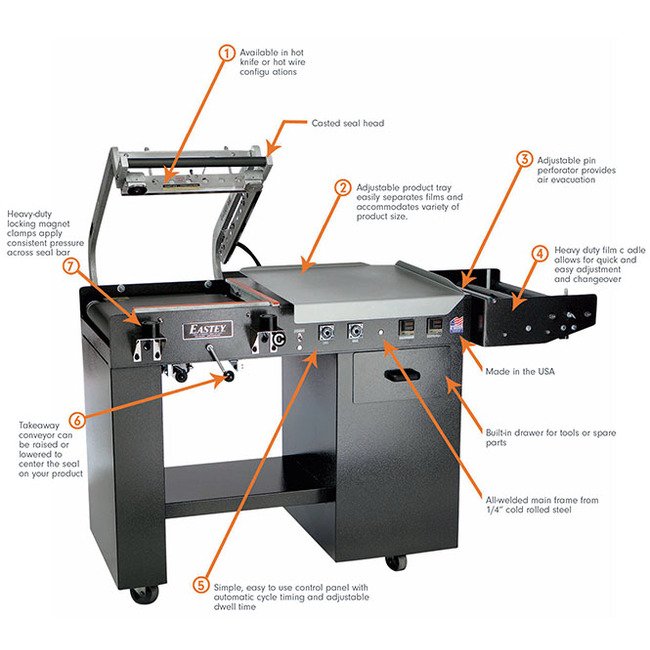

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingAvailable with hot wire or hot knife seal systemsHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480vEasy to use design requires minimal training and maintenance
Standard Power Current
10 A | 20 A
Standard Power Phase
1
Standard Power Voltage
110 V | 220 V
