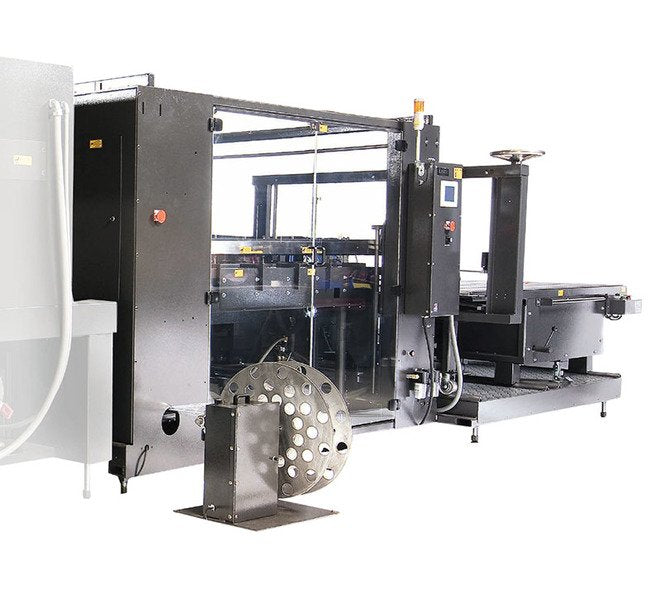

The EASTEY Professional Series 100 Inch Front Seal Automatic L-Sealer is a durable and efficient machine designed for sealing a wide variety of films including polyolefin, polyethylene, and PVC. Constructed from 1/4 cold rolled steel, it offers a reliable automatic self-centering seal system for consistent and secure seals every time. With features like a hot knife seal system, adjustable film rack, soft start conveyors, and automatic cycle timing, this L-Sealer is perfect for large or heavy products that require full enclosure.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY, EFFICIENT DESIGNDesigned specifically for large or heavy products that need to be fully enclosed, EASTEY Professional Series Automatic L-Sealers are constructed of expertly welded 1/4 cold rolled steel and designed to handle the day to day abuse of even the most challenging automatic sealing applications. The efficient automatic self-centering seal system allows users to automatically seal product that is placed on the infeed conveyor for a consistent seal every time.
Key Features Key Features

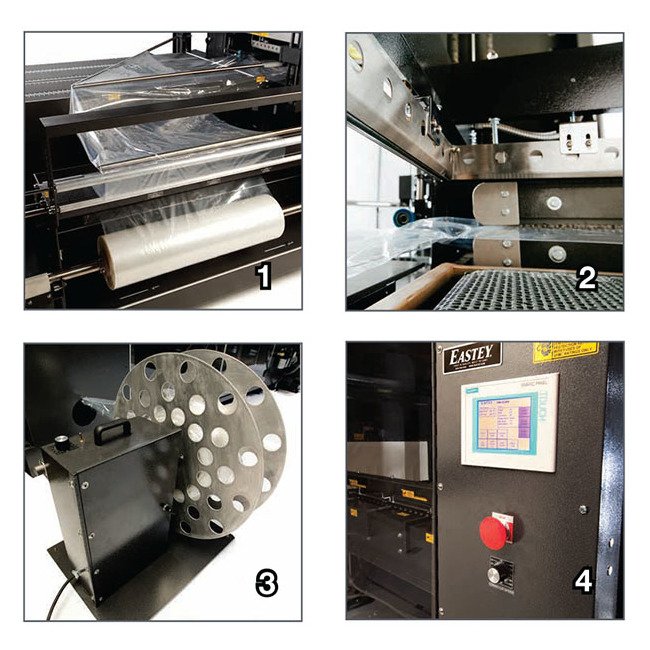

Film RackPower film unwind ensures proper tension of filmHot KnifeHot knife seal system ensures a clean, positive, and even seal every timeFilm Take-Up Scrap WinderAutomatically wraps up the scrap film left from the sealerControl PanelEasy to use control panel lets users adjust for their specific application
Machine Dimensions Machine Height
74 in | 187 cm
Machine Dimensions Machine Length
213 in | 541 cm
Machine Dimensions Machine Width
86 in | 218 cm
Note Note
Made in the USA
Seal Dimensions Front Seal Dimension
100 in | 254 cm
Seal Dimensions Side Seal Dimension
40 in | 102 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 60 in
Specifications Shipping Weight
6000 lb | 2721 kg
Specifications Weight
5800 lb | 2630 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 1/4" cold rolled steelSoft start infeed and outfeed conveyors to reduce shifting of productsVariable speed infeed and outfeed conveyorsSide adjustable film rack for perfect alignmentSeal head casting equipped with pneumatic air cylinder for automatic sealingHot knife seal available with mushroom (standard), pancake, arrow, or poly insertsConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timePLC controlled with product indexingFilm tracking wheels keep film in placePower film unwind ensures proper tension of filmMultiple pin perforators provide air evacuationPower Film take-up scrap winder includedCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenanceSide seal size 30", 40" or 50"; front seal size 50", 70", or 100"60 PSIAvailable in 220v, or 480v
Standard Power Current
30 A | 35 A
Standard Power Phase
1
Standard Power Voltage
220 V
