Eastey BB-2/SS Stainless Bottom Belt Case Taper
Eastey BB-2/SS Stainless Bottom Belt Case Taper
SKU:BB2-a2f97f
Eastey BB-2/SS Stainless Bottom Belt Case Taper - Durable, versatile, and reliable solution for industrial case sealing needs.
Regular price
$4,575.00
Regular price
Sale price
$4,575.00
Unit price
per
Initiate Order
Eastey BB-2/SS Stainless Bottom Belt Case Taper
$4,575.00
Quantity: 1
Claim Your Seller Account
Eastey BB-2/SS Stainless Bottom Belt Case Taper
$4,575.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

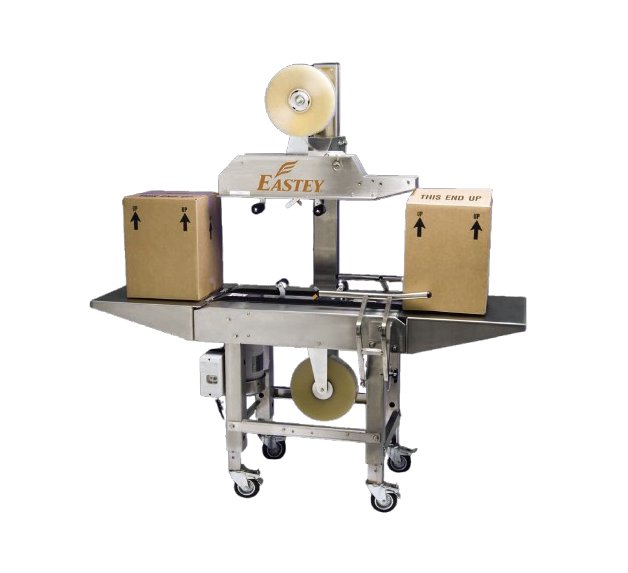

The Eastey BB-2/SS Stainless Bottom Belt Case Taper is expertly designed for industrial settings, delivering durability, versatility, and reliability. This cost-effective solution features a 12-gauge stainless steel construction, adjustable side rails, interchangeable tape cartridges, and a washdown motor, making it ideal for washdown environments. With a rugged bottom belt drive and innovative technology, the BB-2/SS ensures fast and efficient case sealing, accommodating box dimensions ranging from 4.5" to infinite length, 4.5" to 22.5" width, and 4" to 25.5" depth. Easy to integrate with ink jet printers, this machine offers plug-and-go operation, requiring no air, and minimal maintenance for seamless production.
Product Specifications
Box Specifications Maximum Box Depth
25.5 in
Box Specifications Maximum Box Length
Infinite
Box Specifications Maximum Box Width
22.5 in
Box Specifications Minimum Box Depth
4 in
Box Specifications Minimum Box Length
4.5 in
Box Specifications Minimum Box Width
4.5 in
Case Taping As Easy As 1 2 3 Case Taping As Easy As 1 2 3

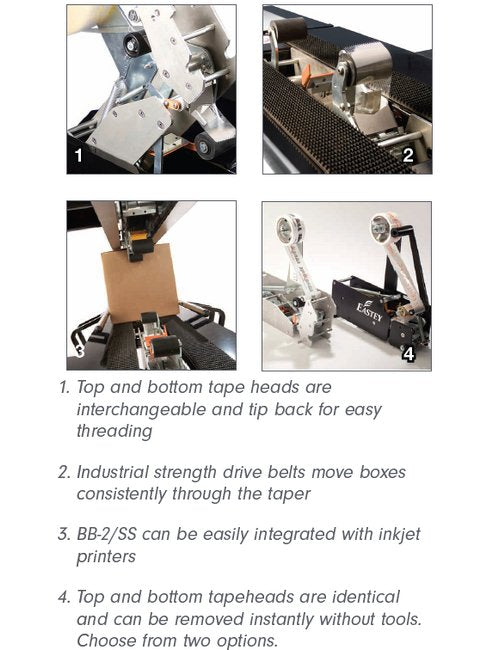

BB-2/SS top and bottom tape heads are interchangeable and tip back for easy threading. No air is required to run the BB-2/SS taping system so it can be placed anywhere in the factory. A safe single mast allows clear access to all components and adjusts for a variety of case sizes. The use of Eastey®'s BB-2/SS case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Electrical Requirements Alternating Current Ac Voltage
110 V
Electrical Requirements Current
10 A
Electrical Requirements Frequency
60 Hz
Features Features
Plug-in and go operation12 gauge stainless steelInterchangeable top and bottom tape cartridgesAdjustable side railsIndustrial strength drive beltsSafe single mast designEasy hand-tighten adjustmentsNo air requiredLow maintenanceSimple integration with ink jet printersWashdown motor and electronics1 pack table
Industrial Strength Operation Industrial Strength Operation
A washdown rated motor, with an IP65 rated switch, and industrial strength drive belts make BB-2/SS a workhorse ideal for food applications or other washdown environments. Each case taping machine is made from 12 gauge stainless steel to protect from outside chemical damage guaranteeing years of use while withstanding abusive conditions to provide high quality case sealing.
Innovative Technology Proven Reliability Innovative Technology P
BB-2/SS offers the durability, versatility and reliability that you have come to rely on from Eastey®. The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rollsCasters - Rugged wheels for transportation within plantFront and Rear Packing Table - Solid tables bolt before and/or after taping system to allow for case packingTop Squeezers - Designed to stabilize the box and push the top flaps together for easier taping
Taping Specifications Adjustable Conveyor Height
22.25 to 34.25 in
Taping Specifications Adjustable Side Rails
Palm grip knobs offer quick and simple adjustments
Taping Specifications Belt Speed
60 ft/min
Taping Specifications Machinery Makeup
Industrial strength 12 gauge stainless steel
Taping Specifications Sealer Type
Bottom belt, top and bottom case sealer
Taping Specifications Tape Speed
30 cases/per minute, depending on box size and operator efficiency
Technical Specs Air Requirements
None
Technical Specs Brands
Eastey®
Technical Specs Optional Tape Width
3 in
Technical Specs Pressure Sensitive Tape Width
2 in
Technical Specs Tape Cartridge
Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Roll Diameter
0 to 15 in
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
True Versatility For Your Needs True Versatility For Your Needs

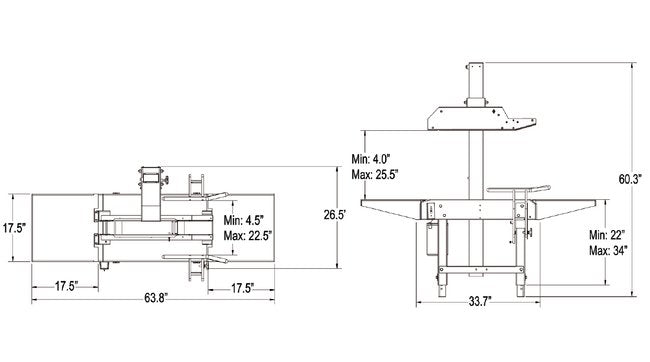

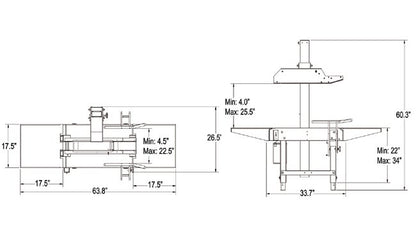

BB-2/SS offers fast and easy case changes with adjustable side rails and flexibility ranging from 4.5" to infinite box length. BB-2/SS is also able to seal cases ranging from 4.5" to 22.5" in width, as well as 4" to 25.5" in depth. Adjustments can be made on the fly with easy hand tighten knobs on a single mast design. A single drive motor and aggressive drive belts will move your boxes and stand up to your toughest challenges. BB-2/SS is also perfect for integration with ink jet printers where coding is required on boxes.
