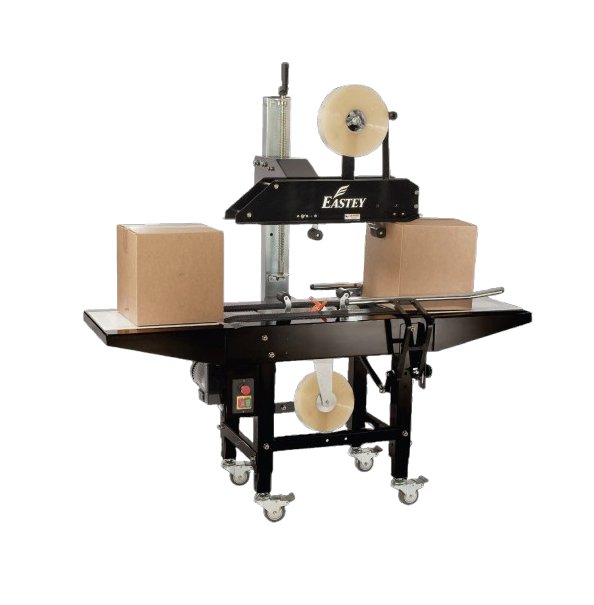

The Eastey Bottom Belt Case Tapers, featuring industrial strength 12 gauge steel construction, adjustable side rails, and interchangeable top and bottom tape cartridges, are designed for fast, reliable, and cost-effective case sealing. With a tape speed of 30 cases/min and the ability to handle box sizes ranging from 5" to 21" in width and 4" to 20.5" in depth, the BB-2 offers true versatility and efficient operation. Its rugged design, easy adjustments, and compatibility with ink jet printers make it a reliable solution for industrial packaging needs.
Product Specifications
Box Specifications Maximum Box Depth
20.5 in
Box Specifications Maximum Box Width
21 in
Box Specifications Minimum Box Depth
4 in
Box Specifications Minimum Box Length
5 in
Box Specifications Minimum Box Width
5 in
Case Taping As Easy As 1 2 3 Case Taping As Easy As 1 2 3

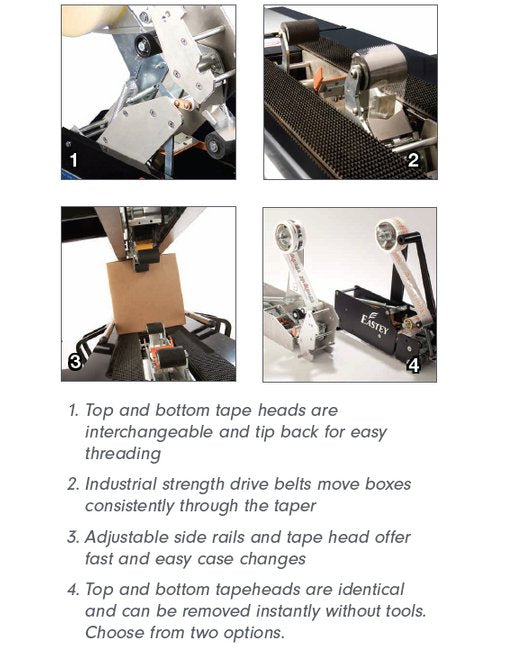

BB-2 top and bottom tape heads are interchangeable and tip back for easy threading. No air is required to run the BB-2 taping system so it can be placed anywhere in the factory. A safe single mast allows clear access to all components and adjusts for a variety of case sizes. The use of Eastey®'s BB-2 case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Plug-in and go operationPowder coated 12 gauge steelInterchangeable top and bottom tape cartridgesAdjustable side railsIndustrial strength drive beltsSafe single mast designEasy hand-tighten adjustmentsNo air requiredLow maintenanceSimple integration with ink jet printersIncludes 2 pack tables and casters
Industrial Strength Operation Industrial Strength Operation
A single drive motor and aggressive industrial strength drive belts make BB-2 a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that withstands even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use.
Innovative Technology Proven Reliability Innovative Technology P
BB-2 offers the durability, versatility and reliability that you have come to rely on from Eastey®. The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rollsTop Squeezers - Designed to stabilize the box and push the top flaps together for easier taping
Technical Specs Adjustable Conveyor Height
22.25 to 34.25 in
Technical Specs Adjustable Side Rails
Palm grip knobs offer quick and simple adjustments
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
60 ft/min
Technical Specs Brands
Eastey®
Technical Specs Casters
Rugged wheels for transportation within plant
Technical Specs Current
6 A
Technical Specs Frequency
60 Hz
Technical Specs Front And Rear Packing
Solid tables bolt before and/or after taping system to allow for case packing
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powdered coated for durability
Technical Specs Note For Tape Speed
Depending on box size and operator efficiency
Technical Specs Sealer Type
Bottom belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
30 cases/min
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
True Versatility For Your Needs True Versatility For Your Needs
BB-2 offers fast and easy case changes with adjustable side rails and flexibility ranging from 5" to infinite box length. BB-2 is also able to seal cases ranging from 5" to 21" in width, as well as 4" to 20.5" in depth. Adjustments can be made on the fly with easy hand tighten knobs on a single mast design. BB-2's open design is also perfect for integration with ink jet printers where coding is required on boxes.
