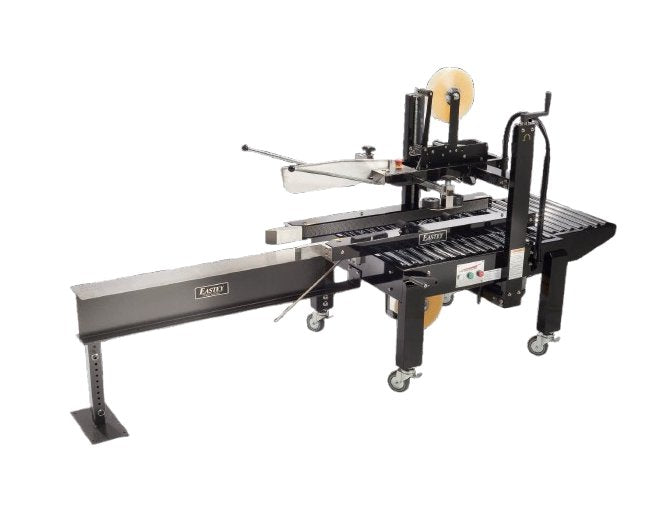

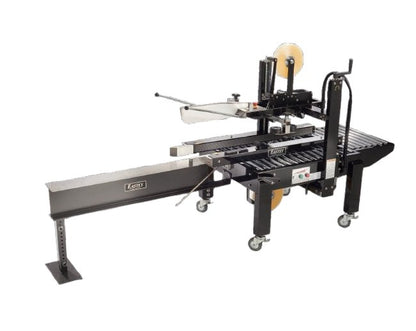

The Eastey Easy Packer Case Taping System is an industrial-grade solution for efficient case erecting, packing, and sealing. Designed with durability and ease of operation in mind, this system features a uniform side belt sealer, adjustable conveyor height, and a high-speed tape application capability. With CE approval, rugged industrial quality, and optional accessories for customization, the Easy Packer ensures fast and reliable case sealing while minimizing downtime and maintenance efforts.
Product Specifications
Convenience Convenience
These machines accept 2â wide pressure-sensitive tape as a standard, or can be ordered with 3â tape heads. The use of Eastey®'s Easy Packer case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Utilizes Eastey®'s Easy-Taper tape headAnvil packing station for easy case packingPlug-in and go operationPowder coated 12 gauge steelTop and bottom tape cartridgesIndustrial strength side beltsAdjustable leg extensionsFast and easy box size changesLow maintenanceAccommodates wide case rangeCasters for transportation within plant
Industrial Quality Industrial Quality
CE approved dual drive motors, aggressive industrial strength side belts and roller tables make Easy Packer a workhorse. Each machine is made from 12 gauge steel and will withstand the most rugged applications. The powder coated exterior protects the machine from abusive conditions and guarantees years of use.
Less Downtime Less Downtime
Easy Packer offers fast and easy case changes with adjustable side rails and flexibility for boxes 5â in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. Easy Packer utilizes Eastey®'s Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4.0â wide and as low as 4.0â tall.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rollsFront Packing Table - Roller table bolts before taping system to allow for case movement; replaces anvil packing stationRear Packing Table - Roller table bolts after taping system to allow for case movement
Packing And Sealing Made Easy Packing And Sealing Made Easy

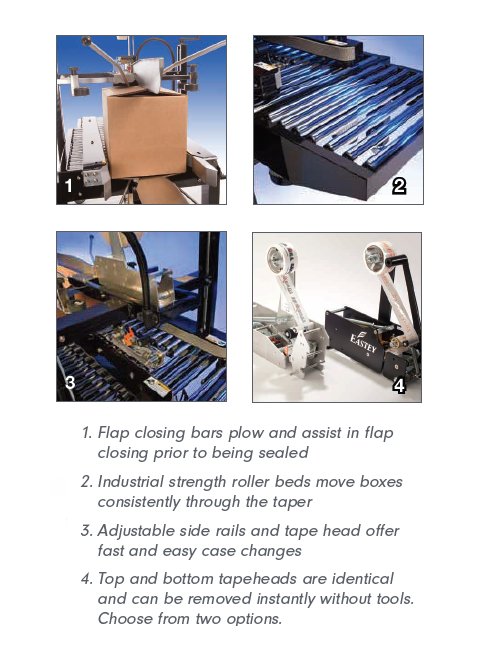

Designed with the customer in mind, the Easy Packer is supplied with extended side rails, flap closing bars, and a 48â anvil packing station (not shown) to assist with the packing and sealing process. Operation is simple: open the case and manually fold the bottom front and back minor flaps and place case on the anvil to be filled. Once filled, the operator pushes down and holds the top trailing minor flap while the box enters the machine to be sealed.

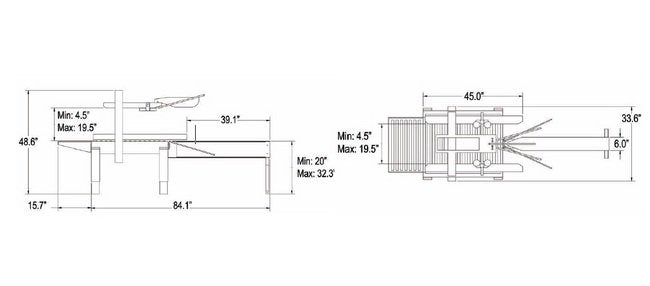

Technical Specs Adjustable Conveyor Height
20 to 32.3 in
Technical Specs Agency Certifications
European Conformity (CE)
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powdered coated for durability
Technical Specs Maximum Box Depth
19.5 in
Technical Specs Maximum Box Width
19.5 in
Technical Specs Minimum Box Depth
4 in
Technical Specs Minimum Box Length
5 in
Technical Specs Minimum Box Width
4 in
Technical Specs Note For Tape Speed
Depending on box size and operator efficiency
Technical Specs Sealer Type
Uniform side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
20 cases/min
Technical Specs Voltage
110 V
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
